FIVC REGULATING VALVE
FSB_O25_GF21 – Bronze – PN 25 – Fixed Orifice – WRAS – ISO 228
Regulating valves ensure efficient and regulated flow distribution to all heating-/cooling units in the circuit. By balancing the system, the water flow is distributed equally to each unit and floor in a controlled amount, eliminating unnecessary energy consumption and ensuring an optimized room temperature throughout the building.
This fixed orifice regulating valve is suitable for drinking water and is WRAS-approved.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent flow regulation and shut-off
- Efficient flow distribution - system balance
- Accurate flow measurement
- Eliminating unnecessary energy consumption
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Manual operated ON/OFF and flow measurement via pressure probes.
Orifice: Fixed
Threading: ISO 228
Standard: BS 7350
USP: Pre-setting feature. WRAS approval. Contributes to energy and cost savings. Accurate measurement.
MAIN MATERIALS
Body: Bronze CC491K
Bonnet: DZR Brass CW602N
Disc: DZR Brass CW602N
Stem: DZR Brass CW602N
Handwheel: PA, Black coated
FIELD OF APPLICATION
Max. temperature: 120 °C
Max. working pressure: 25 bar
Media: Drinking water
DECLARATION
The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
WRAS approval.

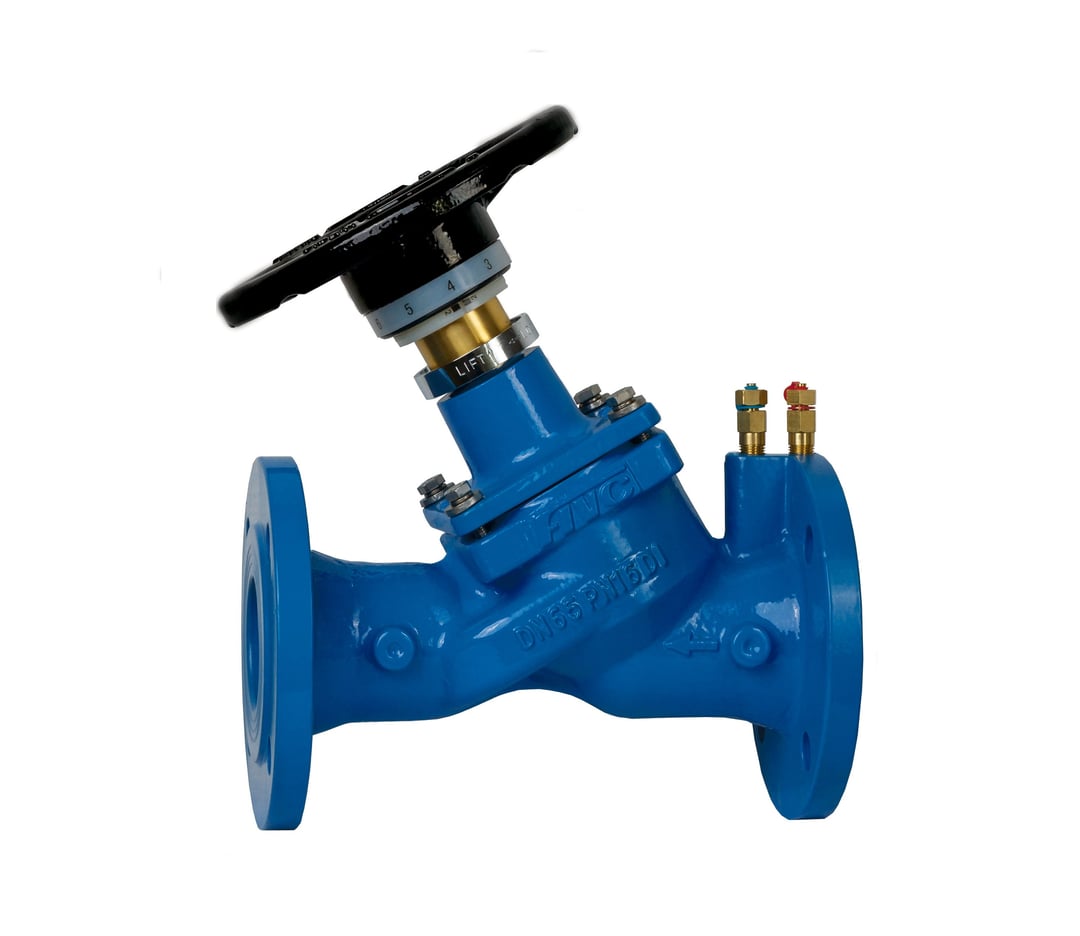

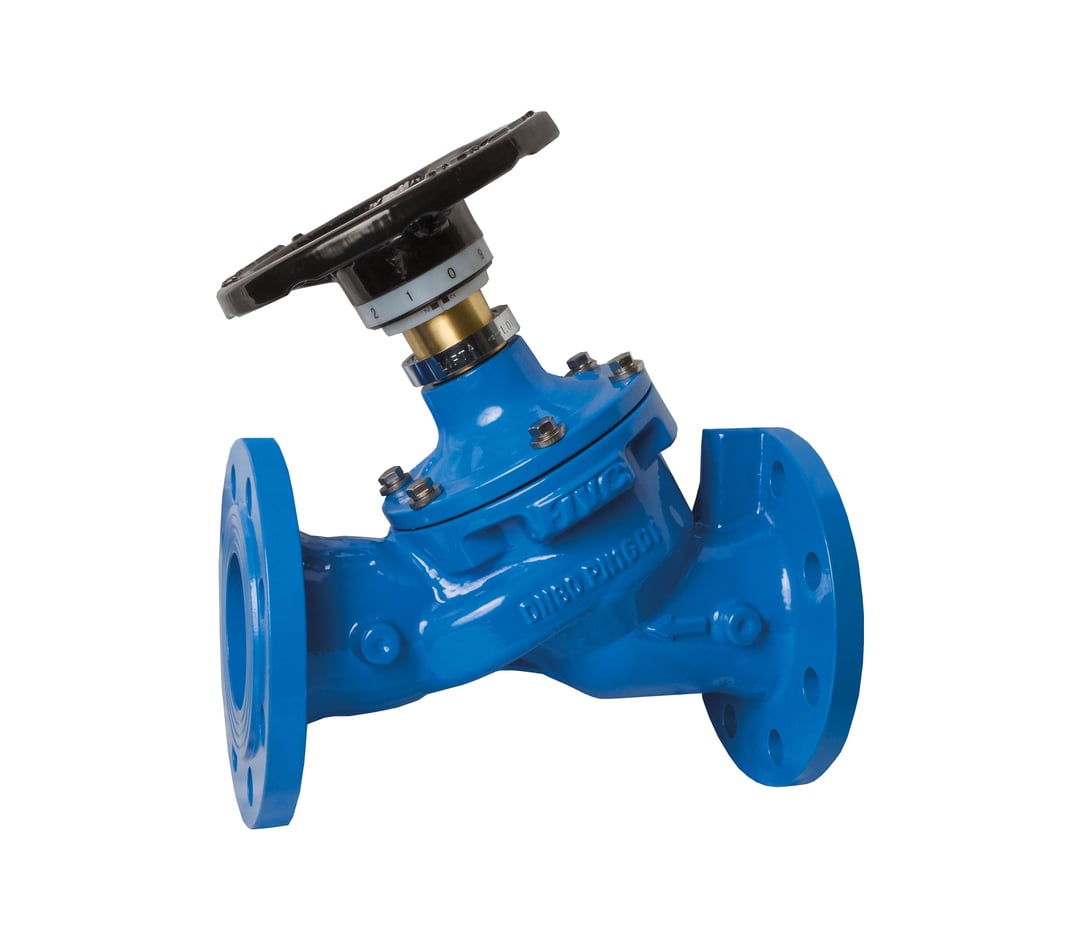

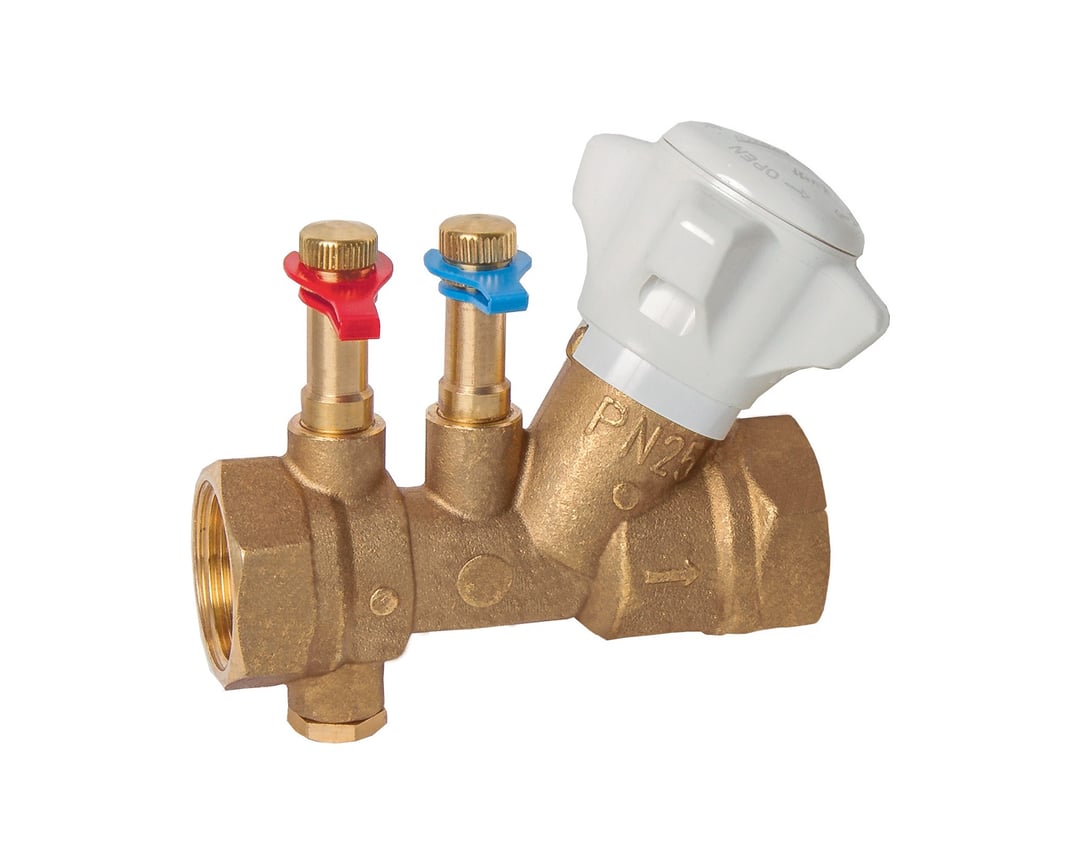

RELATED PRODUCTS
