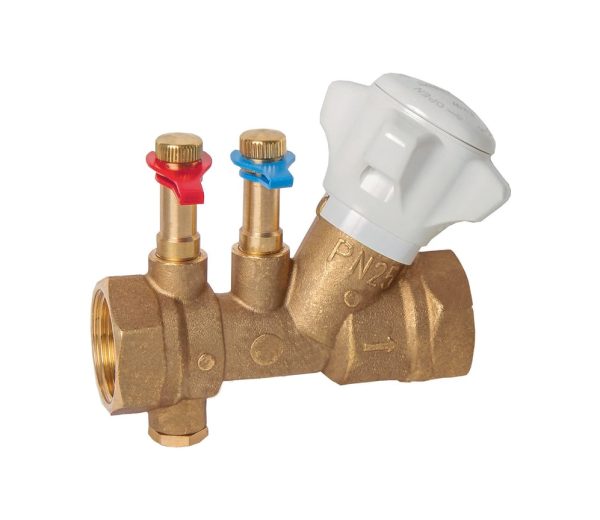

FIVC REGULATING VALVE

FSB_D25_GF01 – DZR Brass – PN 25 – Fixed Orifice – ISO 228

FIVC Regulating Valves are designed to be installed in pipelines for system balancing providing flow regulation and measurement.

Regulating valves ensure efficient and regulated flow distribution to all heating-/cooling units in the circuit. By balancing the system, the water flow is distributed equally to each unit and floor in a controlled amount, eliminating unnecessary energy consumption and ensuring an optimized room temperature throughout the building.

This fixed orifice regulating valve is suitable for water.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Manual operated ON/OFF and flow measurement via pressure probes.
Orifice: Fixed
Threading: ISO 228
USP: System balance. Pre-setting feature. Sensor Holder. Contributes to energy and cost savings. Accurate measurement.

MAIN MATERIALS

Body: DZR Brass CW602N
Bonnet: DZR Brass CW602N
Disc: DZR Brass CW602N
Stem: DZR Brass CW602N
Handwheel: ABS Plastic

FIELD OF APPLICATION

Temperature range: -5 to 110 °C
Max. working pressure: 25 bar
Media: Water

DECLARATION

The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
