FIVC SUCTION DIFFUSER

FSD_C16_212 – Grey Cast Iron body – PN 16 – EN 1092-2

The FIVC Suction Diffuser is designed as a 3-in-1 valve to be installed in pipelines to provide multiple functionalities, act, and can replace an elbow, in-line strainer, variable diameter, and rectifying valve.

This valve is suitable for Water, Oil, and Gas.
FSD65x65C16212-2
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

PDF-file-icon.svg-1-244x300
  • 3-in-1 valve
  • Reducing velocity and increasing the static pressure
  • Elimination of cavitation and impurities
  • Maximizes pump efficiency
  • Faster and simpler installation
  • Space- and economic savings
  • Integrated built-in drains
Asset-7
CUSTOMIZED REQUEST?

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7
Feature: Filtration, increasing the static pressure via four flow straightening vanes. Space-saver.
Drilling: EN 1092-2 PN 16
Pressure test standard: BS EN 12266-1​
Nominal diameter: 50×40 to 500×500
USP: Three-in-one: Functions as an elbow, in-line strainer, and a rectifying valve. Integrated drain. Elimination of cavitation and impurities. Cost-, space-, and time-efficient.

MAIN MATERIALS

Asset-7

Body: Grey Cast Iron
Cover: Grey Cast Iron
Mesh screen: Stainless Steel
Sealing part: Rubber EPDM

FIELD OF APPLICATION

Asset-7

Temperature range: -20 to 120 °C
Max. working pressure: 16 bar
Media: Water, Oil, and Gas

DECLARATION

Asset-7
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014.
RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7
DATASHEET
OMI MANUAL
Industrial-water

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request. For the complete product overview please refer to Products
FSD_N25_212
Ductile Iron body – PN 25 – EN 1092-2
PDF

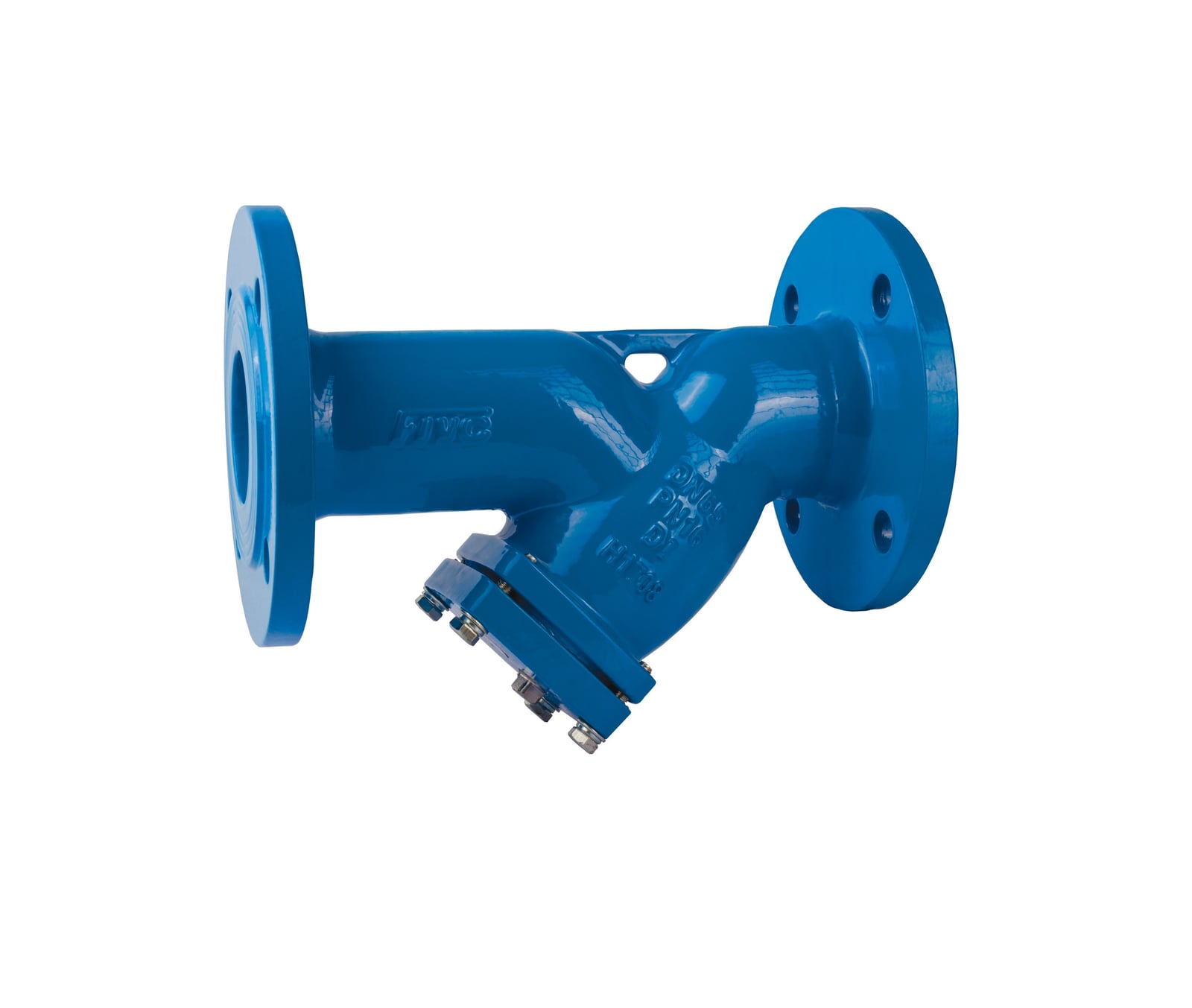

FYS_N16_230
Ductile Iron body – PN 16 – Bolted – EN 1092-2
PDF

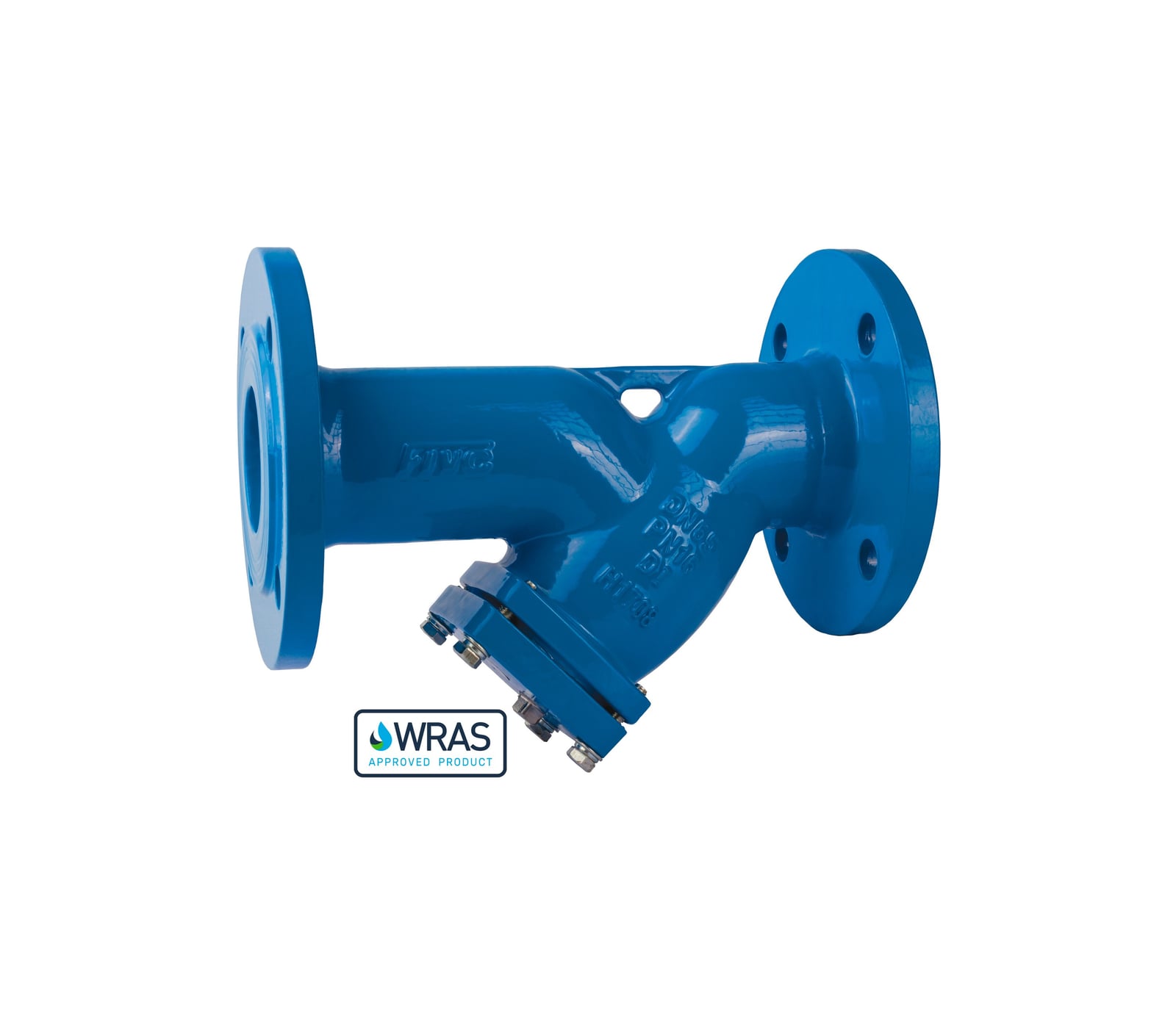

FYS_N16_231
Ductile Iron body – PN 16 – WRAS – EN 1092-2
PDF
