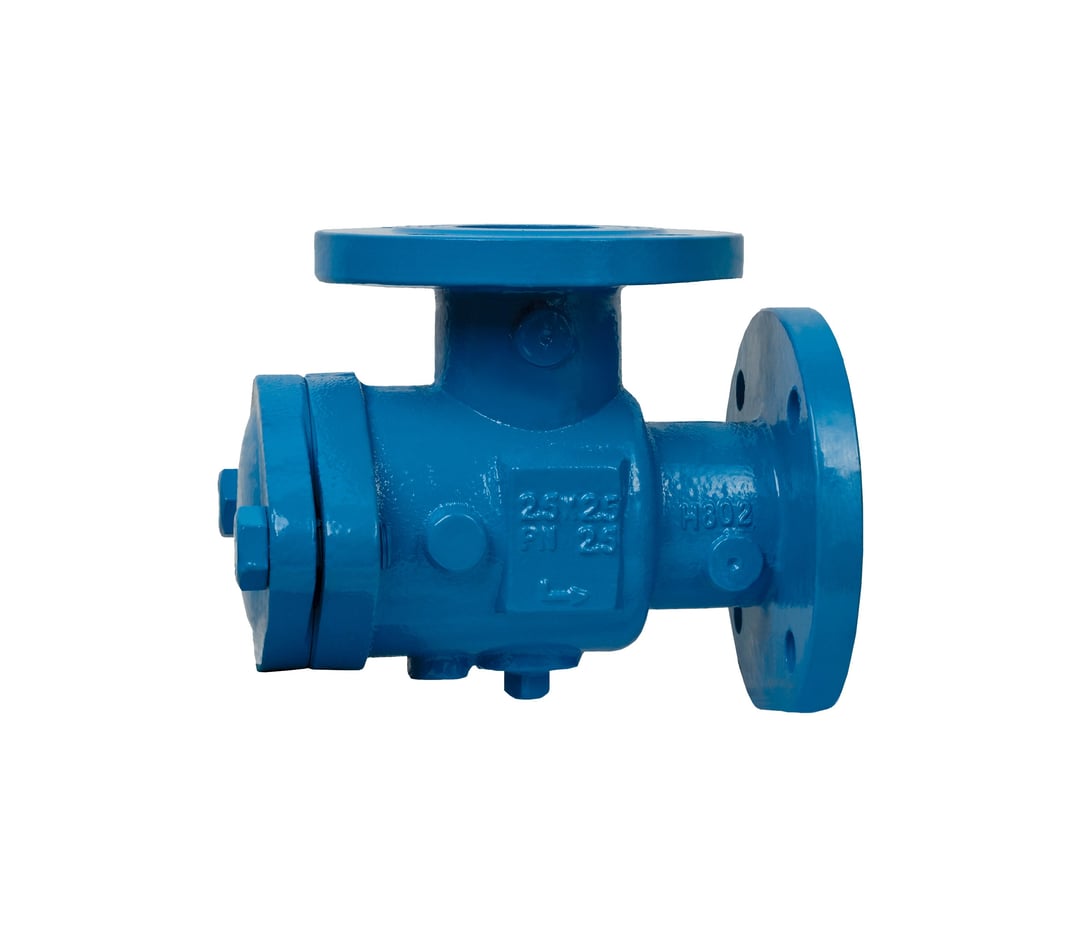

The FIVC Suction Diffuser is designed as a 3-in-1 valve to be installed in pipelines to provide multiple functionalities, act, and can replace an elbow, in-line strainer, variable diameter, and rectifying valve.
This valve is suitable for Water, Oil, and Gas.
Function and benefits
QUICK DATASHEET DOWNLOAD
Feature: Filtration, increasing the static pressure via four flow straightening vanes. Space-saver.
Drilling: EN 1092-2 PN 25
Pressure test standard: BS EN 12266-1
Nominal diameter: 50×40 to 500×500
USP: 3-in-1 valve: Functions as an elbow, in-line strainer, and a rectifying valve. Integrated drain. Elimination of cavitation and impurities. Cost-, space-, and time-efficient.
Body: Ductile Iron
Cover: Grey Cast Iron
Mesh screen: Stainless Steel
Sealing part: Rubber EPDM
Temperature range: -20 to 120 °C
Max. working pressure: 25 bar
Media: Water, Oil, and Gas
Size, material, approval, pressure rate, etc. are available upon request.
