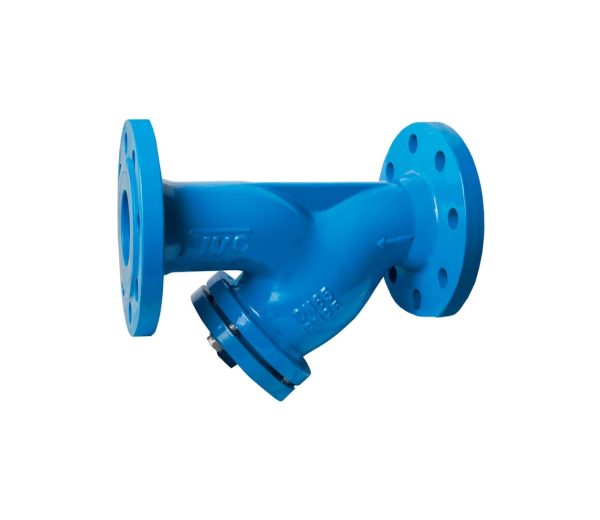

FIVC Y-STRAINER

FYS_N25_211 – Ductile Iron – PN 25 – EN 1092-2

The FIVC Strainer is designed to be installed in pipelines to collect and prevent solid impurities from entering the system. By separating solids in the fluids and depositing residues in the passage, they prevent solid impurities from entering the pipeline, resulting in increased pressure losses and oxidation. The collected debris can thereby be disposed of, and the filter can be cleaned without removing the strainer from the line.

Strainers are usually installed prior to the isolation valve, check valve, and pressure reducer at the entrance to the water supply system. It may also be used in closed heating circuits at the entrance to the heat generator to protect the exchanger from impurities arising from the system.

This Y-Strainer is suitable for Water, Oil, and Gas.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Self-actuating, except for regular screen cleaning.

Screen type: Perforated

Flange: EN 1092-2 PN 16

Dimensions: Face-to-Face acc. to EN 558 (series 1) Closing tightness: BS EN 12266

USP: Cleaning without disassembling.

Excellent system protector. Long lifetime.

MAIN MATERIALS

Body: Ductile Iron

Cover: Ductile Iron

Screen: Stainless Steel

Gasket: Graphite+Steel

FIELD OF APPLICATION

Temperature range: -10 to 200 °C

Max. working pressure: 25 bar

Opening area in %:

DN 65-125: 28.3

DN 150-350: 33.6

DN 400-600: 38.6

Media: Water, Oil, and Gas.

DECLARATION

The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, Module G, dated 15/05/2014 and is CE marked.

FIVC Y-STRAINER

FYS_N25_211 – Ductile Iron – PN 25 – EN 1092-2

In short terms

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

MAIN MATERIALS

FIELD OF APPLICATION

DECLARATION

DOWNLOADS

RELATED PRODUCTS

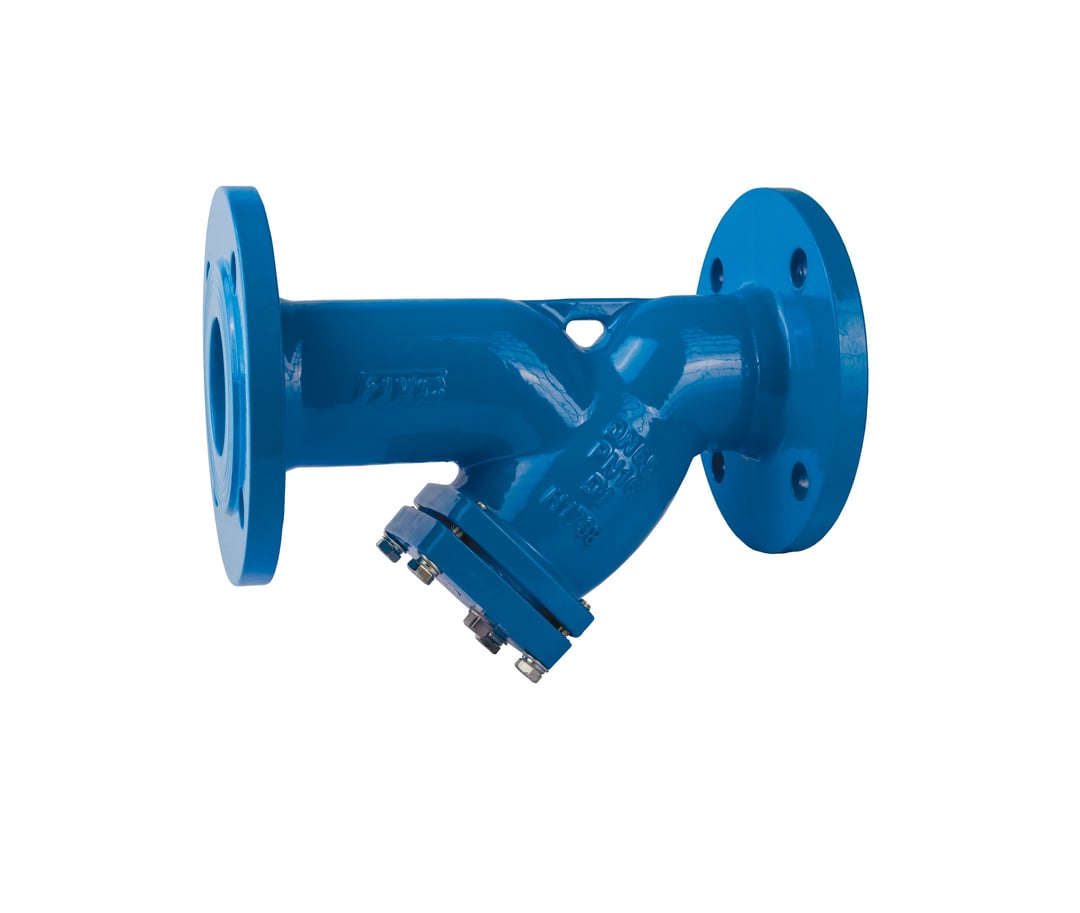

FYS_N16_230

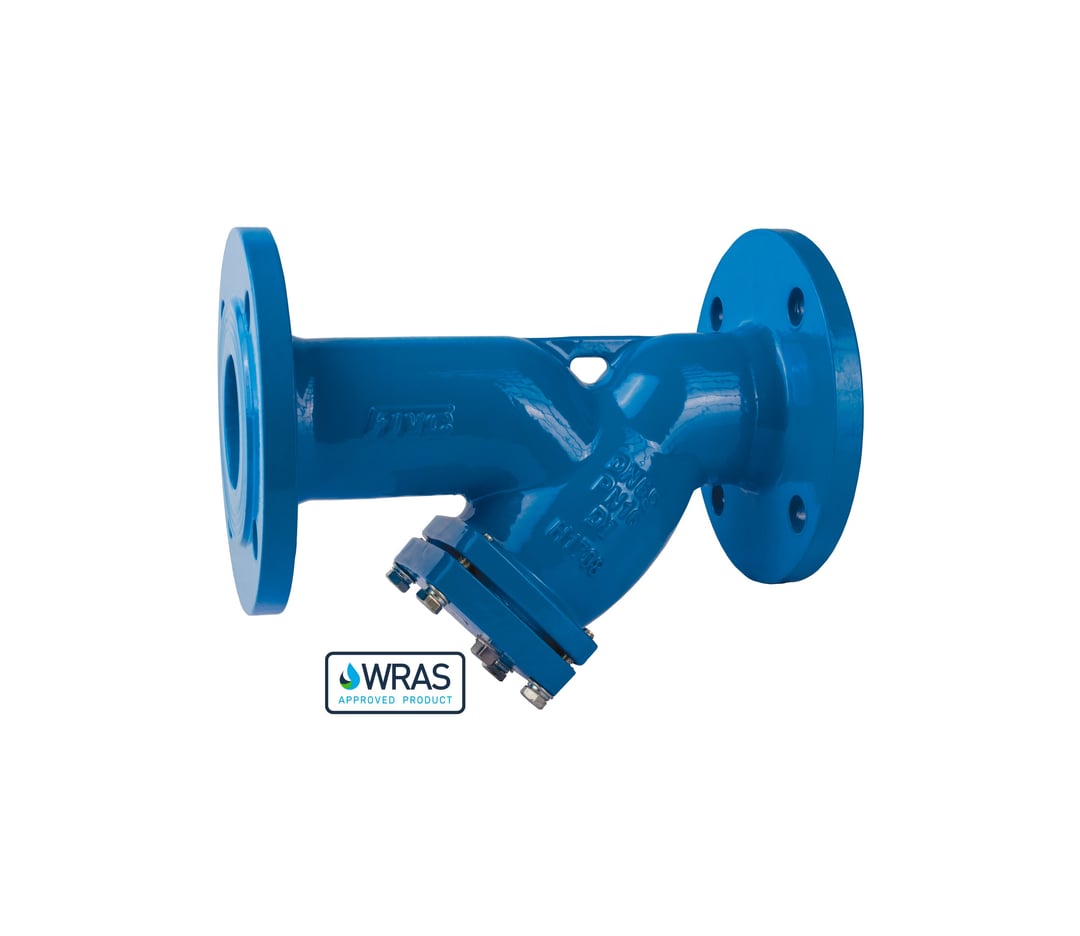

FYS_N16_231

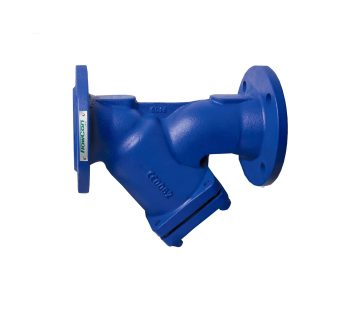

FYS_N25_B52
