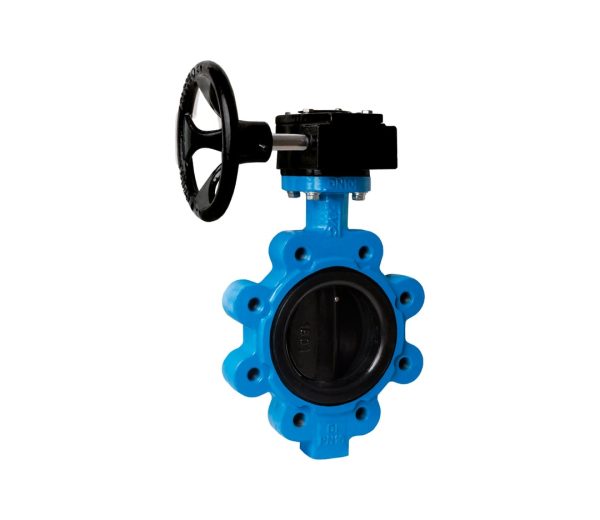

FIVC LUGGED BUTTERFLY VALVE

LUGN3_MDVEPV_1623 – Ductile Iron body and disc – PN 16 – Lugged – Gearbox – Vulcanized – w/Pin – EN 1092-2

FIVC Lugged Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.

This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges. Butterfly valves with lug-style flanges and vulcanized seats can be used for end-of-line services as well as center-services.

It operates through its high-quality gearbox providing comfortable and smooth flow-regulating and isolating.

This valve is suitable for water.
LUGN3-MDVEPV-1623-V2-4
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

PDF-file-icon.svg-1-244x300
  • Excellent control performance with bubble-tightness
  • Center-service
  • Cost-efficient
  • Small size and light in weight
  • Small driving torque
  • Easy operation, and fast-acting
Asset-7
CUSTOMIZED REQUEST?

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 431
Thread: Metric
Seat: Vulcanized
Construction: With pin
External operator: Gearbox
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558 (series 20)
Inspection test: BS EN 12266-1
USP: Dead-end/Center service. Bubble tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.

MAIN MATERIALS

Asset-7

Body: Ductile Iron
Disc: Ductile Iron
Pin: Stainless Steel
Stem: Stainless Steel
Seat: Vulcanized EPDM
Gearbox: Ductile Iron
Coating: RAL 5015 (thickness 250 microns)

FIELD OF APPLICATION

Asset-7

Temperature range: -15 to 120° C
Max. working pressure: 16 bar
Media: Water

DECLARATION

Asset-7
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
