FIVC LUGGED BUTTERFLY VALVE
LUGN3_MNENR_1603 – Ductile Iron body and disc – PN 16 – Lugged – Hand lever – Replaceable – Pinless – EN 1092-2
This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges.

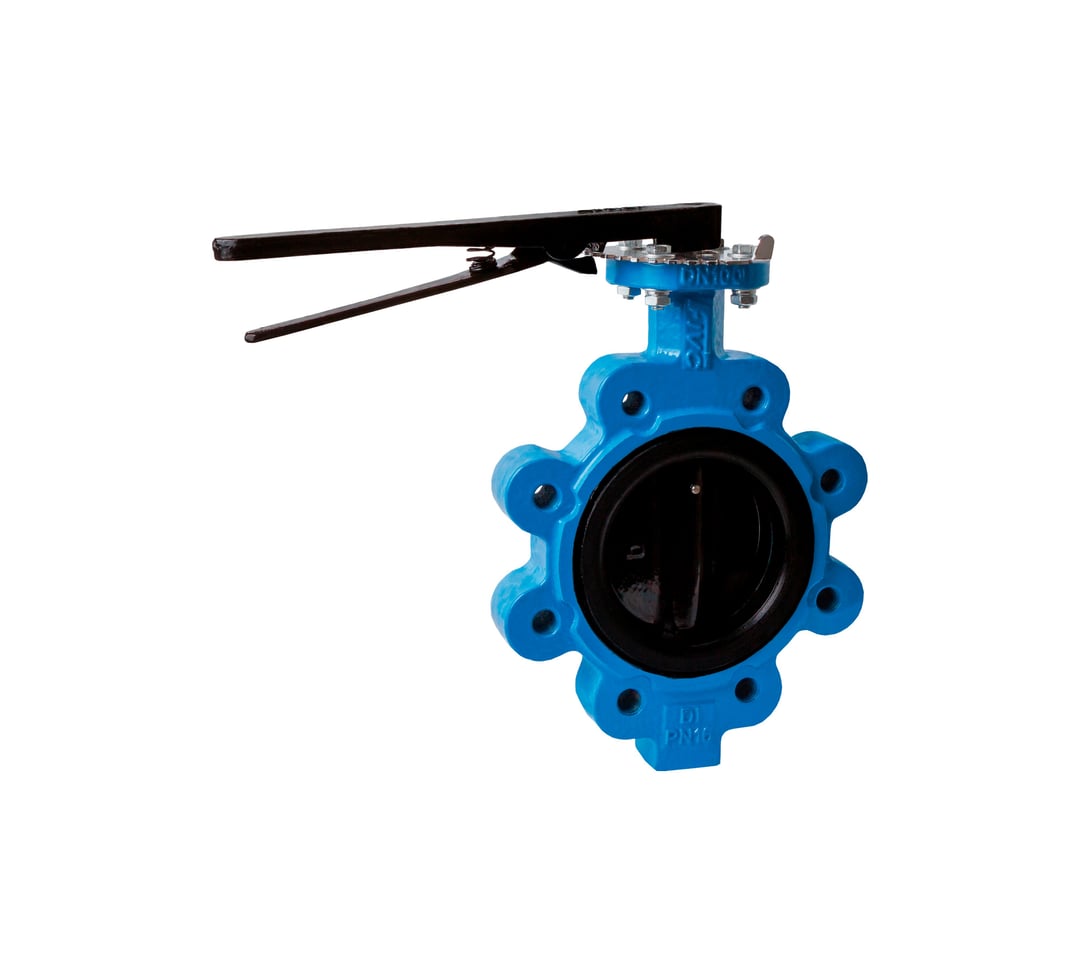

It operates through its robust and comfortable 15° notch hand lever that provides 7 to 10 lock positions.
This valve is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- Cost-efficient
- Small size and light in weight
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 420
Thread: Metric
Seat: Replaceable
Construction: Pinless
External operator: 15° notch hand lever with 7-10 lock positions.
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20) DIN 3202 T3 K1 – ISO 5752 T5 API 609 BS 5155 series (except DN 350)
Top flange acc. to ISO 5211/NFE 29-402
Tests: Hydraulic test acc. to 12266/ISO 5208
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Ductile Iron
Stem: Stainless Steel
Seat: Replaceable EPDM
Hand lever: Malleable Iron
Coating: Epoxy
FIELD OF APPLICATION
Temperature range: -20 to 110° C
Max. working pressure: 16 bar
Media: Water
