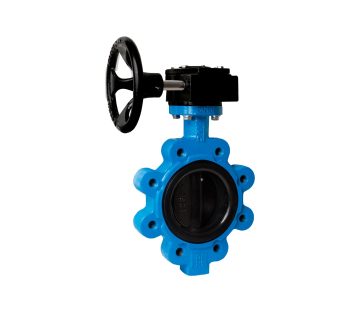

FIVC LUGGED BUTTERFLY VALVE

LUGN3_MDVENR_1603 – Ductile Iron body and disc – PN 16 – Lugged – Gearbox – Replaceable – Pinless – EN 1092-2

FIVC Lugged Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.

This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges.

It operates through its high-quality gearbox providing comfortable and smooth flow-regulating and isolating.

This valve is suitable for water.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 420
Thread: Metric
Seat: Replaceable
Construction: Pinless
External operator: Gearbox
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20) DIN 3202 T3 K1 – ISO 5752 T5 API 609 BS 5155 series (except DN 350)
Top flange: ISO 5211/NFE 29-402
Tests: Hydraulic test acc. to 12266/ISO 5208
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.

MAIN MATERIALS

Body: Ductile Iron
Disc: Ductile Iron
Stem: Stainless Steel
Seat: Replaceable EPDM
Gearbox: Ductile Iron
Coating: Epoxy

FIELD OF APPLICATION

Temperature range: -20 to 110° C
Max. working pressure: 16 bar
Media: Water

DECLARATION

The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
