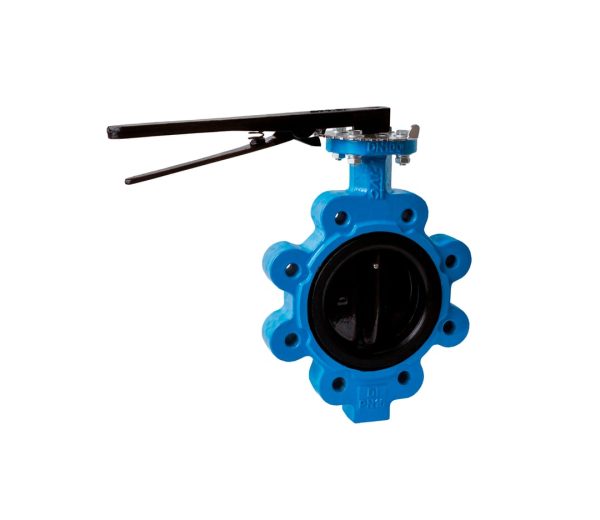

FIVC LUGGED BUTTERFLY VALVE
LUGN3_MNEPR_1623 – Ductile Iron body and disc – PN 16 – Lugged – Hand lever – Replaceable – w/Pin – EN 1092-2
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- Cost-efficient
- Small size and light in weight
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 431
Thread: Metric
Seat: Replaceable
Construction: With pin
External operator: 15° notch hand lever with 7-10 lock positions.
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558 (series 20)
Inspection test: BS EN 12266-1
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Ductile Iron
Pin: Stainless Steel
Stem: Stainless Steel
Seat: Replaceable EPDM
Hand lever: Malleable Iron
Coating: RAL 5015 (thickness 250 microns)
FIELD OF APPLICATION
Temperature range: -15 to 120° C
Max. working pressure: 16 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.

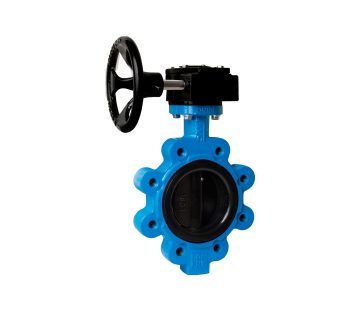

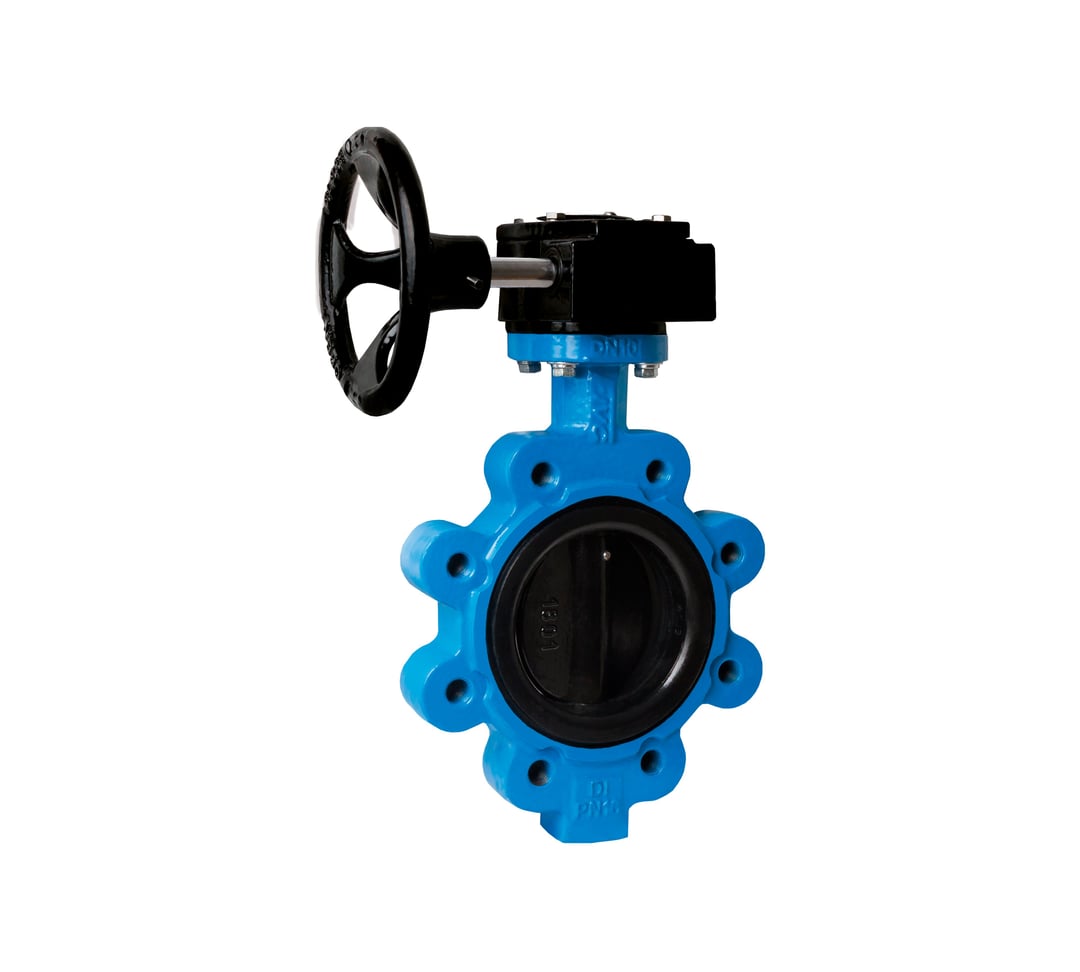

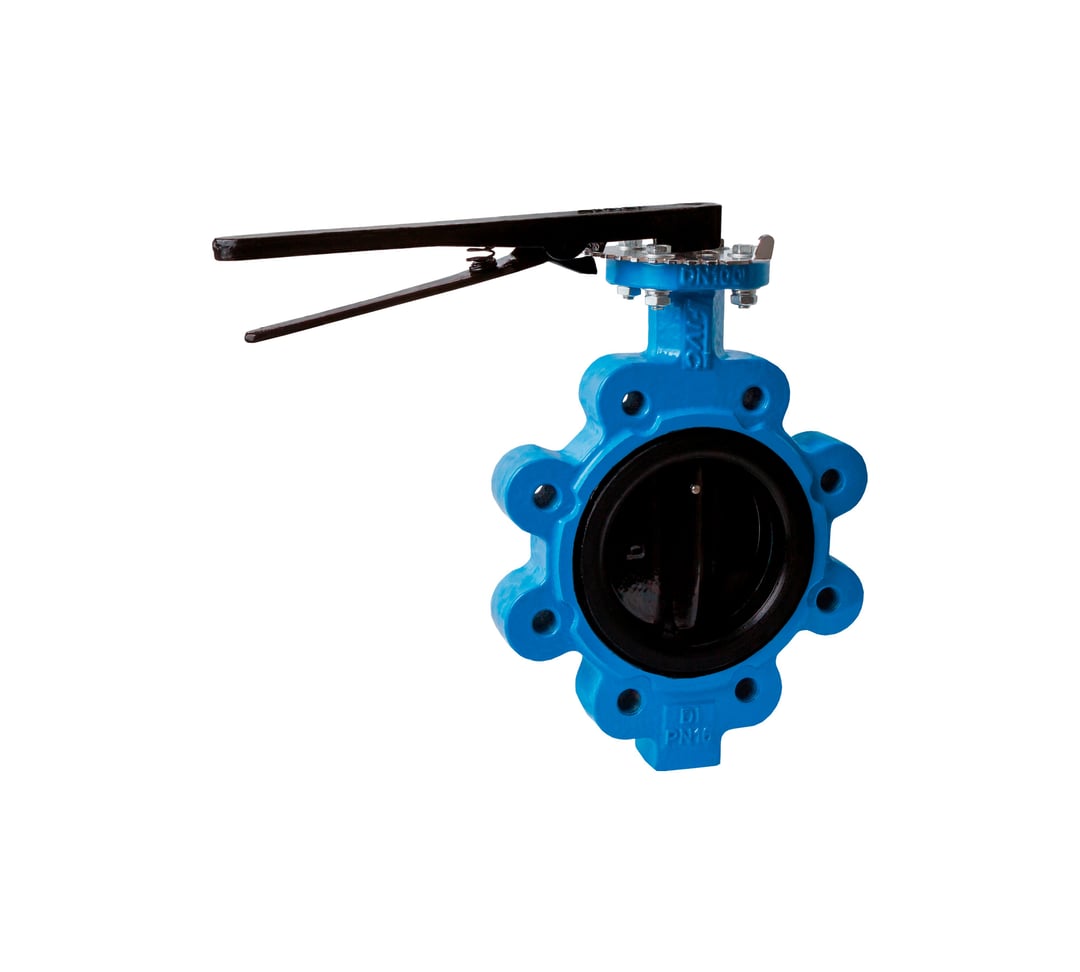

RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
