FIVC LUGGED BUTTERFLY VALVE

LUGN3_MNEPR_1683 – Ductile Iron body and disc – PN 16 – Lugged – Hand lever – Replaceable – w/Pin – WRAS – EN 1092-2

FIVC Lugged Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.
This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges.
It operates through its robust and comfortable 15° notch hand lever that provides 7 to 10 lock positions.
This valve is suitable for drinking water and is WRAS-approved.
lugn3mnepr1683
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 410
Thread: Metric
Seat: Replaceable
Construction: With pin
External operator: 15° notch hand lever with 7-10 lock positions.
Standard: BS EN 593
USP: WRAS-approved. Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.

MAIN MATERIALS

Asset-7

Body: Ductile Iron
Disc: Ductile Iron
Pin: Stainless Steel
Stem: Stainless Steel
Seat: Replaceable EPDM
Hand lever: Malleable Iron
Coating: Epoxy

FIELD OF APPLICATION

Asset-7

Temperature range: -15 to 85° C
Max. working pressure: 16 bar
Media: Water

DECLARATION

Asset-7
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7
Cooling-system
Heating
HVAC

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request. For the complete product overview please refer to Products

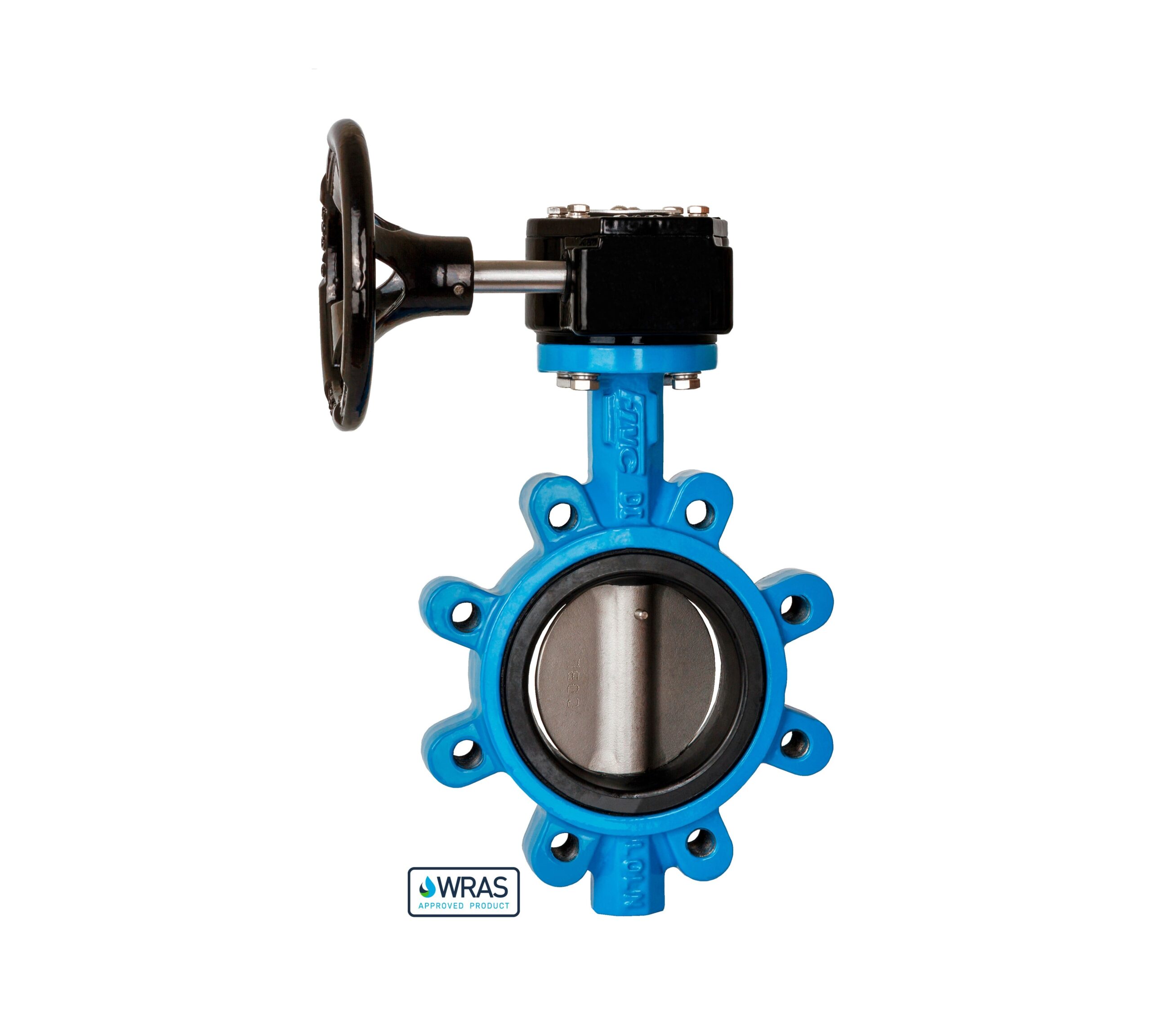

Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Gearbox – Replaceable – w/Pin – WRAS – EN 1092-2

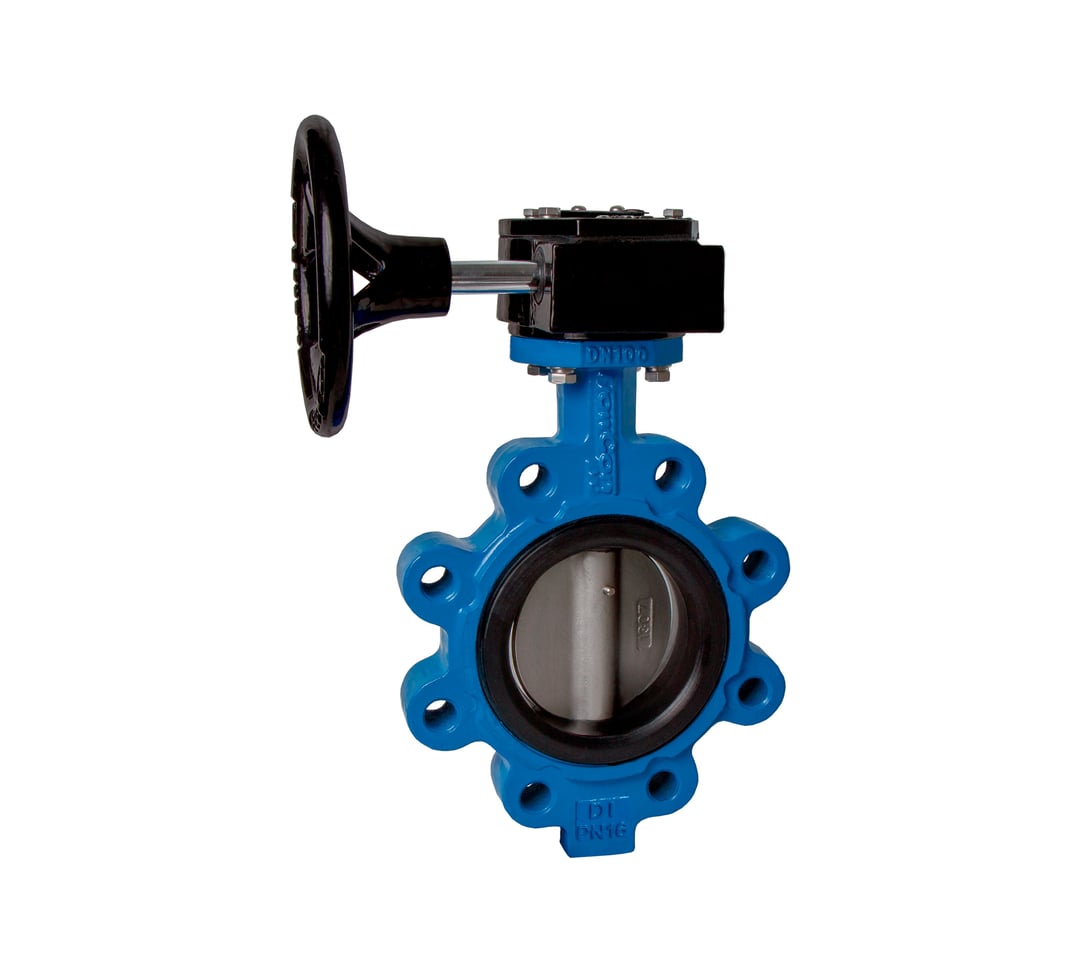

Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Hand lever – Vulcanized – w/Pin – EN 1092-2
