LUGN5_MNENV_1623 - FlowCon IVC

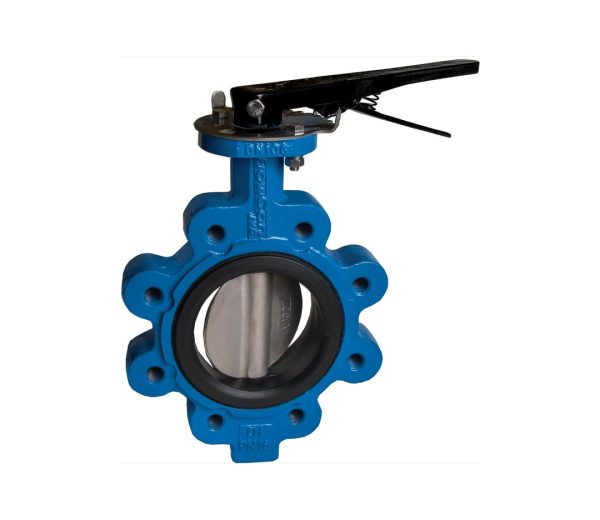

FIVC LUGGED BUTTERFLY VALVE

LUGN5_MNENV_1623 – Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Hand lever – Vulcanized – Pinless – EN 1092-2

FIVC Lugged Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.

This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges. Butterfly valves with lug-style flanges and vulcanized seats can be used for end-of-line services as well as center-services.

It operates through its robust and comfortable 15° notch hand lever that provides 7 to 10 lock positions.

This valve is suitable for water.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 431
Thread: Metric
Seat: Vulcanized
Construction: Pinless
External operator: 15° notch hand lever with 7-10 lock positions.
Standard: BS EN 593
Dimensions: Face-to-Face acc. to BS EN 558 (series 20)
Tests: Inspection test acc. to BS EN 12266-1
USP: Dead-end/Center service. Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.

MAIN MATERIALS

Body: Ductile Iron
Disc: Stainless Steel
Stem: Stainless Steel
Seat: Vulcanized EPDM
Hand lever: Malleable Iron
Coating: RAL 5015 (Thickness 250 microns)
