FIVC MOTORIZED WAFER BUTTERFLY VALVE
WAFN3_MSEENR_1601JJ – Ductile Iron body and disc – PN 16 – Wafer – J+J actuator – Replaceable – Pinless – EN 1092-2
This valve is constructed with four holes and is to be installed between two flanges in the pipeline. Please note that it is not suitable for dead-end services.
It operates through its high-quality actuator from JJ BCN INTERNACIONAL and provides fast and reliable flow-regulating and isolating.
This valve is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- Cost-efficient
- Small size and light in weight
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Wafer
Drilling: EN 1092-2
Shaft: SS AISI 420
Seat: Replaceable
Construction: Pinless
External operator: Electrical actuator from JJ BCN INTERNACIONAL
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20)
DIN 3202 T3 K1 – ISO 5752 T5 API 609 BS 5155 series (except DN 350)
Top flange acc. to ISO 5211/NFE 29-402
Tests: Hydraulic test acc. to 12266/ISO 5208
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Ductile Iron
Stem: Stainless Steel
Seat: Replaceable EPDM
Electrical actuator: Ductile Iron
Coating: Epoxy
FIELD OF APPLICATION
Temperature range: -20 to 110°C
Max. working pressure: 16 bar
Media: Water
DECLARATION
RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

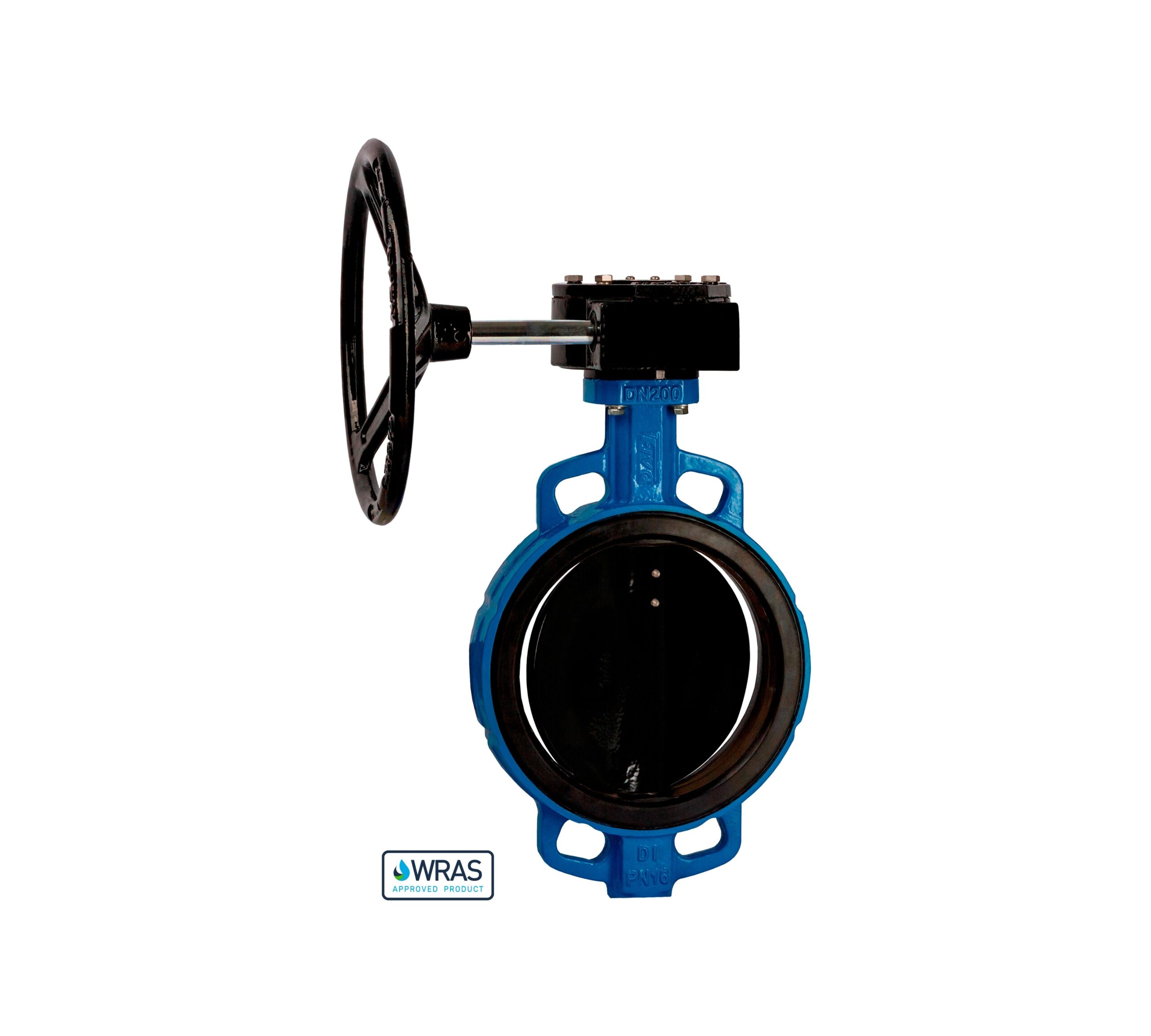

Ductile Iron body and disc – PN 16 – Wafer – Gearbox – Replaceable – w/Pin – WRAS – EN 1092-2
