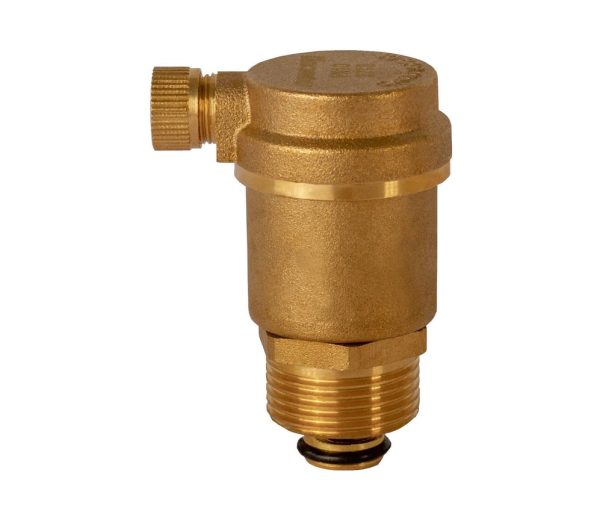

FIVC AIR VENT
FAV_B10_21 – Brass – PN 10 – Single Action – ISO 228
The FIVC Air Vent is designed as a single action valve with a small orifice to release low volumes of air when the line is under pressure.
This air vent is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Efficient flow energy transfer
- Minimum friction loss
- Eliminates air pockets
- Durable and reliable
- Reduces the water hammer incidents
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Self-actuating
Function: Single action
Threading: ISO 228
USP: Flow efficiency, headloss- and water hammer minimization.
MAIN MATERIALS
Body: Brass CW614N
Disc spring: Stainless Steel
O-Ring: NBR
Internal float: Polythene
Stem: Brass CW614N
Gasket: NBR
FIELD OF APPLICATION
Max. temperature: 70 °C
Max. working pressure: 10 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products
