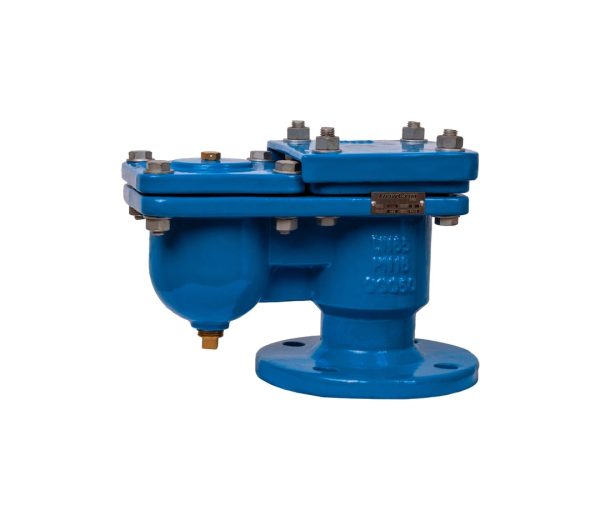

FIVC AIR VENT

FAI_N16_BT230 – Ductile Iron – PN 16 – Triple action – EN 1092-2

The FIVC Air Vent is designed as a triple-action valve to discharge large volumes of air during the filling and/or to admit air into the system during system drainage, valve or pump shut-off, or at water column separation. Further, the integrated orifice releases large volumes of air at high flow rates when the line is under pressure.

This air vent is suitable for water.

FAI-N16-BT230-5
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

PDF-file-icon.svg-1-244x300
  • Efficient flow energy transfer
  • Three-action valve
  • Eliminates air pockets
  • Durable and reliable
  • Reduces the water hammer incidents
Asset-7
CUSTOMIZED REQUEST?

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Self-actuating
Function: Triple-action
Flange: EN 1092-2
Standard: JKR 20200-0043-99
USP: Triple-action valve. Improves flow efficiency. Headloss- and water hammer minimization.

MAIN MATERIALS

Asset-7

Body: Ductile Iron
Float ball: ABS plastic
Gasket: EPDM
Dust cap: Ductile Iron
Ball seal large orifice: EPDM
Screw plug: Brass

FIELD OF APPLICATION

Asset-7

Max. temperature: 100 °C
Max. working pressure: 16 bar
Media: Water

DECLARATION

Asset-7
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, Schedule 4, Module H, dated 15/05/2014, and is CE marked.
RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7
DATASHEET
OMI MANUAL

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

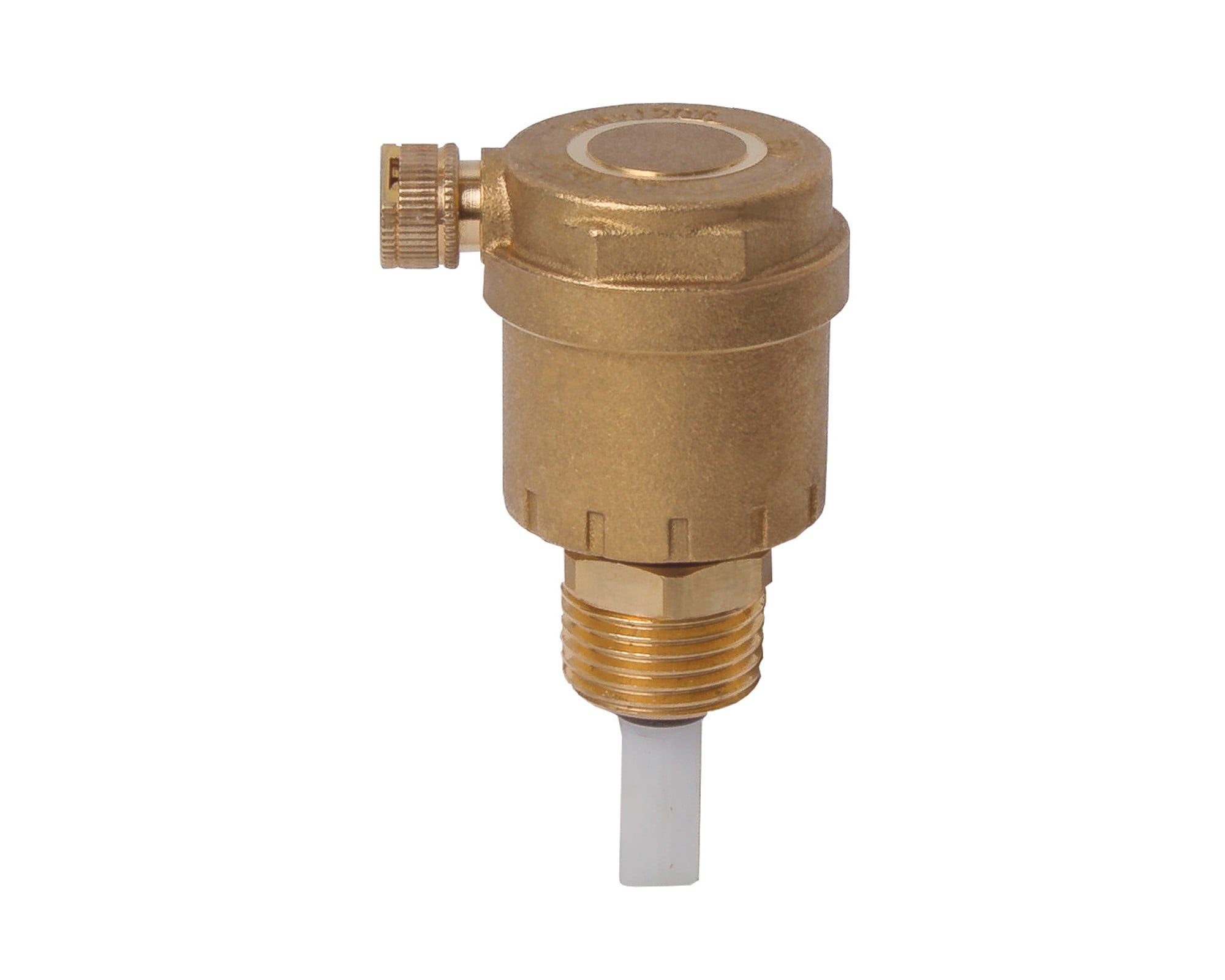

FAV_B7
Brass – PN 7 – Single action – ISO 228
PDF

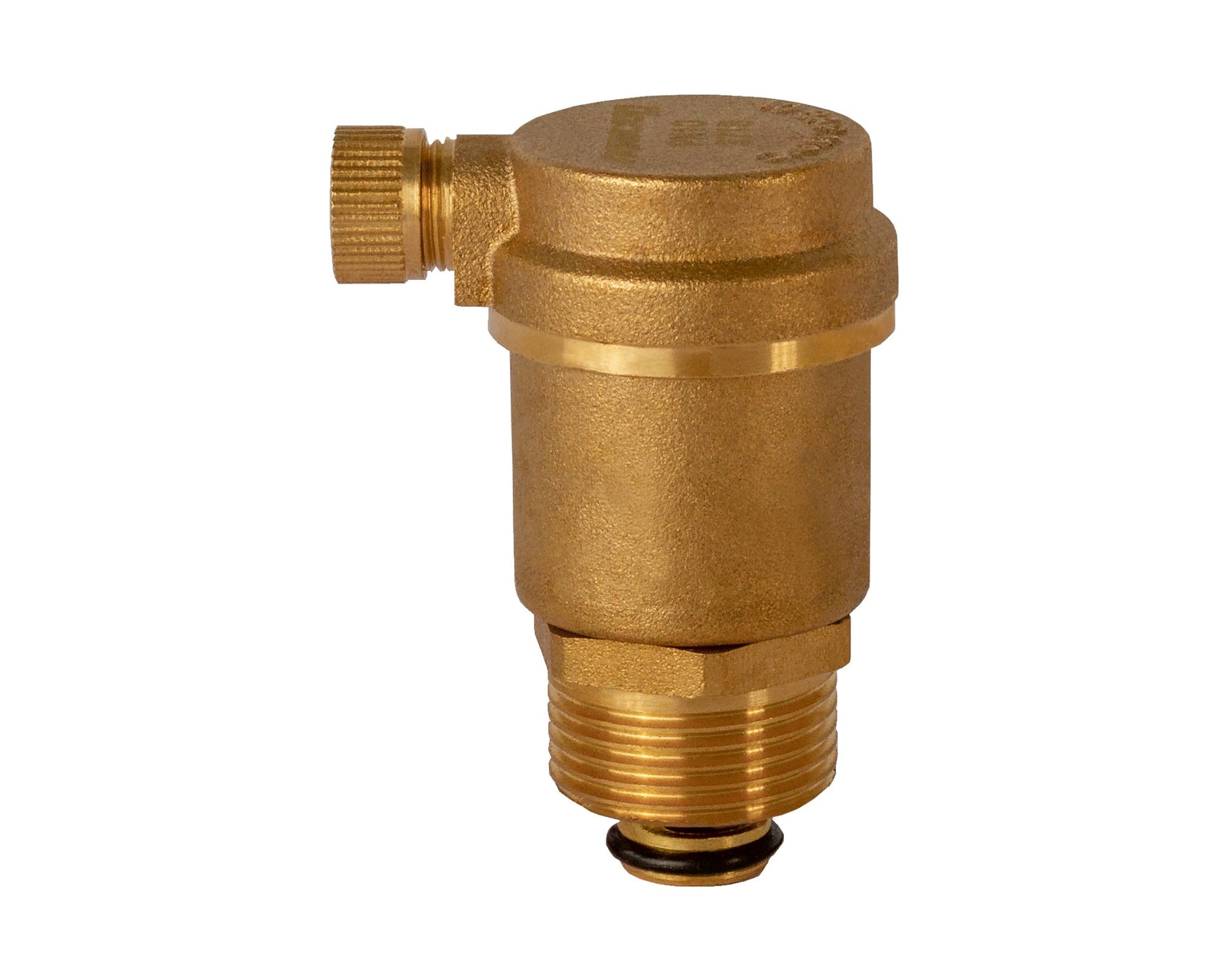

FAV_B10_21
Brass – PN 10 – Single action – ISO 228
PDF

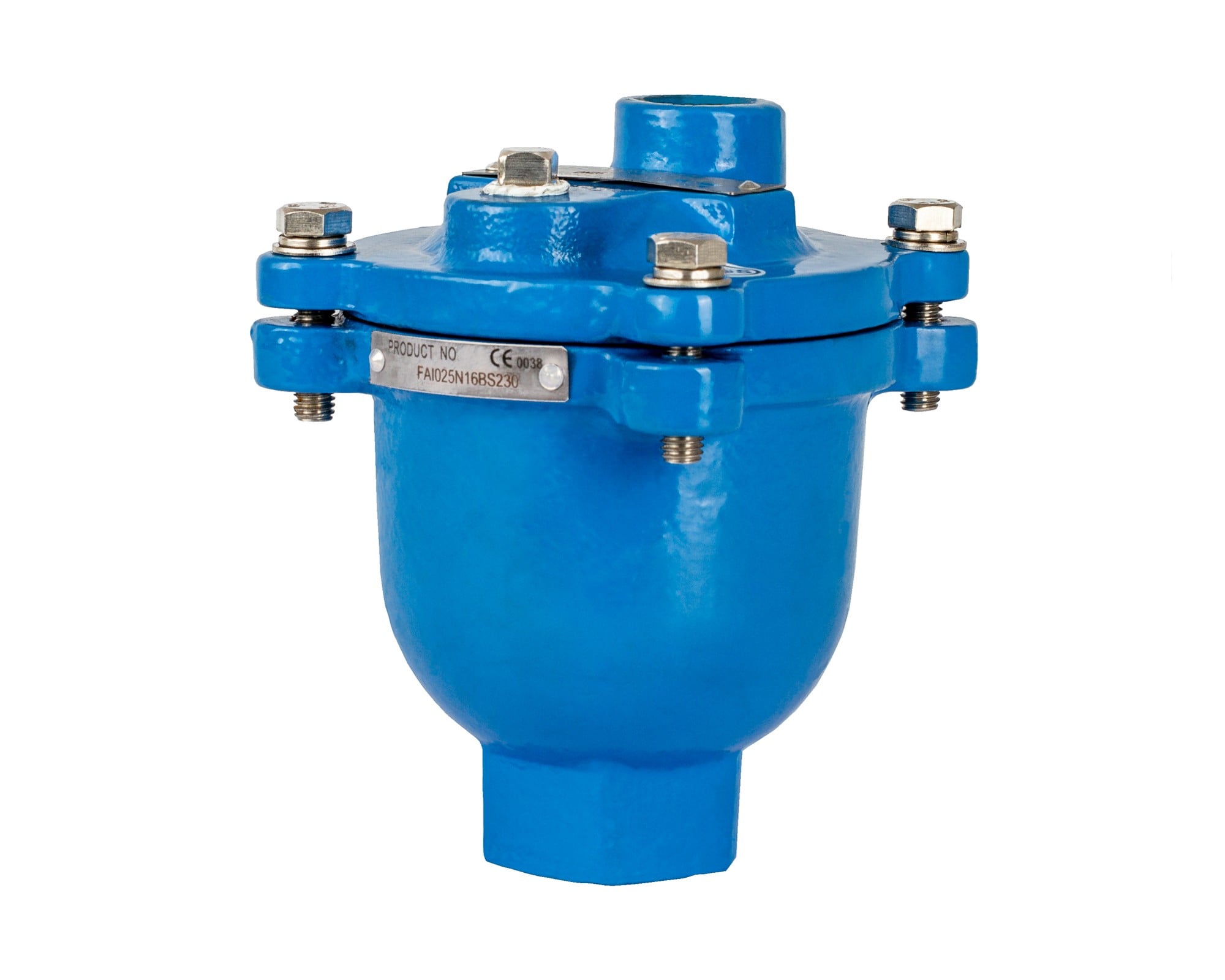

FAI_N16_BS230
