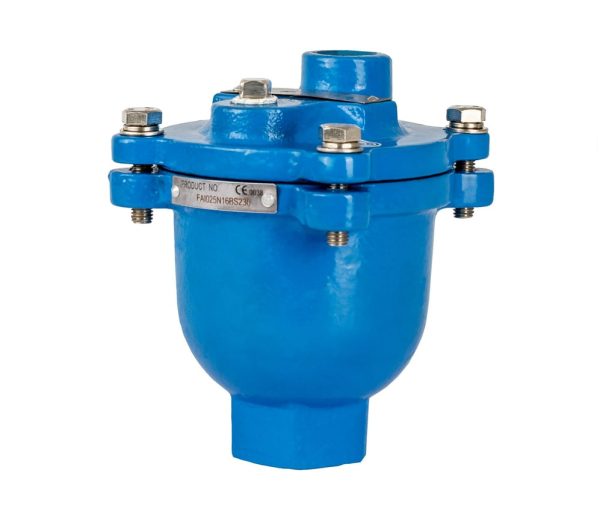

FIVC AIR VENT
FAI_N16_BS230 – Ductile Iron – PN 16 – Single action – BSPT
The FIVC Air Vent is designed as a single action valve with a small orifice to release low volumes of air when the line is under pressure.
This air vent is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Efficient flow energy transfer
- Minimum friction loss
- Eliminates air pockets
- Durable and reliable
- Reduces the water hammer incidents
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Self-actuating
Function: Single action
Threading: BSPT
USP: Improves flow efficiency. Headloss- and water hammer minimization.
MAIN MATERIALS
Body: Ductile Iron
Float: Stainless Steel
Gasket: Viton
Cover: Grey Cast Iron
Plug: Steel
Pin: Steel
FIELD OF APPLICATION
Temperature range: -10 to 100 °C
Max. working pressure: 16 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014.
