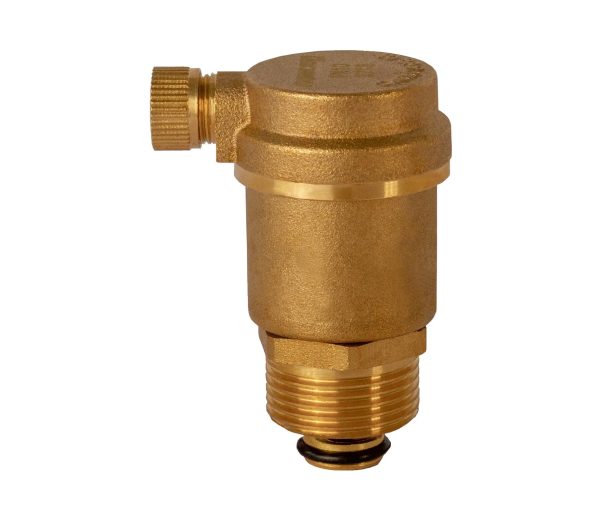

The FIVC Air Vent is designed as a single action valve with a small orifice to release low volumes of air when the line is under pressure.
This air vent is suitable for water.
Function and benefits
QUICK DATASHEET DOWNLOAD
Feature: Self-actuating
Function: Single action
Threading: ISO 228
USP: Flow efficiency, headloss- and water hammer minimization.
Body: Brass CW614N
Disc spring: Stainless Steel
O-Ring: NBR
Internal float: Polythene
Stem: Brass CW614N
Gasket: NBR
Max. temperature: 70 °C
Max. working pressure: 16 bar
Media: Water
The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
Size, material, approval, pressure rate, etc. are available upon request.
