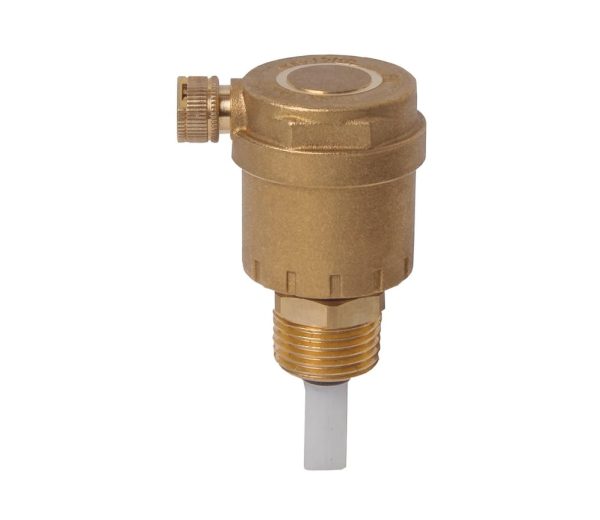

FIVC AIR VENT

FAV_B7 – Brass – PN 7 – Single Action – ISO 228

The FIVC Air Vent is designed as a single action valve with a small orifice to release low volumes of air when the line is under pressure.

This air vent is suitable for water and glycol solutions (Max. 50 % concentration of glycol).

FAV-B7-2
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

PDF-file-icon.svg-1-244x300
  • Efficient flow energy transfer
  • Minimum friction loss
  • Eliminates air pockets
  • Durable and reliable
  • Reduces the water hammer incidents
Asset-7
CUSTOMIZED REQUEST?

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Self-actuating
Function: Single action
Threading: ISO 228
USP: Flow efficiency, headloss- and water hammer minimization.

MAIN MATERIALS

Asset-7

Body: Brass CW617N
Disc spring: Stainless Steel
O-Ring: EPDM
Internal float: PP-H
Stem: Brass CW614N
Handle: PTFE

FIELD OF APPLICATION

Asset-7

Temperature range: 5 to 120 °C
Max. working pressure: 14 bar
Max. pressure of air vent operation: 7 bar
Media: Water and glycol solutions
(Max. 50 % concentration of glycol

DECLARATION

Asset-7
The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7
DATASHEET
OMI MANUAL

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

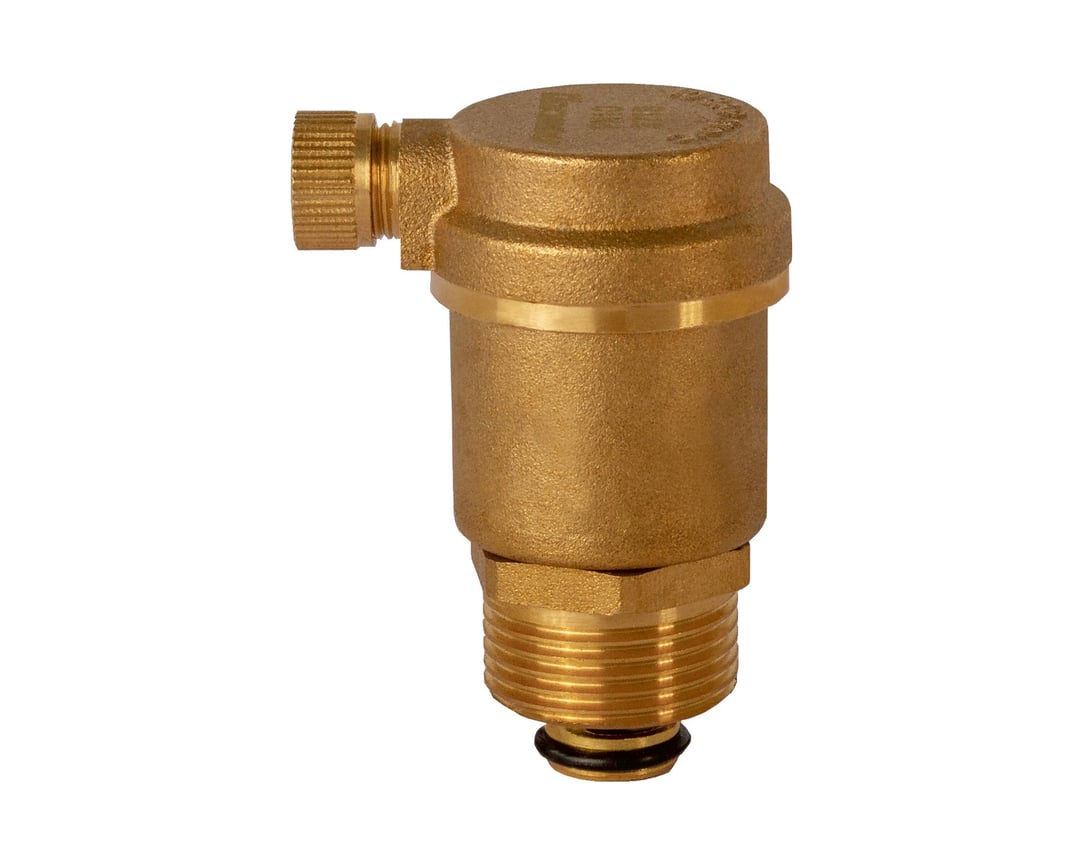

FAV_B10_21
Brass – PN 10 – Single action – ISO 228
PDF
FAI_N16_BS230
Ductile Iron – PN 16 – Single action – BSPT
PDF

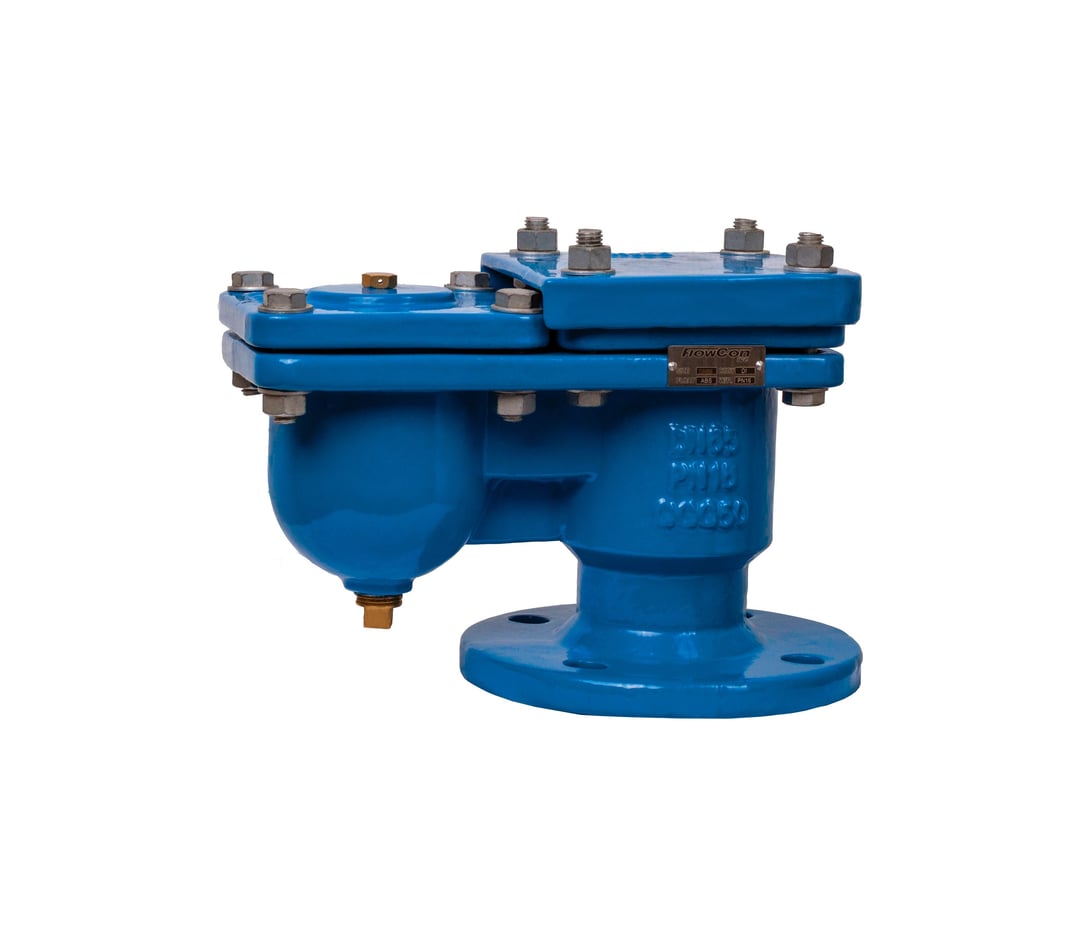

FAI_N16_BT230
