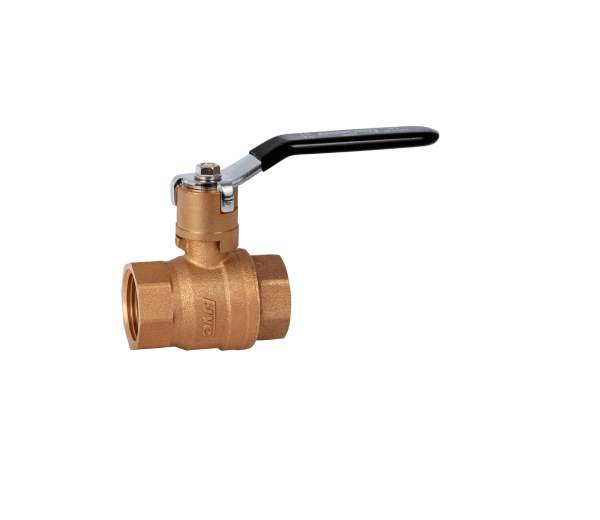

FIVC BALL VALVE

FBA_O25_FX42 – Bronze – PN 25 – Full Port – Extended lever – ISO 228

The FIVC Ball Valve is designed as a quarter-turn, full port valve for use in pipeline isolation.

This ball valve is suitable for water.
FBA-O25-FX42-1
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

PDF-file-icon.svg-1-244x300
  • Excellent flow isolation
  • Minimum friction loss
  • Long lifespan
  • Durable and reliable
  • Cost- and maintenance efficient
Asset-7
CUSTOMIZED REQUEST?

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Manual operated ON/OFF by handle rotation
Threading: ISO 228
USP: Extended lever. Excellent and easy shut-off. Durable. Long lifetime.

MAIN MATERIALS

Asset-7

Body: Bronze CC491K
Packing: PTFE
Stem: Brass CW617N
Ball: Chrome-plated Brass
Lever handle: Steel
Seat: PTFE

FIELD OF APPLICATION

Asset-7

Max. temperature: 170 °C
Max. working pressure: PN 25
Media: Water

DECLARATION

Asset-7

The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).

RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7
DATASHEET
OMI MANUAL
General-services

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

FBA_B35_F21001
Brass – PN 35/28 – ISO 228
PDF

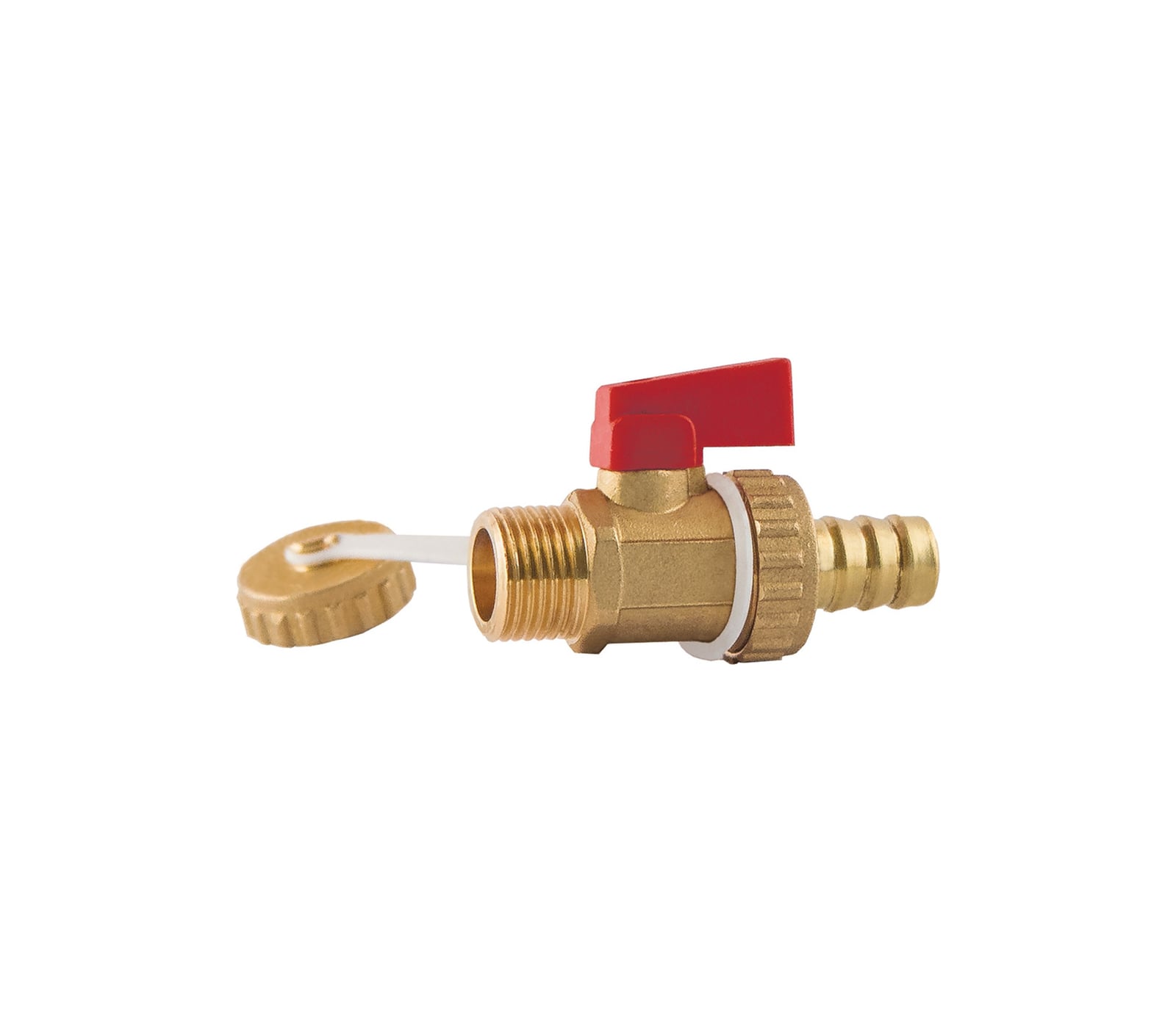

FBA_B10_D
Brass – PN 10 – w/drain – Full port
PDF
FBA_C16_F215
CI – PN 16 – Full port
PDF
