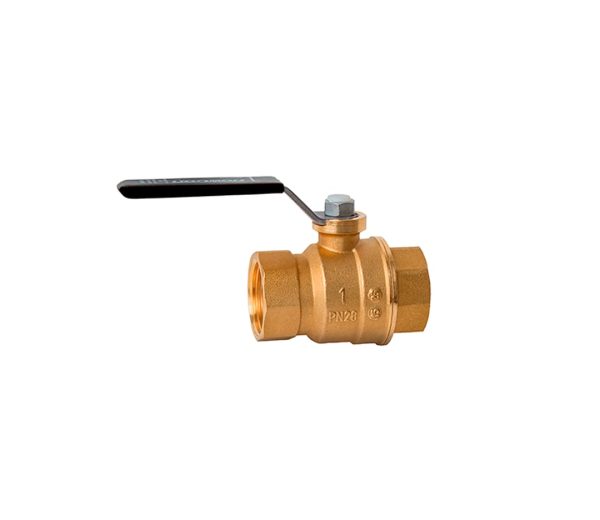

FIVC BALL VALVE
FBA_B35_F21001 – Brass – PN 35/28 – Full Port – ISO 228
The FIVC Ball Valve is designed as a quarter-turn, full port valve for use in pipeline isolation.
This ball valve is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent flow isolation
- Minimum friction loss
- Long lifespan
- Durable and reliable
- Cost- and maintenance efficient
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Manual operated ON/OFF by handle rotation
Threading: ISO 228
USP: Excellent and easy shut-off. Durable. Long lifetime.
MAIN MATERIALS
Body: Brass CW617N
Stem: Brass CW614N
Ball: Brass CW617N
Lever handle: Stainless Steel
FIELD OF APPLICATION
Temperature range: -20 to 60 °C
-20 °C (with 50% glycol)
Max. working pressure: DN 15-20: 35 bar at 60 °C
Max. working pressure with liquid hydrocarbon: 12 bar at 20 °C
Max. operating pressure (MOP) with gas: 5 bar
Max. working conditions with dry saturated steam: 185 °C at 10.5 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
For dangerous gas use, the valves with sizes DN 40 and above are CE marked.

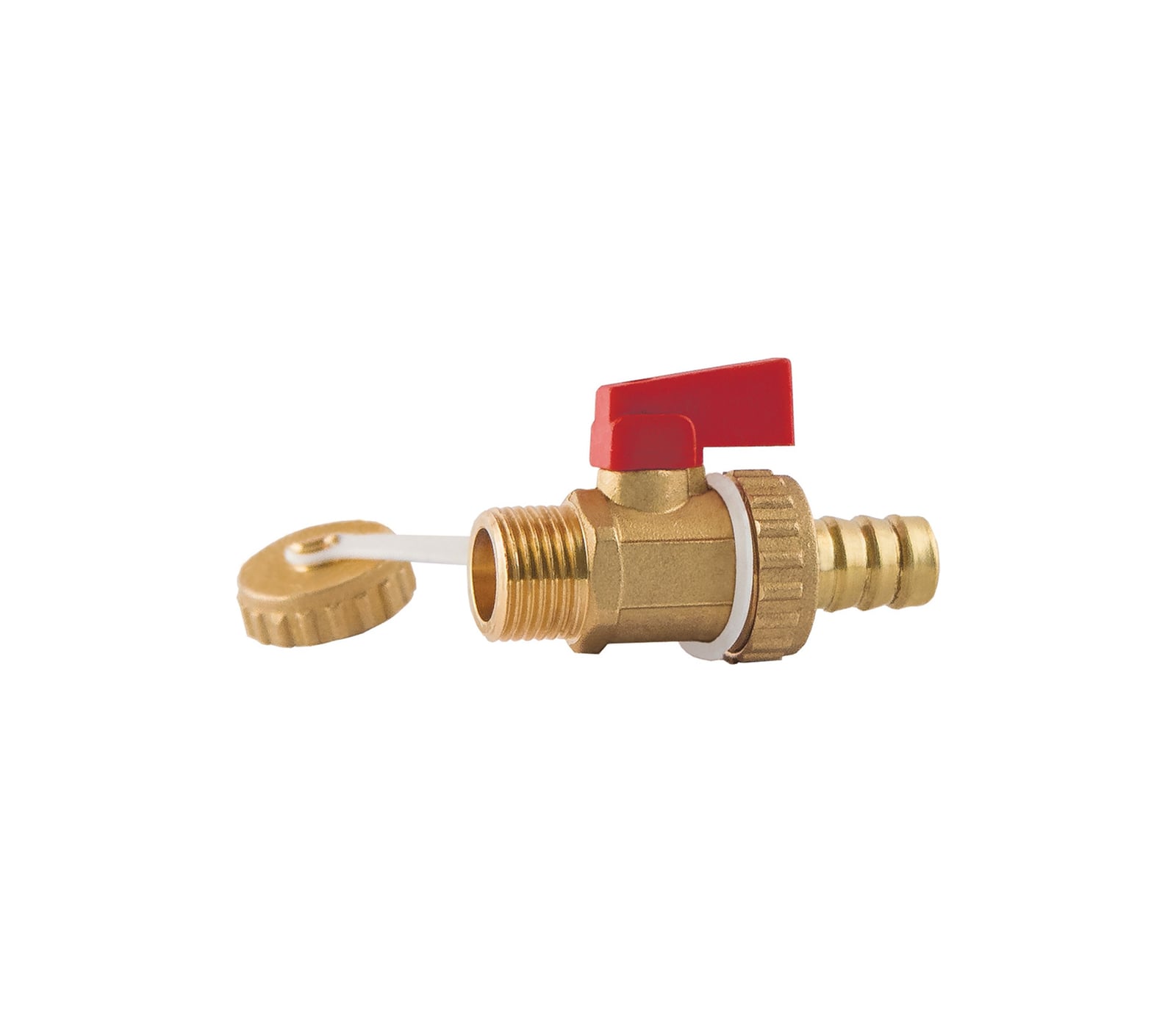

RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
