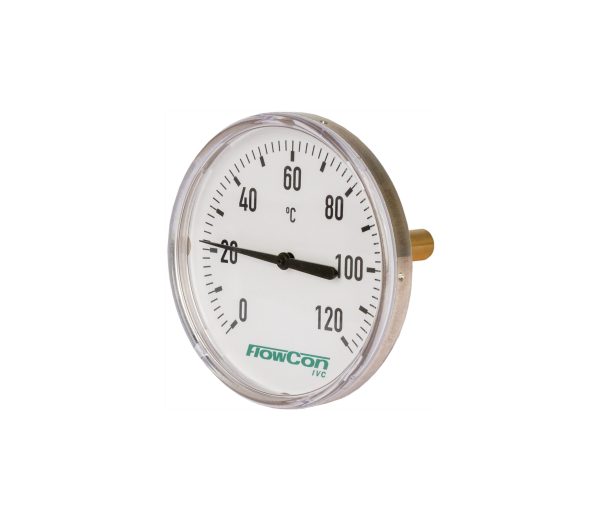

FIVC THERMOMETER

FBT_0120P60 – Plastic and Copper Alloy – 0-120 C deg. – Thermowell ISO 228 – Bimetal – EN 13190

The FIVC Bimetal Thermometer is designed as a bimetal type to be installed in pipelines for temperature-measurement purposes. The device is delivered with thermowell fittings operating up to 6 bar.

This device is suitable for water.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Pressure-measurement
Nominal size:
Nominal size for DN 63: PS
Nominal size for DN 80, 100: SAN
Connection location: Back mount, center
Working scale: Full-scale value
Accuracy class: Indication accuracy class 2 EN 13190
Thermowell: ISO 228 in DN 15. Available in different lengths. Removable, friction fit.
Zero adjustments: At bottom of the stem
USP: Quick and accurate reading ensuring proper system operation and energy efficiency, as well as for identifying potential problems such as overheating, underheating, or freezing. Durable and reliable. Thermowell included.

MAIN MATERIALS

Case: Aluminium
Stem: Aluminium
Process connection: Thermowell in Copper Alloy
Pointer: Plastic
Dial: Plastic w/Pointer
Window: Plastic

FIELD OF APPLICATION

Temperature range: 0 to 120° C
Max. working pressure: 6 bar
Media: Water

Alternative product versions

Removable Brass thermowell with retainer screw Other scale range
Case in Steel (galvanized) or Aluminium
Slip-on bezel, nickelplated

DECLARATION

The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive N° 2014/68/EU, dated 15/05/2014, the produet is exempted from CE marking (Cf. Art. 4.3).
