FIVC WAFER BUTTERFLY VALVE

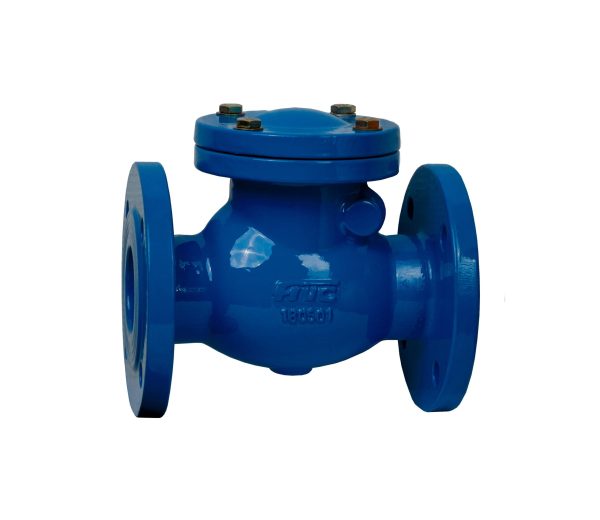

FCH_C16_CB217 – Grey Cast Iron/Ductile Iron – PN 16 – Swing – EN 1092-2

The FIVC Check Valve is designed to be installed in pipelines to eliminate the return of pressurized fluid.

The check valve is mainly used in heating/cooling or sanitary circuits.

This check valve is suitable for water.

FCH-C16-CB217-3
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

PDF-file-icon.svg-1-244x300
  • Excellent control performance with bubble-tightness
  • Ensure high media quality
  • Lower pressure losses and oxidation
  • Small driving torque
  • Easy operation, and fast-acting
Asset-7
CUSTOMIZED REQUEST?

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 420
Thread: Metric
Seat: Replaceable
Construction: Pinless
External operator: Electrical actuator from Bernard Controls
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20) DIN 3202 T3 K1 – ISO 5752 T5 API 609
BS 5155 series (except DN 350)
Top flange acc. to ISO 5211/NFE 29-402
Tests: Hydraulic test acc. to 12266/ISO 5208
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.

MAIN MATERIALS

Asset-7

Body: Ductile Iron
Disc: Stainless Steel
Stem: Stainless Steel
Seat: Replaceable EPDM
Electrical actuator: Ductile Iron
Coating: Epoxy

FIELD OF APPLICATION

Asset-7

Temperature range: -20 to 110°C
Max. working pressure: 16 bar
Media: Water

DECLARATION

Asset-7
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7
DATASHEET
OMI MANUAL

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

LUGN5_MSEENG_2509BC
Ductile Iron body – Stainless Steel disc – PN 25 – Lugged – Actuator – Glued – Pinless – EN 1092-2
PDF
LUGN5_MSEENR_1603BC
Ductile Iron body and disc – PN 16 – Lugged – Actuator – Replaceable – Pinless – EN 1092-2
PDF
LUGN5_MSEENV_1603BC
Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Actuator – Vulcanized – Pinless – EN 1092-2
PDF
