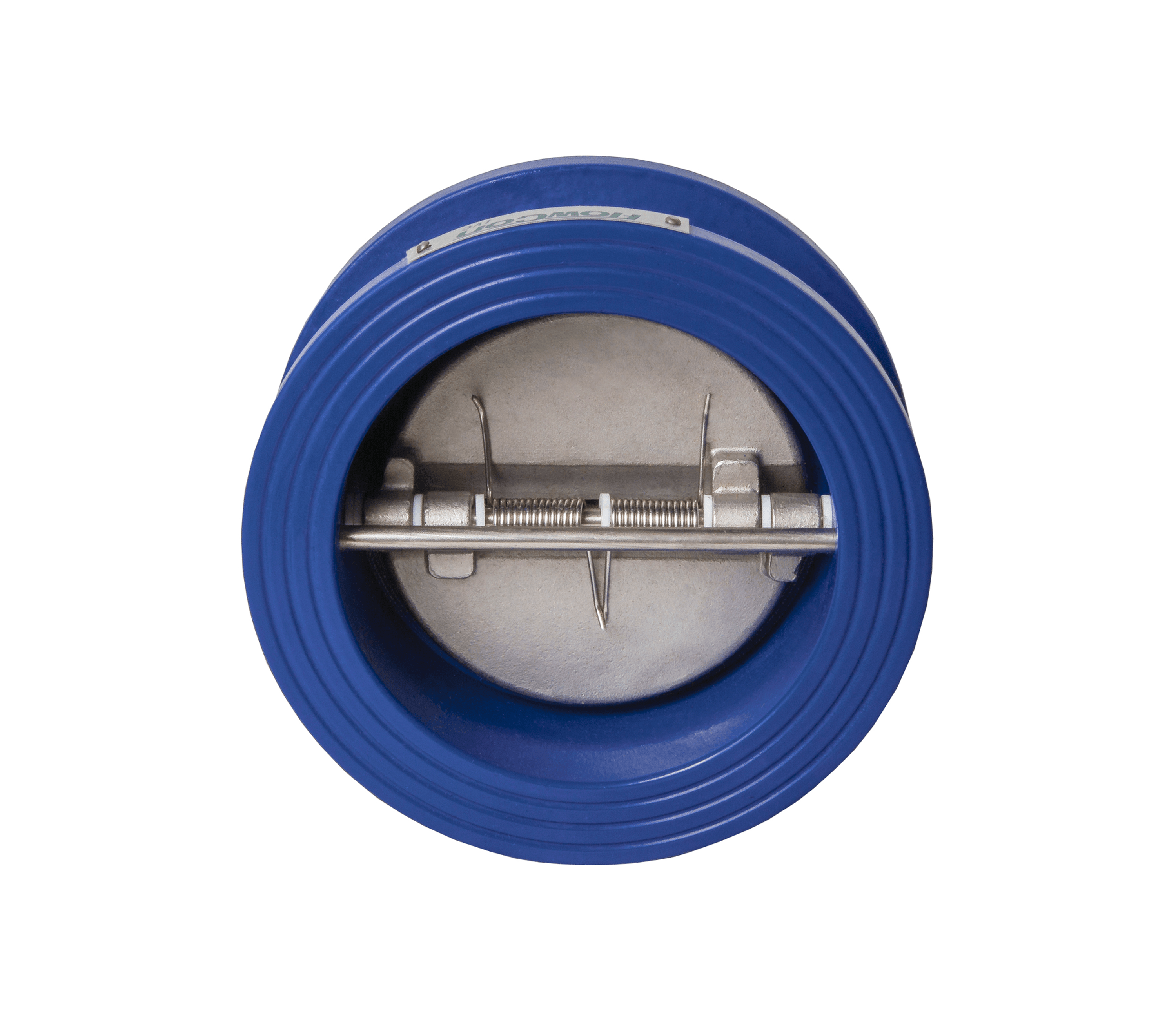

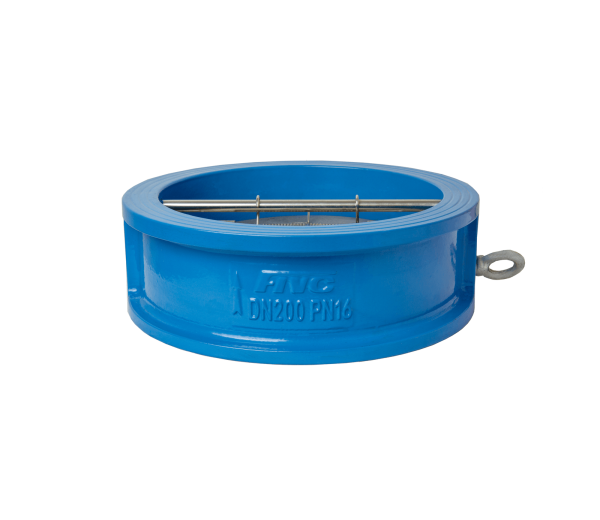

FIVC WAFER CHECK VALVE
FCH_C16_DP210 – PN 16 – Wafer – EN 1092-2
The FIVC Wafer or Dual Plate Check Valve is designed to be installed in pipelines to eliminate the return of pressurized fluid.
The check valve is mainly used in heating/cooling or sanitary circuits.
This check valve is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent system protection
- Lower pressure losses
- Weight-lightness
- Cost-, maintenance-, and installation efficient
- Small space requirement
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Self-actuating
Flange: EN 1092-2 PN 16
Dimensions: Face-to-Face acc. to DIN 3202 K3 (EN 558-1 row 16)
Pressure test: API 598 DIN 3230
USP: Cost- and maintenance efficient. Prevents water hammer
MAIN MATERIALS
Body: DN 65-300: Grey Cast Iron
DN 350-600: Ductile Iron
Disc: Stainless Steel
Spring: Stainless Steel
Seat: EPDM
Finish: RAL 5015 (min. 250 microns)
FIELD OF APPLICATION
Temperature range: -10 to 120 °C
Max. working pressure: 16 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.

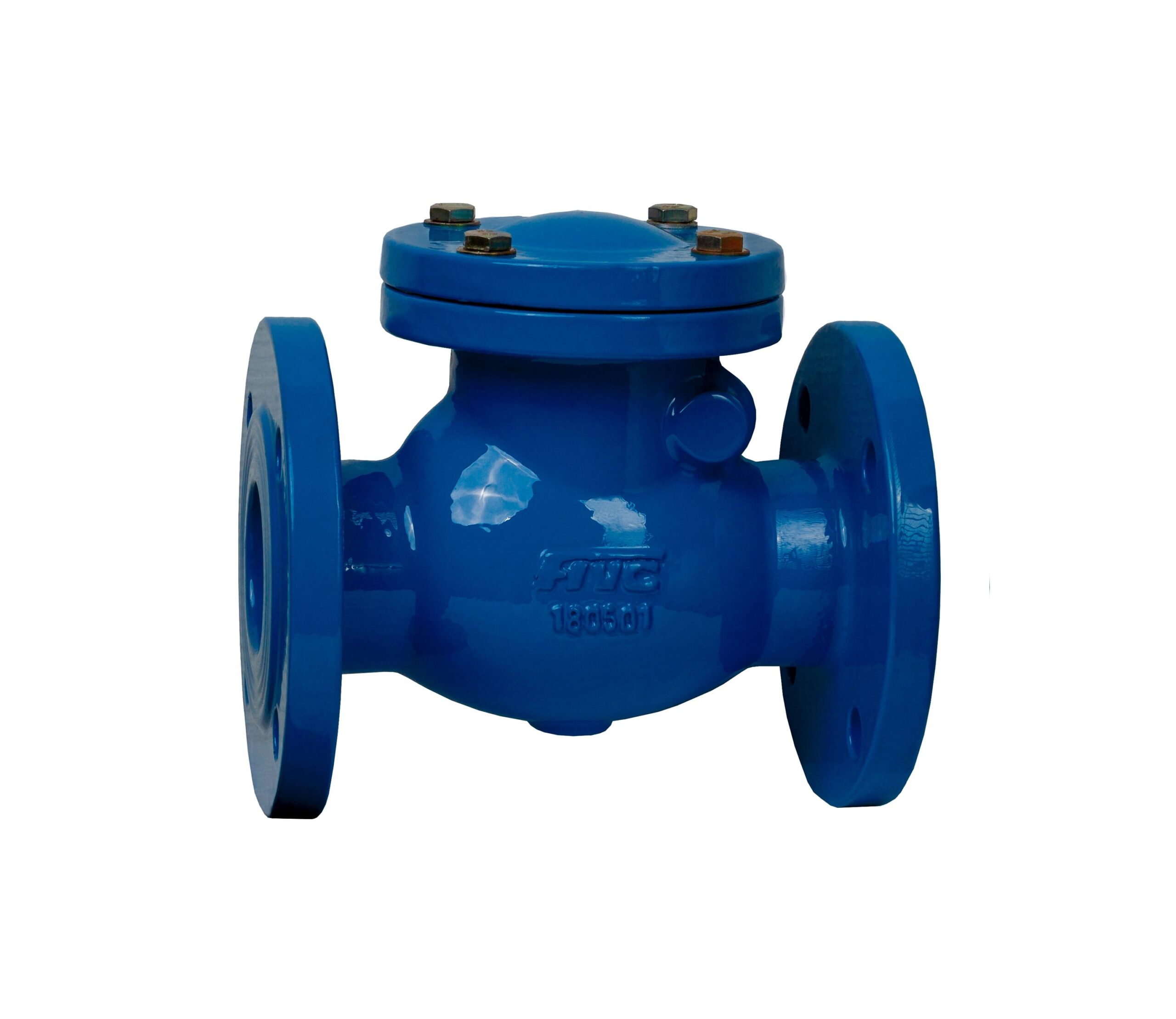

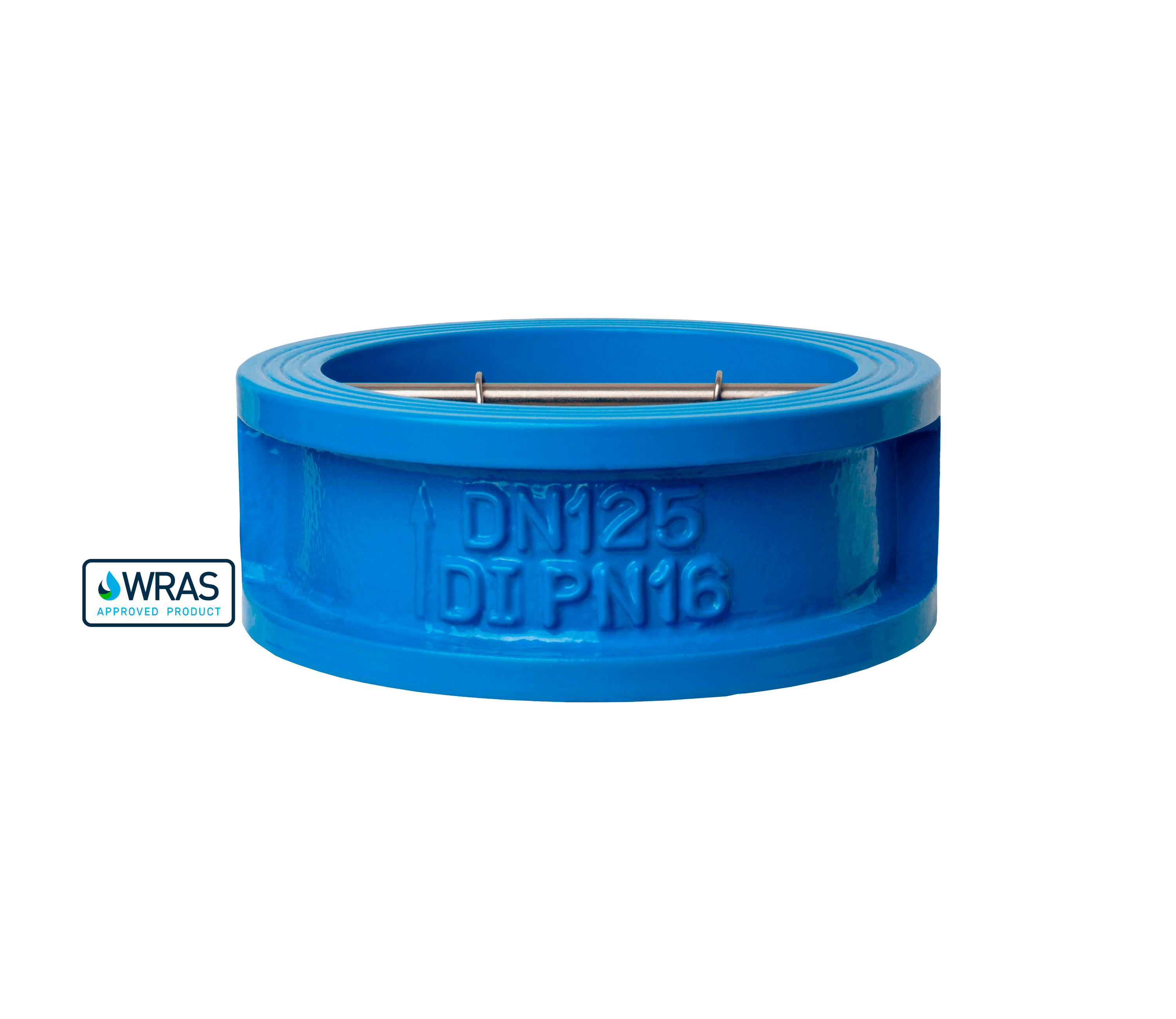

RELATED PRODUCTS
