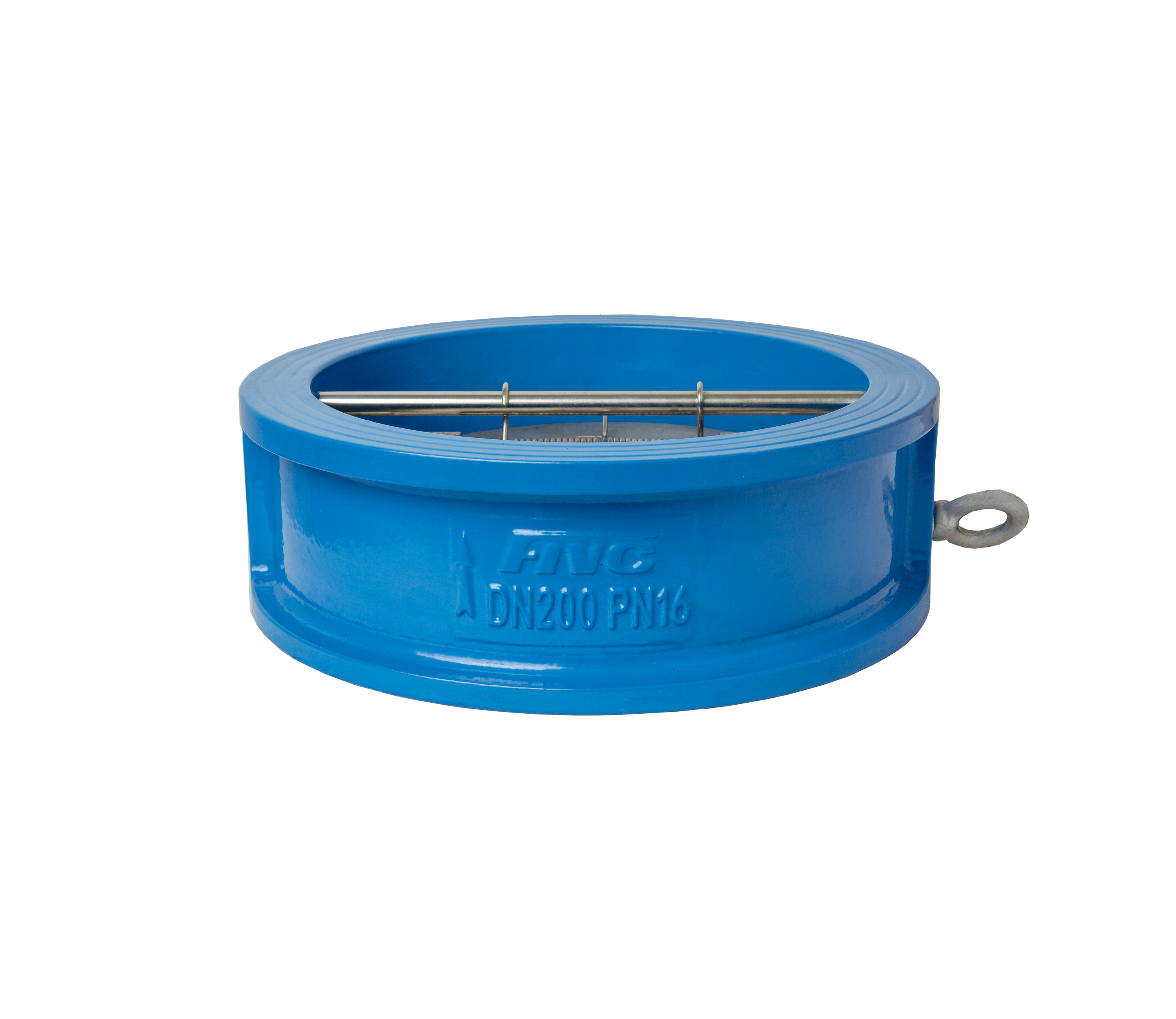

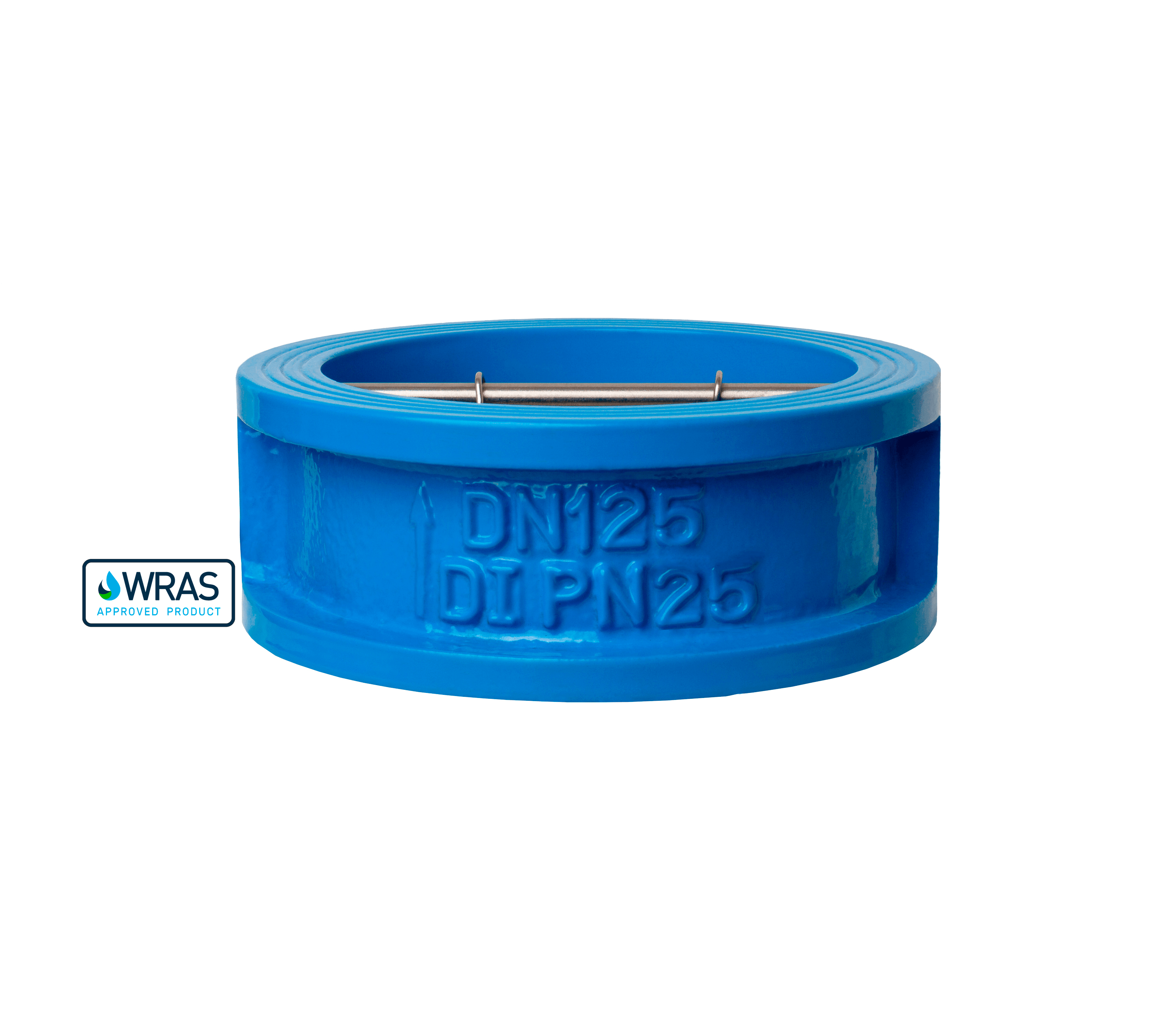

FIVC WAFER CHECK VALVE
FCH_N16_DP231 – Ductile Iron – PN 16 – Wafer – EN 1092-2
The FIVC Wafer or Dual Plate Check Valve is designed to be installed in pipelines to eliminate the return of pressurized fluid.
The check valve is mainly used in heating/cooling or sanitary circuits.
This check valve is suitable for drinking water and is WRAS-approved.
The check valve is mainly used in heating/cooling or sanitary circuits.
This check valve is suitable for drinking water and is WRAS-approved.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent system protection
- Lower pressure losses
- Weight-lightness
- Cost-, maintenance-, and installation efficient
- Small space requirement
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Self-actuating
Flange: EN 1092-2 PN 16
Dimensions: Face-to-Face acc. to DIN 3202,
ISO 5752-16, EN 558-1
Standards: BS 4504, AS 2129, BS10 E/D, JIS 10K
USP: WRAS-approved. Cost- and maintenance efficient.
Prevents water hammer.
MAIN MATERIALS
Body: Ductile Iron
Disc: Stainless Steel/Ductile Iron
Spring: Stainless Steel
Seal: EPDM (thickness equal 1.5-6 mm)
FIELD OF APPLICATION
Max. temperature: -10 to 85 °C
Max. working pressure: 16 bar
Media: Drinking water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
WRAS-approved.

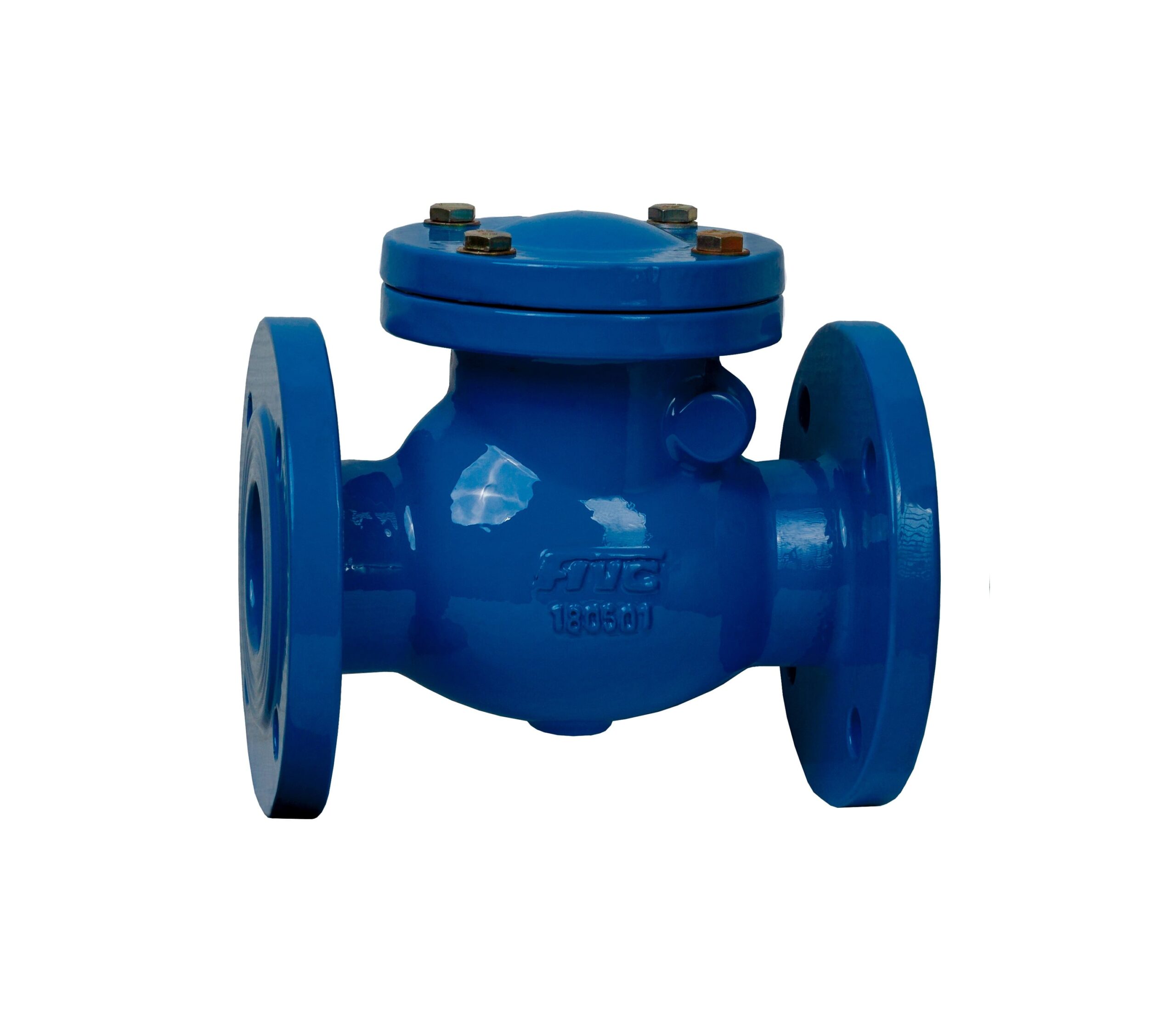

RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
