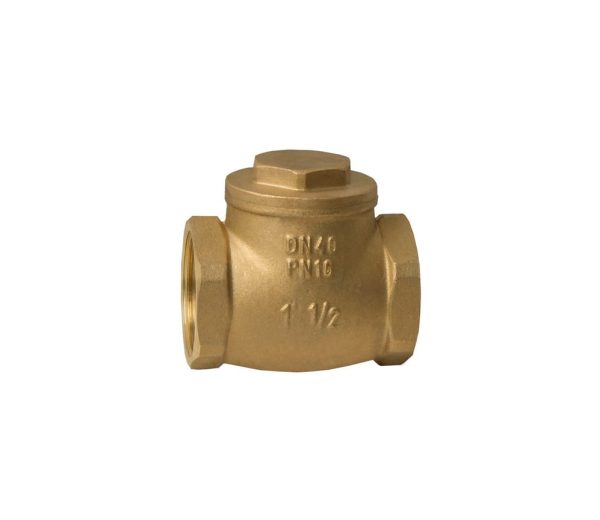

FIVC SWING CHECK VALVE
FCH_B16_CS15 – Brass – PN 16 – Swing – ISO 228
The FIVC Check Valve is designed to be installed in pipelines to eliminate the return of pressurized fluid.
The check valve is mainly used in heating/cooling or sanitary circuits.
This check valve is suitable for water for heating systems, domestic hot water, and water containing max. 30 pct. glycol
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent system protection
- Lower pressure losses
- Cost-, maintenance-, and installation efficient
- Large flow capacity
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Self-actuating
Threading: ISO 228
USP: Large flow capacity. Cost- and maintenance efficient
MAIN MATERIALS
Body:
DN 15-25: Brass CW614N
DN 32-50: Brass CB753S
Cap: Brass CW617N
Disc: Brass CW617N
O-Ring: NBR
FIELD OF APPLICATION
Temperature range:
5 to 95 °C (110 °C for occasional peaks)
Max. working pressure: 16 bar
Opening pressure: 0.05 bar
Media: Water (can contain up to 30 pct. glycol)
DECLARATION
The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).

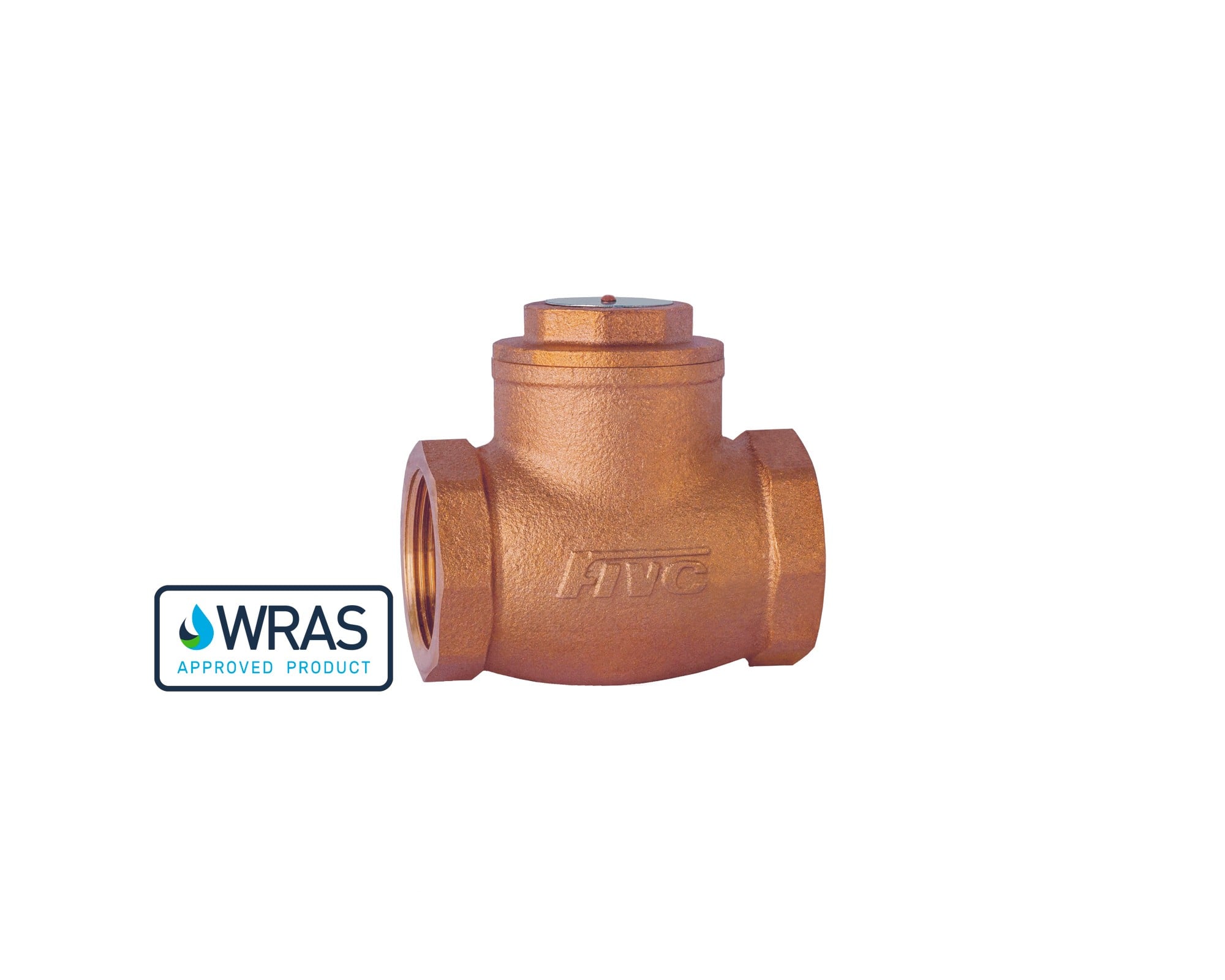

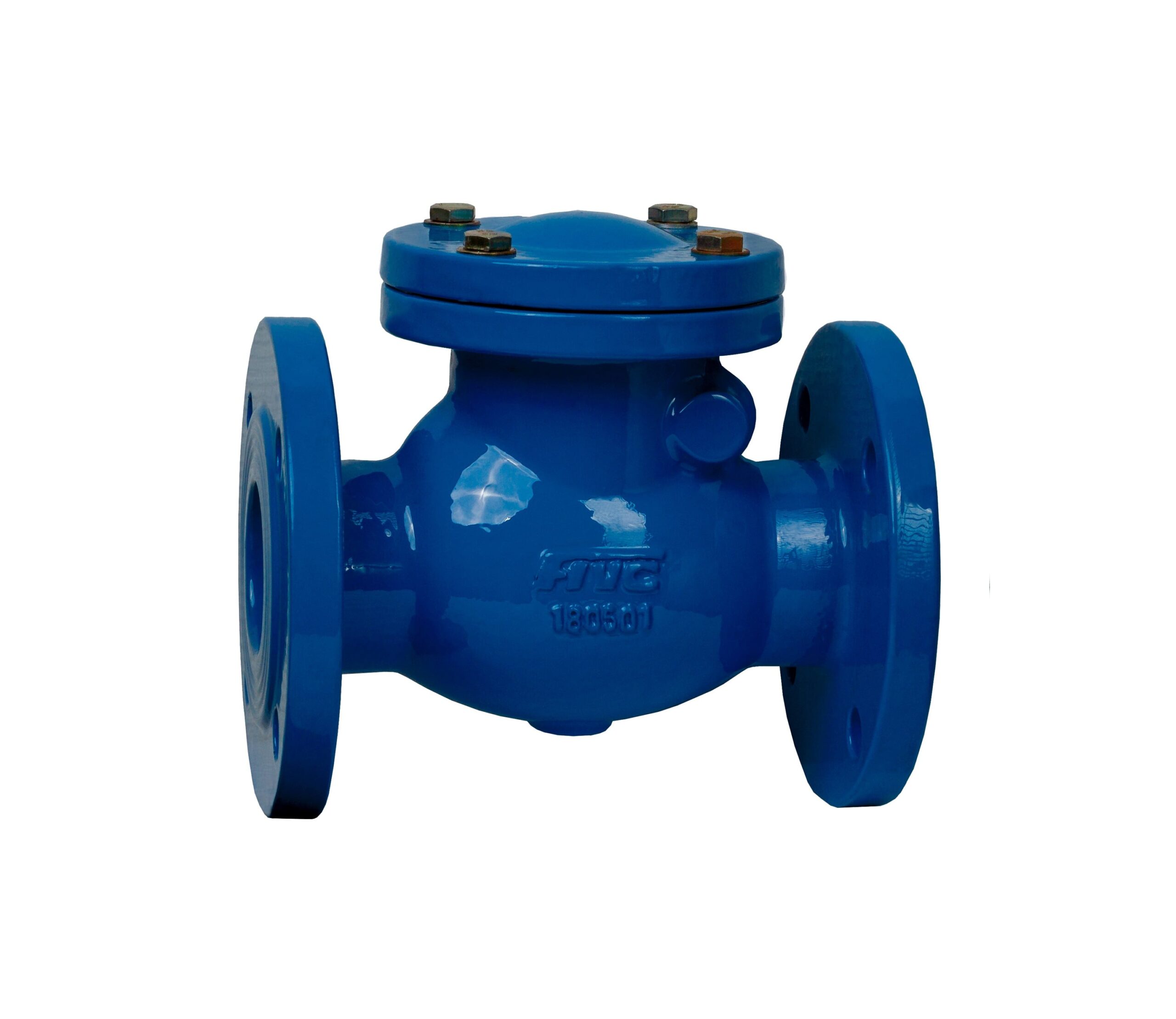

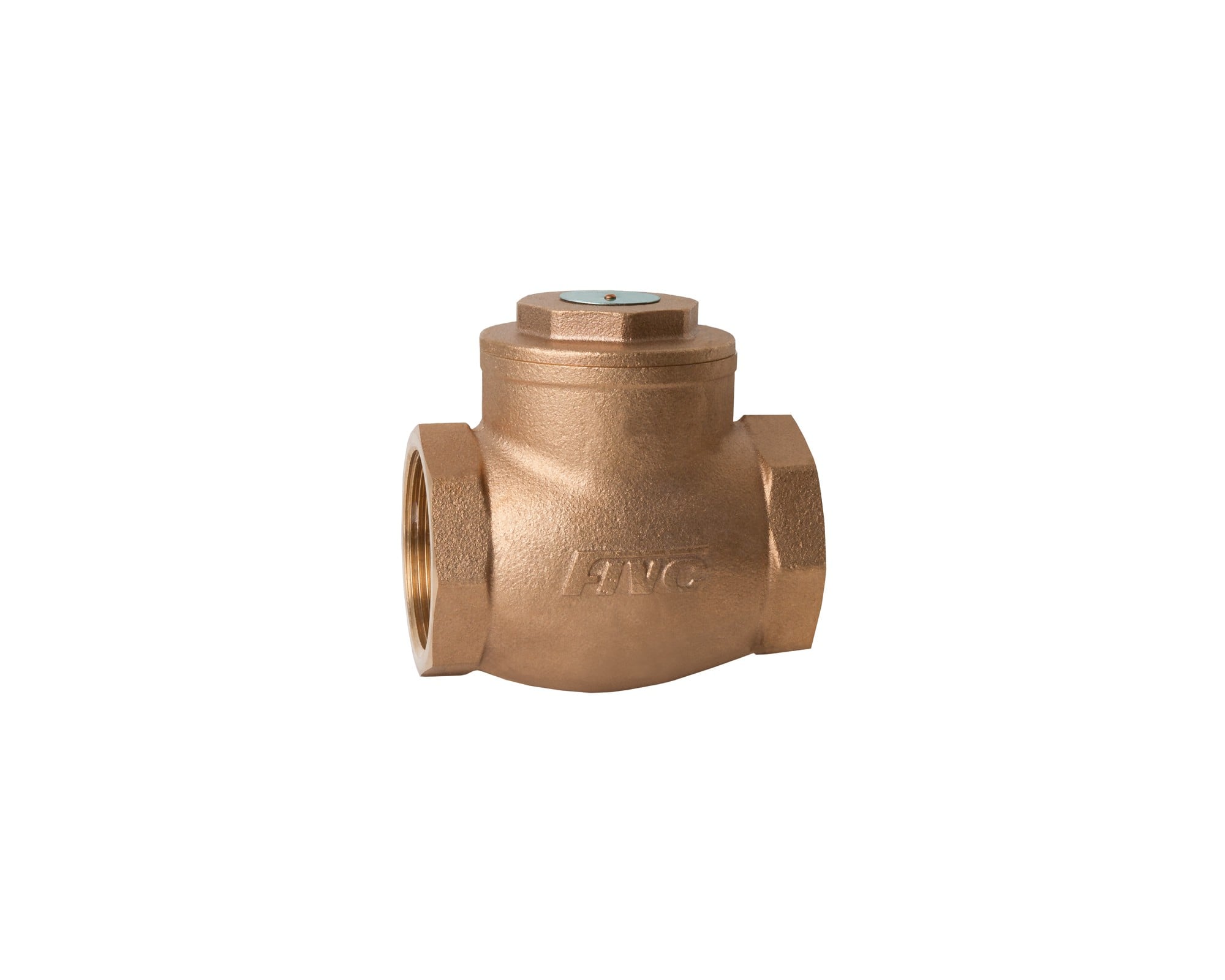

RELATED PRODUCTS
