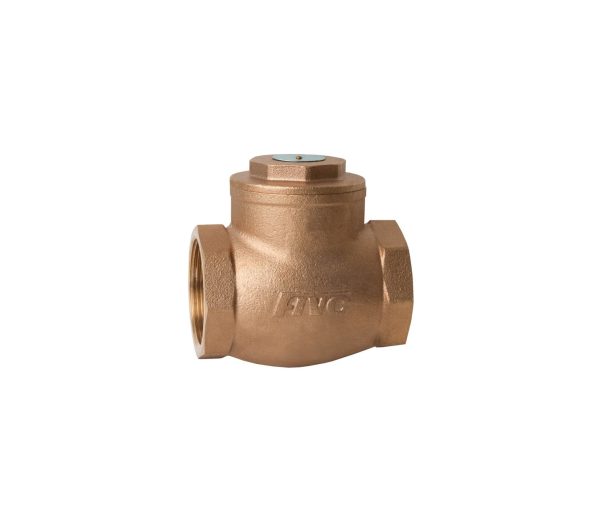

FIVC SWING CHECK VALVE
FCH_O20_CS0921 – Bronze – PN 20 – Swing – ISO 228
The FIVC Check Valve is designed to be installed in pipelines to eliminate the return of pressurized fluid.
The check valve is mainly used in heating/cooling or sanitary circuits.
This check valve is suitable for Water, Oil, and Steam.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent system protection
- Lower pressure losses
- Cost-, maintenance-, and installation efficient
- Large flow capacity
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Self-actuating
Threading: ISO 228
Standard: BS 5154
USP: Cost- and maintenaince efficient
MAIN MATERIALS
Body: Bronze CC491K
Cap: Bronze CC491K
Disc: Brass CW602N
Hinge: Brass CW602N
FIELD OF APPLICATION
Temperature range: -10 to 100 °C
7 bar at 170 °C °C
Max. working pressure: 20 bar
Media: Water, Oil, and Steam
DECLARATION
The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).

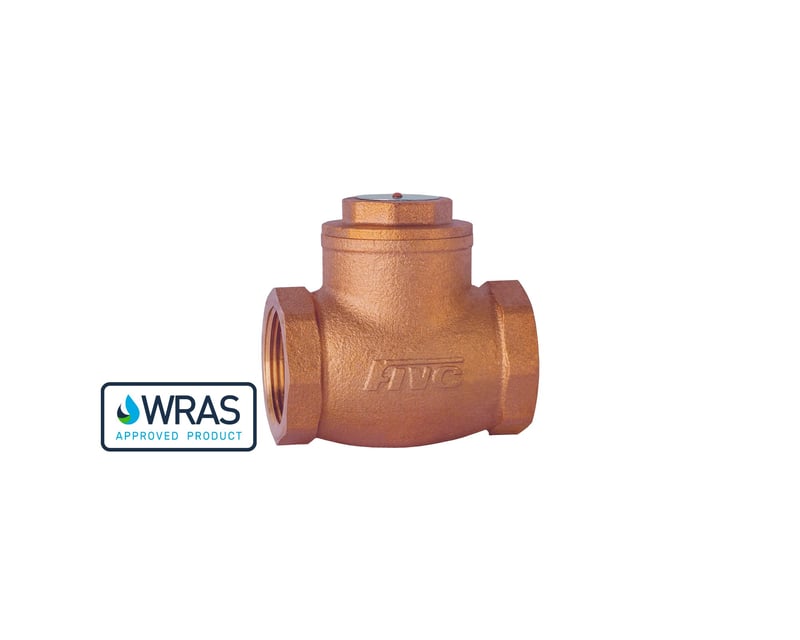

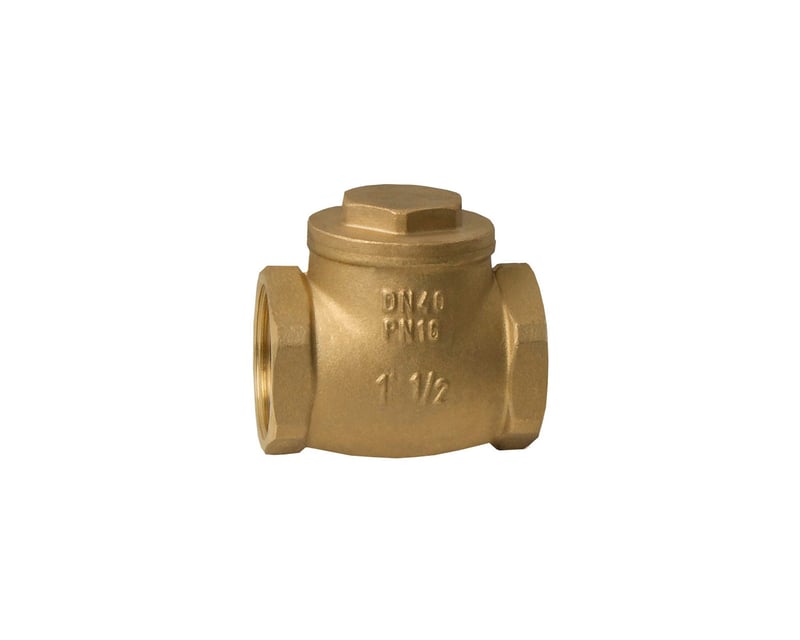

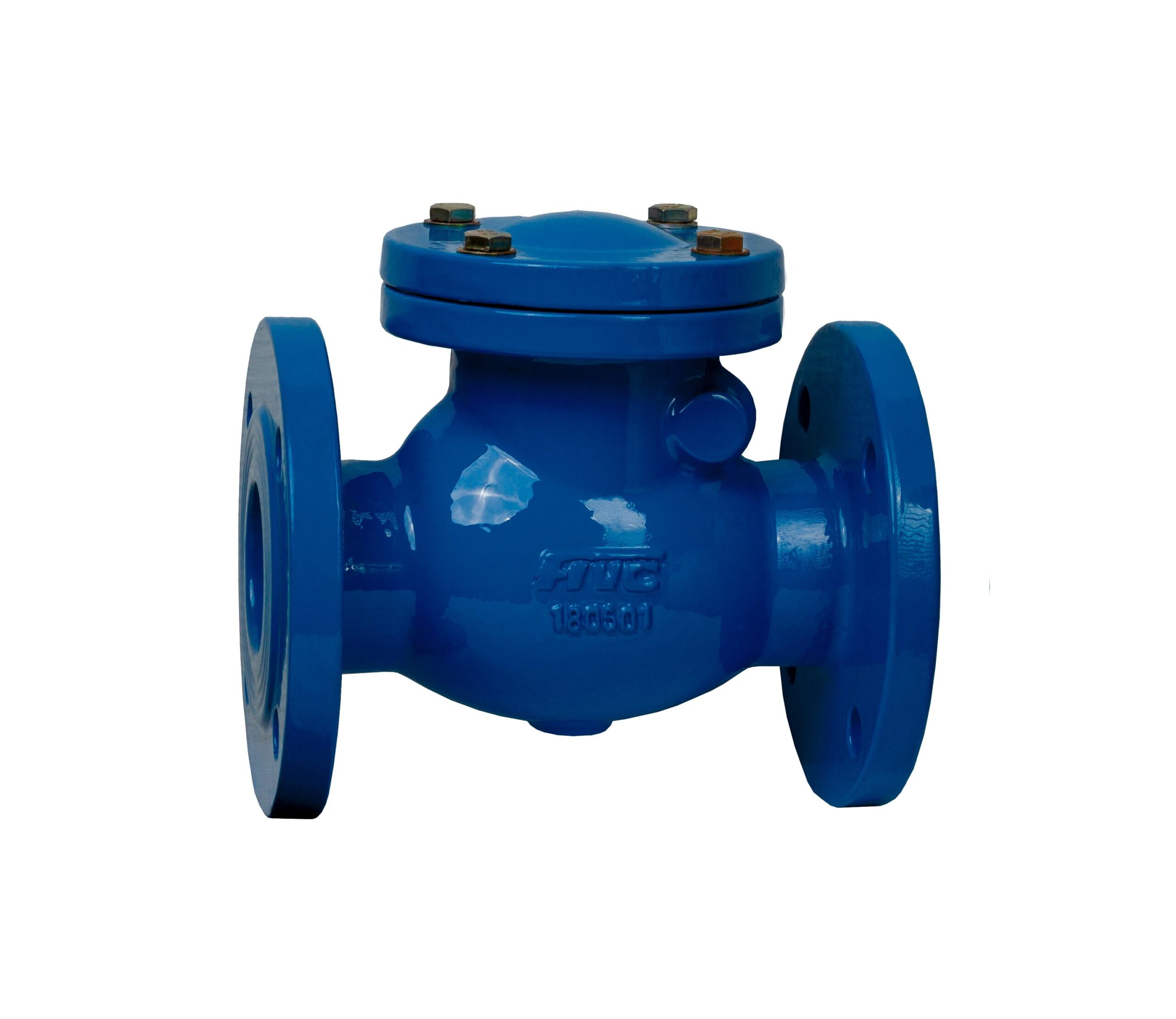

RELATED PRODUCTS
