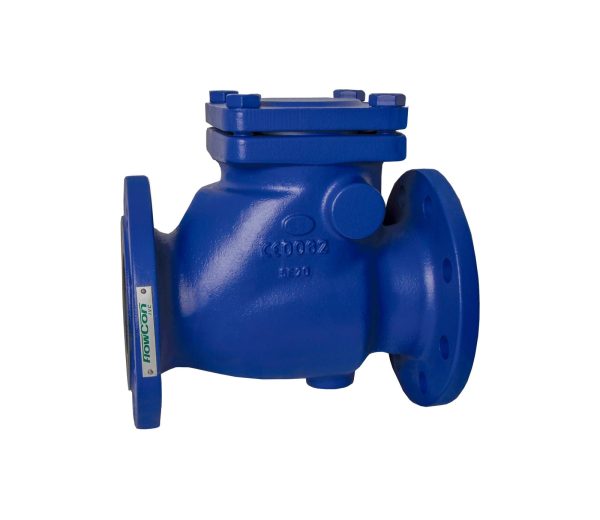

FIVC SWING CHECK VALVE
FCH_C16_CB04 – Grey Cast Iron – PN 16 – EN 1092-2
The FIVC Check Valve is designed to be installed in pipelines to eliminate the return of pressurized fluid.
The check valve is mainly used in heating/cooling or sanitary circuits.
This check valve is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent system protection
- Lower pressure losses
- Cost-, maintenance-, and installation efficient
- Large flow capacity
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Self-actuating
Flange: EN 1092-2 PN 16
Dimensions: Face-to-Face acc. to EN 558 (series 48)
Closing tightness: EN 12334
USP: Hygienic certificate. Cost- and maintenance efficient
MAIN MATERIALS
Body: Grey Cast Iron
Bonnet: Grey Cast Iron
Disc: Stainless Steel
Hinge: Ductile Iron
Plug: Zinc Galvanized 10S20
Grey Cast Iron
FIELD OF APPLICATION
Temperature range: -10 to 300 °C
Max. working pressure: 16 bar
Media: Water and neutral fluids
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, Module H, dated 15/05/2014, and is CE marked.
Hygienic certificate no. B-BK-60210-0286/21.
RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
