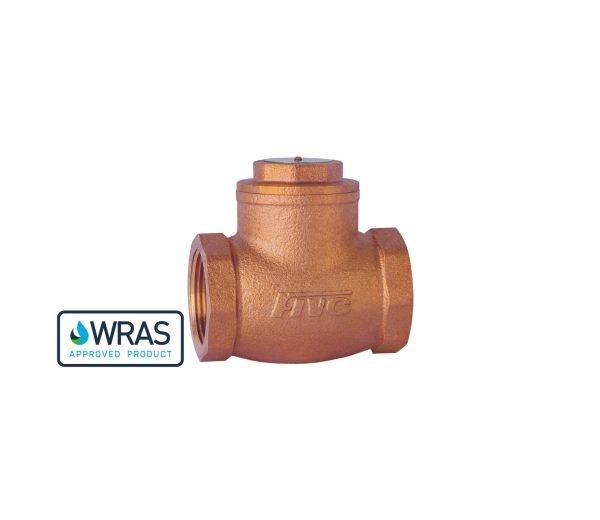

FIVC SWING CHECK VALVE
FCH_O20_CS1121 – Bronze – PN 20 – Swing – WRAS – ISO 228
The FIVC Check Valve is designed to be installed in pipelines to eliminate the return of pressurized fluid.
The check valve is mainly used in heating/cooling or sanitary circuits.
This check valve is suitable for Drinking Water, Oil, and Steam.
The check valve is mainly used in heating/cooling or sanitary circuits.
This check valve is suitable for Drinking Water, Oil, and Steam.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent system protection
- Lower pressure losses
- WRAS-approved
- Cost-, maintenance-, and installation efficient
- Large flow capacity
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Self-actuating
Threading: ISO 228
Standard: BS 5154
USP: WRAS-approved. Cost- and maintenance efficient.
MAIN MATERIALS
Body: Bronze CC491K
Cap: Bronze CC491K
Disc: NBR rubber
Hinge: Bronze CC491K
FIELD OF APPLICATION
Max. temperature: 80 °C
Max. working pressure: 20 bar
Media: Drinking Water, Oil, and Steam
DECLARATION
The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
WRAS-approved.

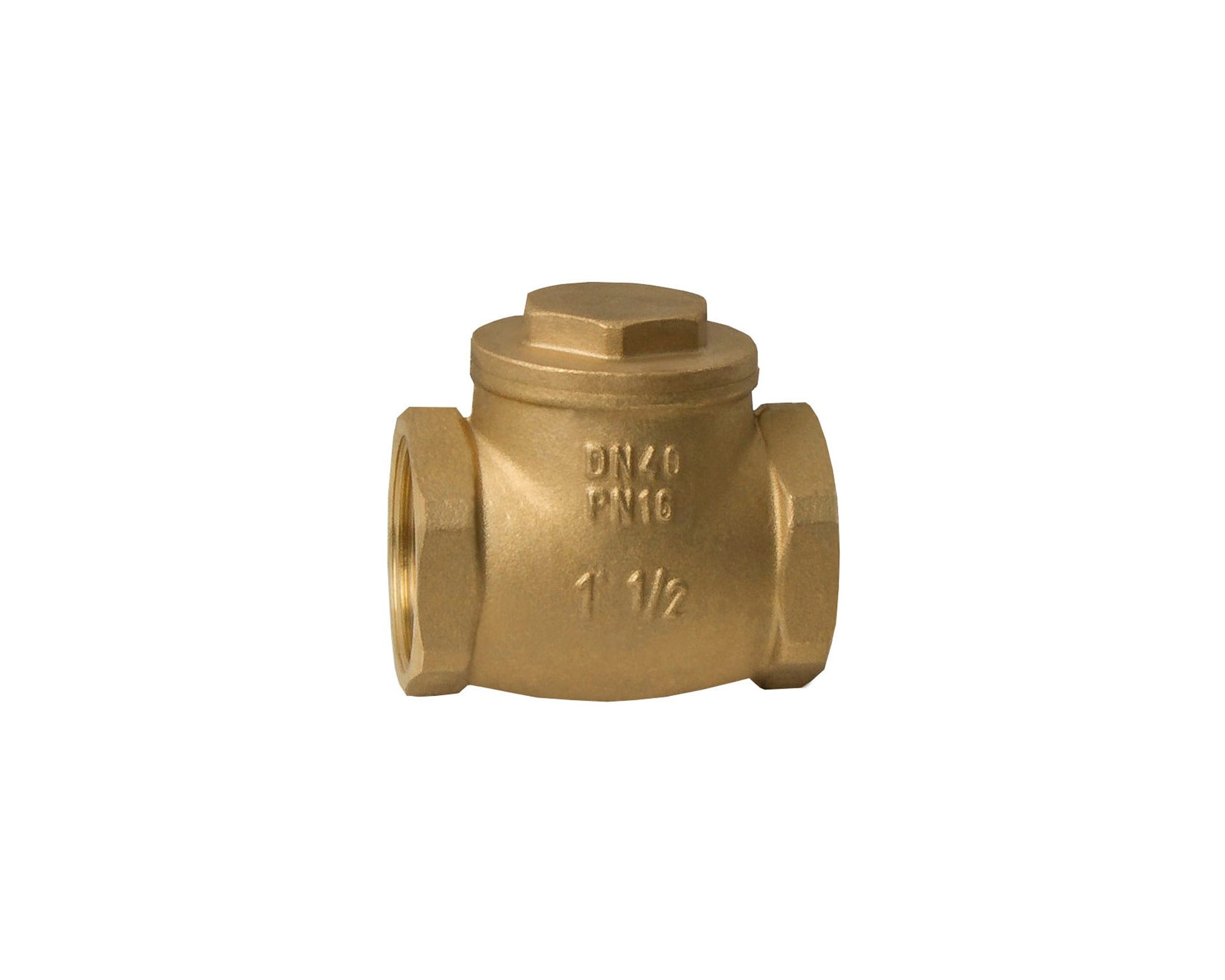

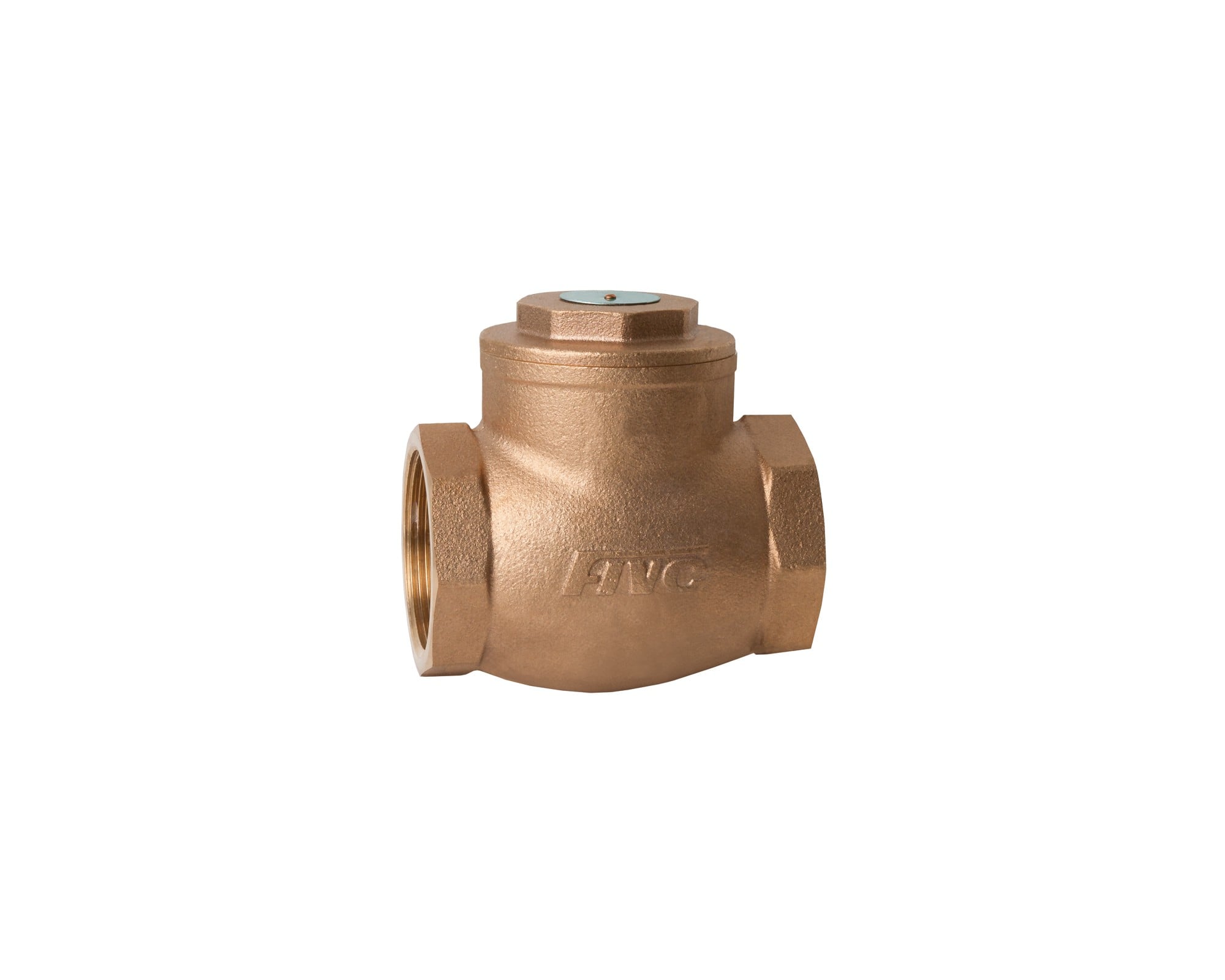

RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
