FEA ELECTRIC ACTUATOR
On-Off and Modulating | 50 – 6,000 N·m | IP67 | ISO 5211 Compatible
The FIVC FEA actuator is designed for precise quarter-turn automation of butterfly, ball, and plug valves. Offering both On-Off and Modulating control modes, the FEA series ensures safe, efficient, and durable performance with torque capabilities from 50 up to 6000 N·m. Compact and corrosion-resistant, the actuator is built for demanding indoor and outdoor environments.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- On-Off and Modulating control options
- Torque range: 50–6000 N·m
- IP67 ingress protection (IP68 optional)
- ISO 5211 mounting compatibility
- Compact, corrosion-resistant aluminum housing
- Manual override with wrench or optional handwheel
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Reliable 90° valve automation
Control Type: On-Off / Modulating
Torque Range: 50 – 6000 N·m
Voltage: AC 110 V or AC 220 V ±10 % (50/60 Hz)
Optional: DC 24 V / AC 380 V
Ingress Protection: IP67 (IP68 optional)
Duty Cycle:
On-Off: S2 – 15 min
Modulating: S4 – 50%
Signal Input:
On-Off: Contact signal (5A@250 V AC)
Modulating: 4 – 20 mA (150 Ω)
Optional: 0 – 10V, 2 – 10V, optoelectronic isolation
Signal Output:
Modulating: 4 – 20 mA (≤ 750 Ω)
Optional: 0 – 10 V, 2 – 10V, optoelectronic isolation
Manual Override: Wrench (optional handwheel)
Mounting Interface: ISO 5211 flange
Position Indicator: Flat pointer (3D optional)
USP: Robust performance. Fast response. Absolute precision. Easy installation. Compact design.
MAIN MATERIALS
Body: Die-cast aluminum alloy with anti-corrosion epoxy coating (Black)
Worm Wheel: Copper Alloy
Fasteners: Stainless Steel
FIELD OF APPLICATION
Suitable for indoor and outdoor installations in:
HVAC and industrial automation
Water treatment systems
Ball, butterfly, and plug valve control
Operating Conditions:
Ambient Temperature: –25 °C to +60 °C
Relative Humidity: ≤ 90% RH (at 25 °C)
DECLARATION
This product is designed and manufactured in accordance with:
LVD 2014/35/EU – Low Voltage Directive
EMC 2014/30/EU – Electromagnetic Compatibility
RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products
Ductile Iron body and disc – PN 16 – Wafer – Bernard Controls actuator – Replaceable – Pinless – EN 1092-2

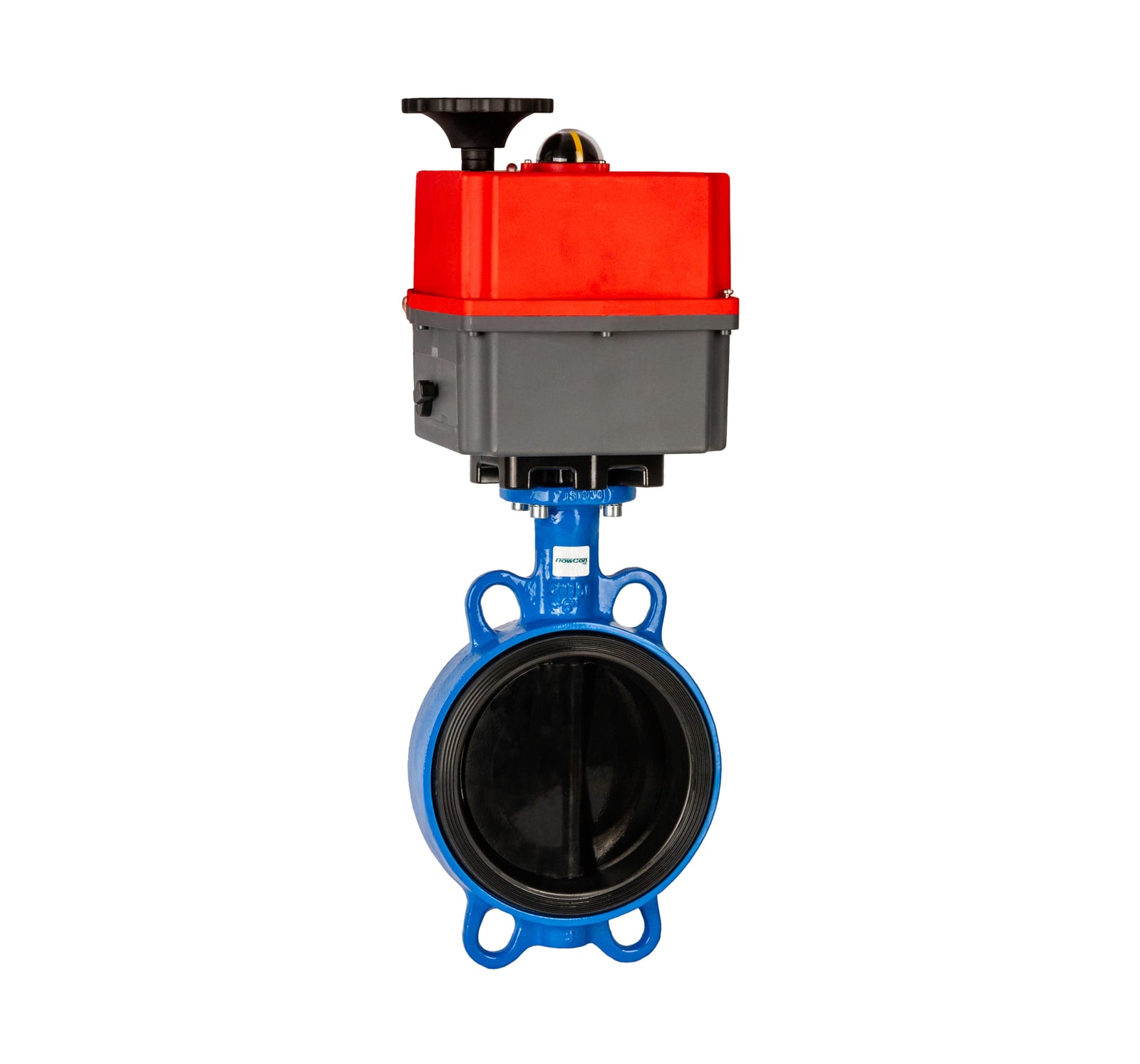

Ductile Iron body and disc – PN 16 – Wafer – J+J actuator – Replaceable – Pinless – EN 1092-2
