FFV B10 S21 - FlowCon IVC

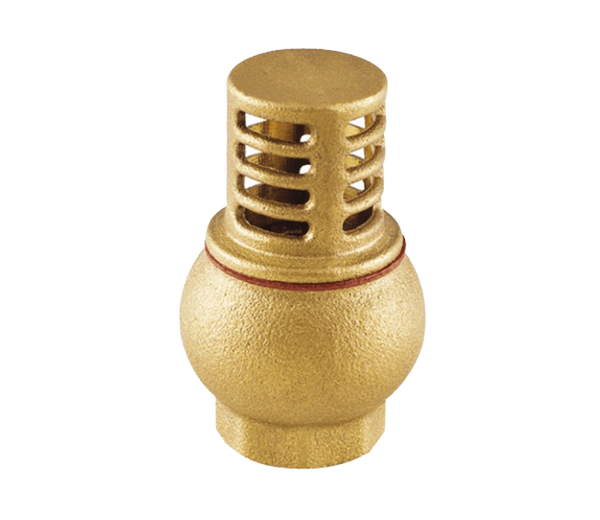

FIVC FOOT VALVE

FFV_B10_S21 – Brass body – PN 10 – ISO 228

The FIVC Foot Valve is designed to be installed in suction lift applications and functions as a check valve with an integrated strainer. It is designed as a spring-assisted and single-direction valve that protects the pump by eliminating the return of pressurized fluid and simultaneously prevents solid impurities from entering the pump.

This valve is suitable for Water, Oil, and Gas.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Filtration. Elimination of the return of pressurized fluid.
Threading: ISO 228
USP: Valuable component providing several benefits, including improved efficiency, pump protection, and ease of installation and maintenance.

MAIN MATERIALS

Body: Brass CW614N
Gasket: Fiber
Cover: Brass CW614N
Disc: Brass CW614N
Disc face: NBR

FIELD OF APPLICATION

Max. temperature: 110 °C
Max. working pressure: 10 bar
Media: Water, Oil, and Gas

DECLARATION

The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
