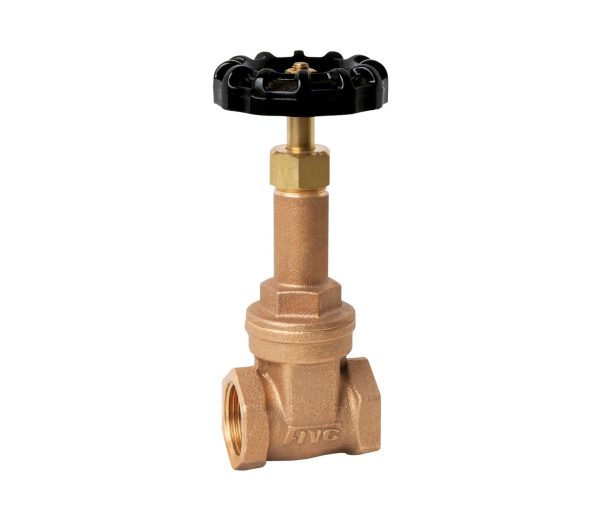

FIVC GATE VALVE

FGA_O20_RS21 – Bronze – PN 20 – Screwed Bonnet – Rising Stem – ISO 228

The FIVC Gate Valve is designed to be installed in pipelines only for isolating purposes.

The gate valve provides a shut-off function and should operate in fully open or fully closed positions and should not be used as a control-, or regulating valve.

The OS&Y structure is advantageous for both the lubrication of the stem, the easiness of maintaining the packing gland, the easiness of insulation, and the visibility of its open and closed position. Besides, this structure requires lower operating torques leading to economic advantages for manual operation. Furthermore, they provide a longer lifespan since the stem is kept out of the media, preventing them from erosion.

This gate valve is suitable for Water, Oil, and Gas, and is WRAS-approved.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Manual operated ON/OFF by wheel rotation
Model: Rising stem
Bonnet: Screwed
Thread: BSPP/ ISO 228
Design: BS EN 5154
USP: WRAS-approved. Excellent tightness. Minimum pressure loss. Longer lifetime.

MAIN MATERIALS

Body: Bronze CC491K
Bonnet: Bronze CC491K
Wedge: Bronze CC491K
Stem: DZR Brass CW602N
Seat: Integral seat

FIELD OF APPLICATION

Max. temperature: 170 °C
Max. working pressure: 20 bar
Media: Water, Oil, and non-dangerous Gas.

DECLARATION

A sound engineering practice (SEP) inspection and testing have been performed on this product. In accordance with European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is not required to be CE marked (Cf. Article 4.3).
