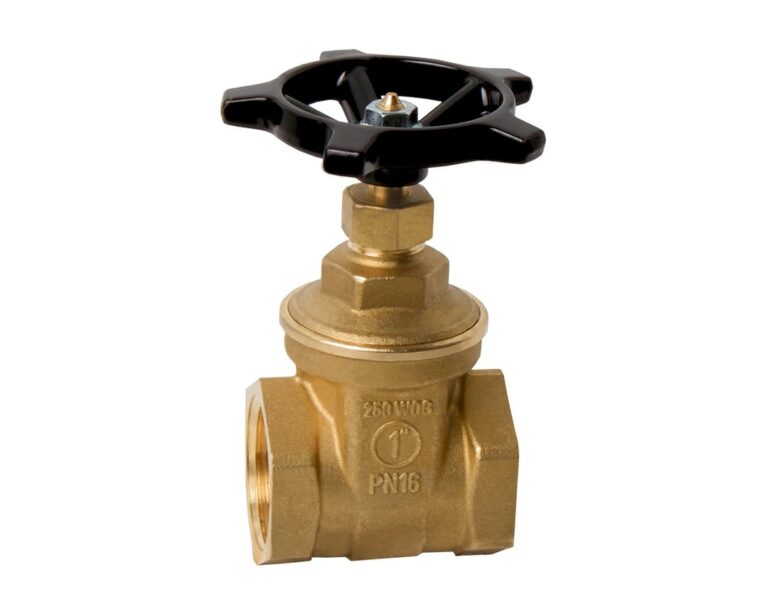

FIVC GATE VALVE
FGA_B16 - Brass - PN 16 - NRS - ISO 228
The FIVC Gate Valve is designed to be installed in pipelines only for isolating purposes.
The gate valve provides a shut-off function and should operate in fully open or fully closed positions and should not be used as a control-, or regulating valve.
This gate valve is suitable for cold/hot water and steam at low pressure.
The gate valve provides a shut-off function and should operate in fully open or fully closed positions and should not be used as a control-, or regulating valve.
This gate valve is suitable for cold/hot water and steam at low pressure.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent flow isolation
- Minimum pressure loss
- Longer lifetime
- Slow operation; Prevents the water hammer phenomenon
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Manual operated ON/OFF by wheel rotation
Model: Non-rising-Stem
Bonnet: Screwed
Thread: BSPP/ ISO 228
USP: Excellent tightness. Minimum pressure loss. Longer lifetime.
MAIN MATERIALS
Body: Brass CW617N
Bonnet: Brass CW617N
Wedge: Brass CW617N
Stem: Brass CW617N
Seat: Integral seat
Handwheel: Aluminium
FIELD OF APPLICATION
Temperature range: 5 to 110 °C
Max. working pressure: 16 bar (at 23 °C) and 10 bar (at 95 °C)
Media: Cold and hot water. Steam.
DECLARATION
A sound engineering practice (SEP) inspection and testing have been performed on this product. In accordance with European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is not required to be CE marked (Cf. Article 4.3).

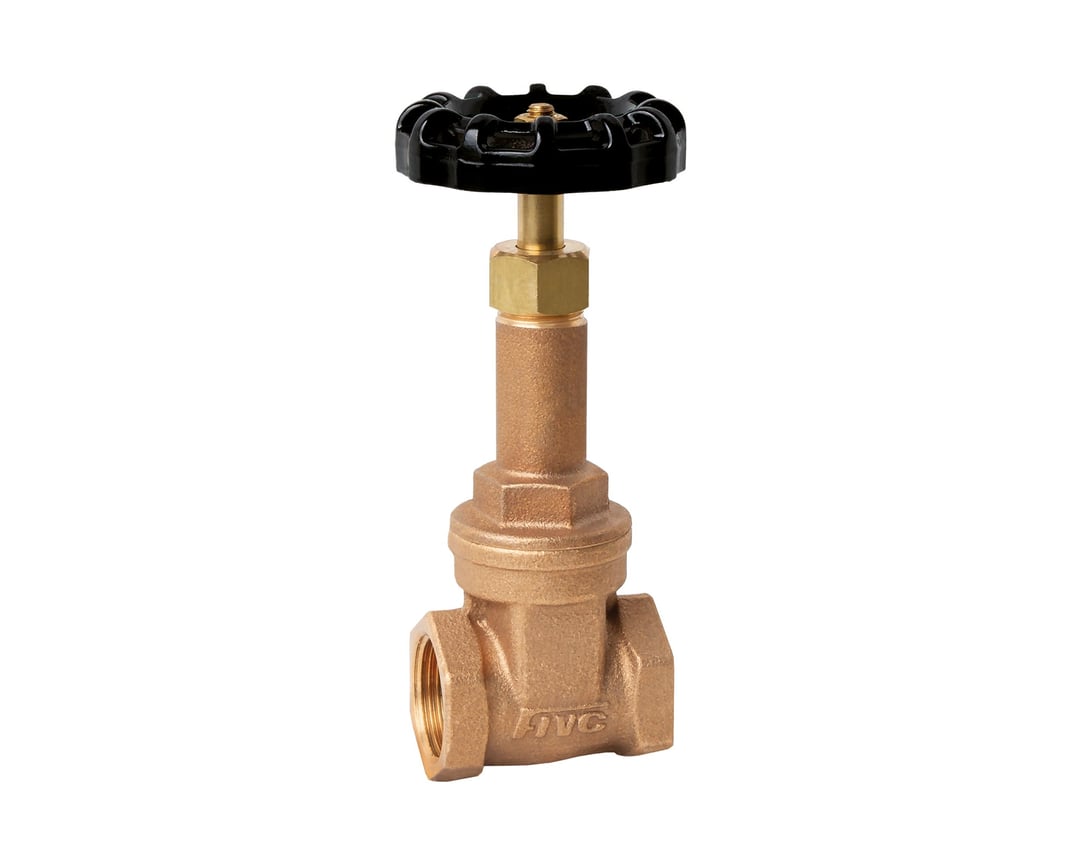

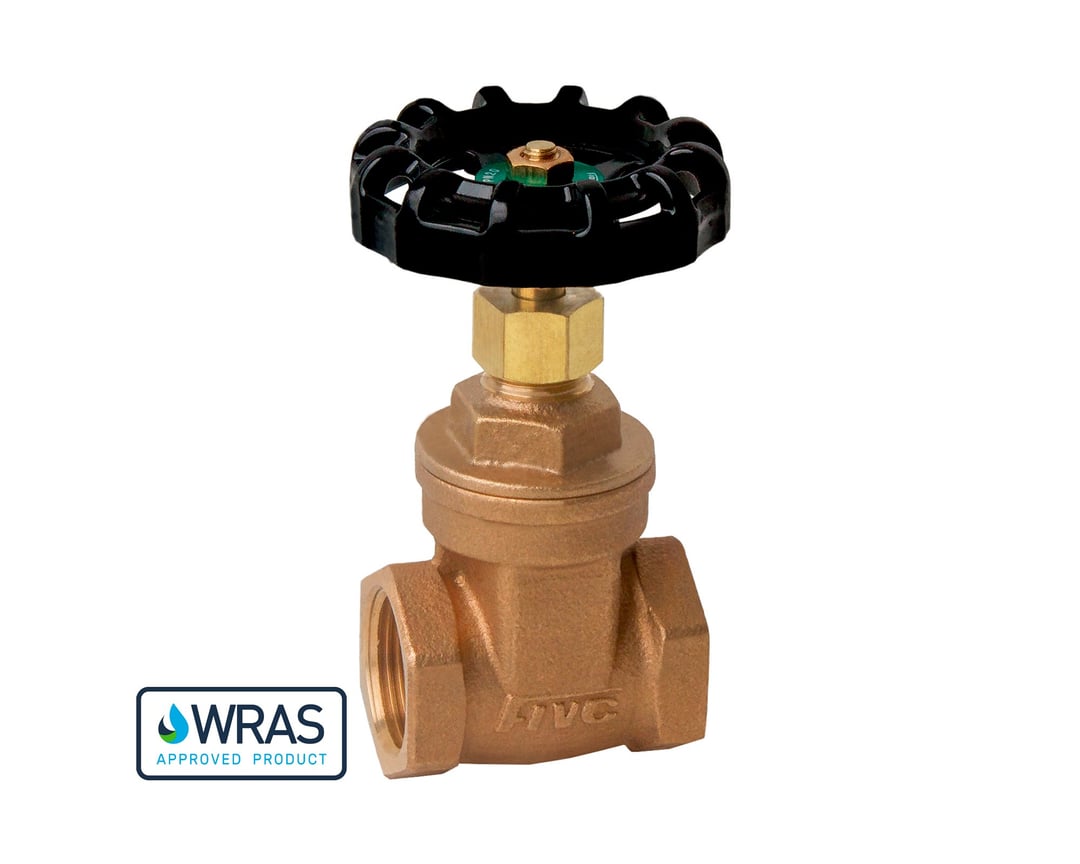

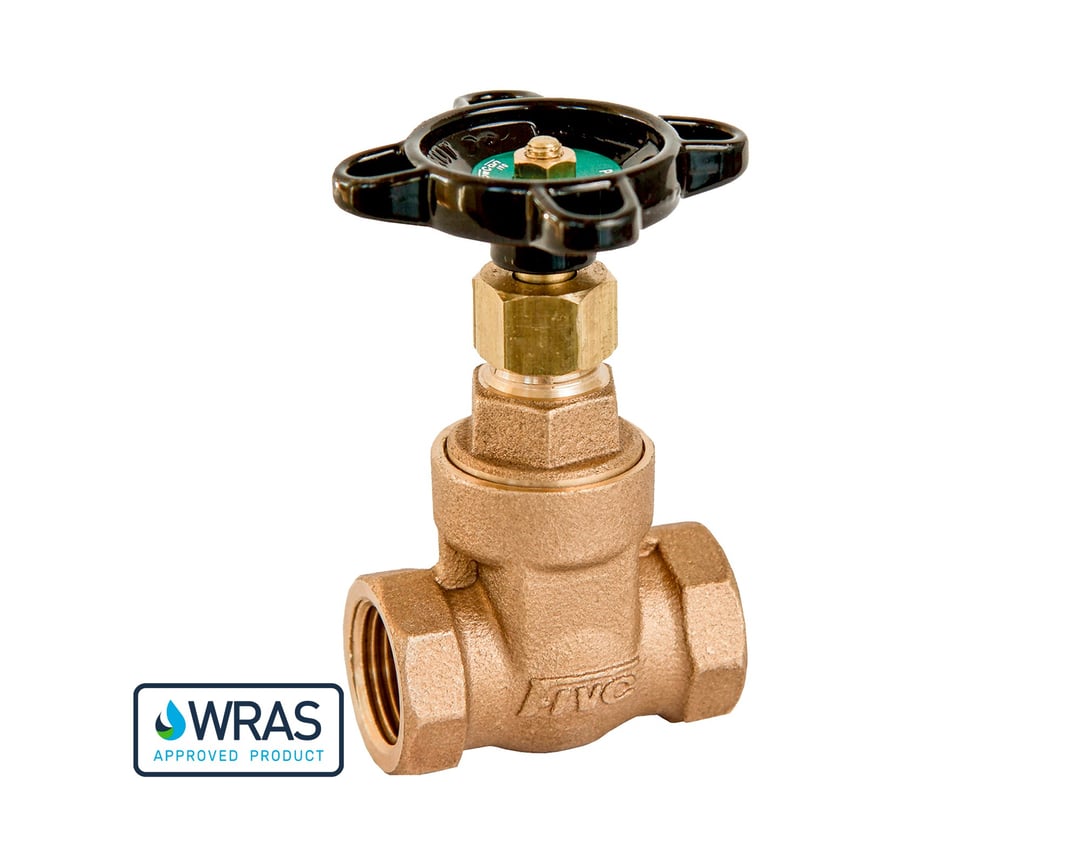

RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
