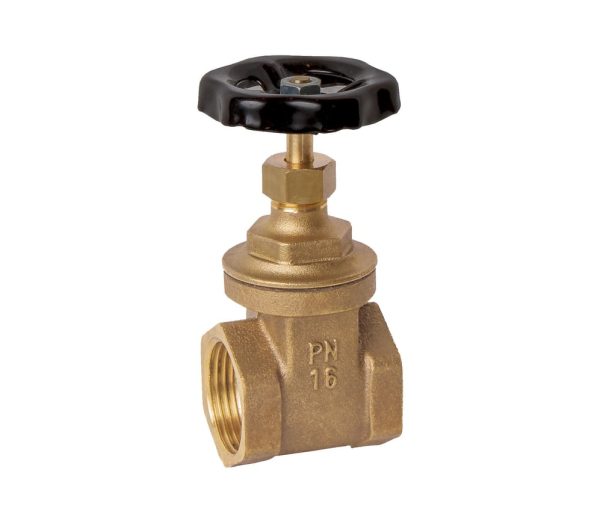

FIVC GATE VALVE
FGA_O16_NS01 - Bronze – PN 16 – Screwed Bonnet – Non-Rising-Stem – ISO 228
The FIVC Gate Valve is designed to be installed in pipelines only for isolating purposes.
The gate valve provides a shut-off function and should operate in fully open or fully closed positions and should not be used as a control-, or regulating valve.
This gate valve is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent flow isolation
- Minimum pressure loss
- Longer lifetime
- Slow operation; Prevents the water hammer phenomenon
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Manual operated ON/OFF by wheel rotation
Model: Non-rising-Stem
Bonnet: Screwed
Thread: BSPP/ ISO 228
USP: Excellent tightness. Minimum pressure loss.
MAIN MATERIALS
Body: Bronze SN 5
Bonnet: Brass CW617N
Wedge: Brass DELTA CS
Stem: Brass CW614N
Seat: Integral seat
Handwheel: Steel
FIELD OF APPLICATION
Temperature range: 0 to 80 °C
Max. working pressure: 16 bar
Media: Water
DECLARATION
A sound engineering practice (SEP) inspection and testing have been performed on this product. In accordance with European PED Directive No. 2014/68/EU, dated 15/05/2014, the product is not required to be CE marked (Cf. Article 4.3).
RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products
