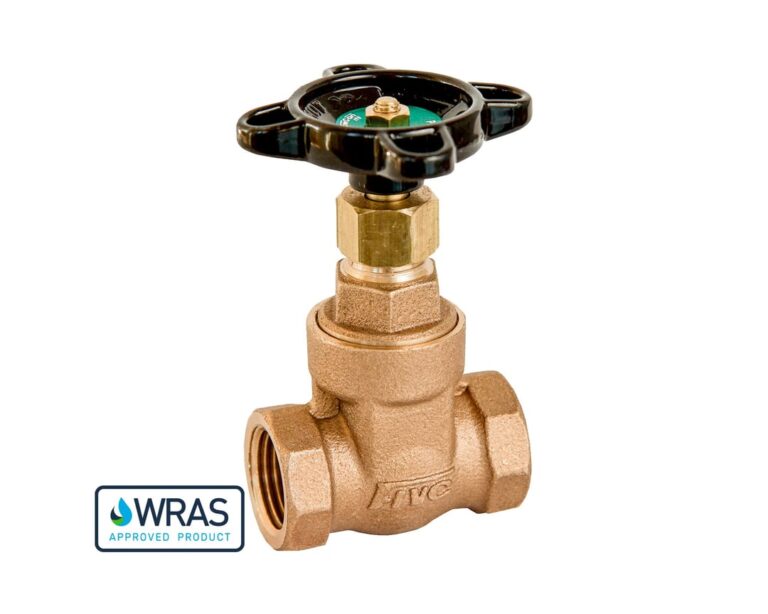

FIVC GATE VALVE
FGA_O20_NS21 - Bronze – PN 20 – Screwed Bonnet – Non-Rising-Stem – WRAS – ISO 228
The FIVC Gate Valve is designed to be installed in pipelines only for isolating purposes.
The gate valve provides a shut-off function and should operate in fully open or fully closed positions and should not be used as a control-, or regulating valve.
This gate valve is suitable for cold/hot water and steam at low pressure.
The gate valve provides a shut-off function and should operate in fully open or fully closed positions and should not be used as a control-, or regulating valve.
This gate valve is suitable for cold/hot water and steam at low pressure.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent flow isolation
- Minimum pressure loss
- Longer lifetime
- Slow operation; Prevents the water hammer phenomenon
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Manual operated ON/OFF by wheel rotation
Model: Non-rising-Stem
Bonnet: Screwed
Thread: BSPP/ ISO 228
USP: WRAS approved. Excellent tightness. Minimum pressure loss.
MAIN MATERIALS
Body: Bronze CC491K
Bonnet: Bronze CC491K
Wedge: Bronze CC491K
Stem: DZR Brass CW602N
Seat: Integral seat
FIELD OF APPLICATION
Max. temperature: 170 °C
Max. working pressure: 20 bar
Media: Drinking Water, Oil, and Gas.
DECLARATION
A sound engineering practice (SEP) inspection and testing have been performed on this product. In accordance with European PED Directive No 2014/68/EU, dated 15/05/2014, the product is not required to be CE marked (Cf. Article 4.3).
WRAS approved.
WRAS approved.
