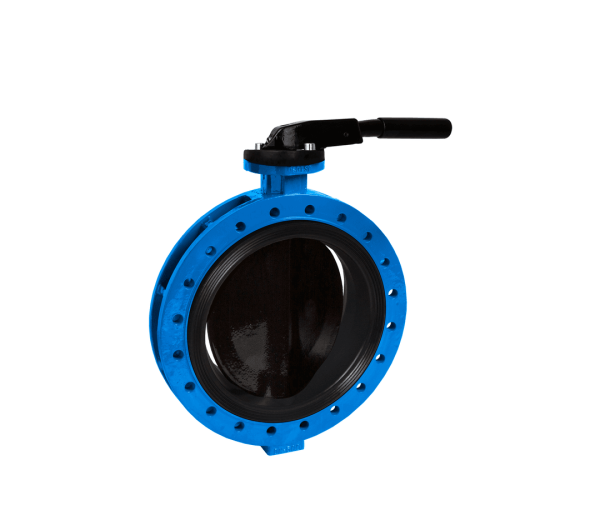

FIVC U-FLANGED BUTTERFLY VALVE

FLANU3_MNENG_2509 – Ductile Iron body and disc – PN 25 – U-Flanged – Hand lever – Glued – Pinless – EN 1092-2

FIVC U-Flanged Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.

This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges.

It operates through its high-quality gearbox providing comfortable and smooth flow-regulating and isolating.

This valve is suitable for water.

FLANU3-MNENG-2509-6
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Regulating and isolating. Up to 90° turn movement.
Model: U-Flanged
Drilling: PN 25
Shaft: SS AISI 420/1.4542
Thread: Metric
Seat: Glued
Construction: Pinless
External operator: Hand lever
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20)
Tests: Hydraulic test acc. to 12266-1
Open valve: 37.5 Kg/cm3
Closed valve: 27.5 kg/cm3
USP: Bubble-tight, cost-efficient, small size, small driving torque, easy operation, and fast-acting.

MAIN MATERIALS

Asset-7

Body: Ductile Iron
Disc: Ductile Iron
Stem: Stainless Steel
Seat: Glued EPDM
Hand lever: Malleable Iron
Coating: Epoxy RAL 5015 (120 μ)

FIELD OF APPLICATION

Asset-7

Temperature range: -20 to 110° C
Max. working pressure: 25 bar
Media: Water

DECLARATION

Asset-7
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, Schedule 4, Module H, dated 15/05/2014, and is CE marked.
RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

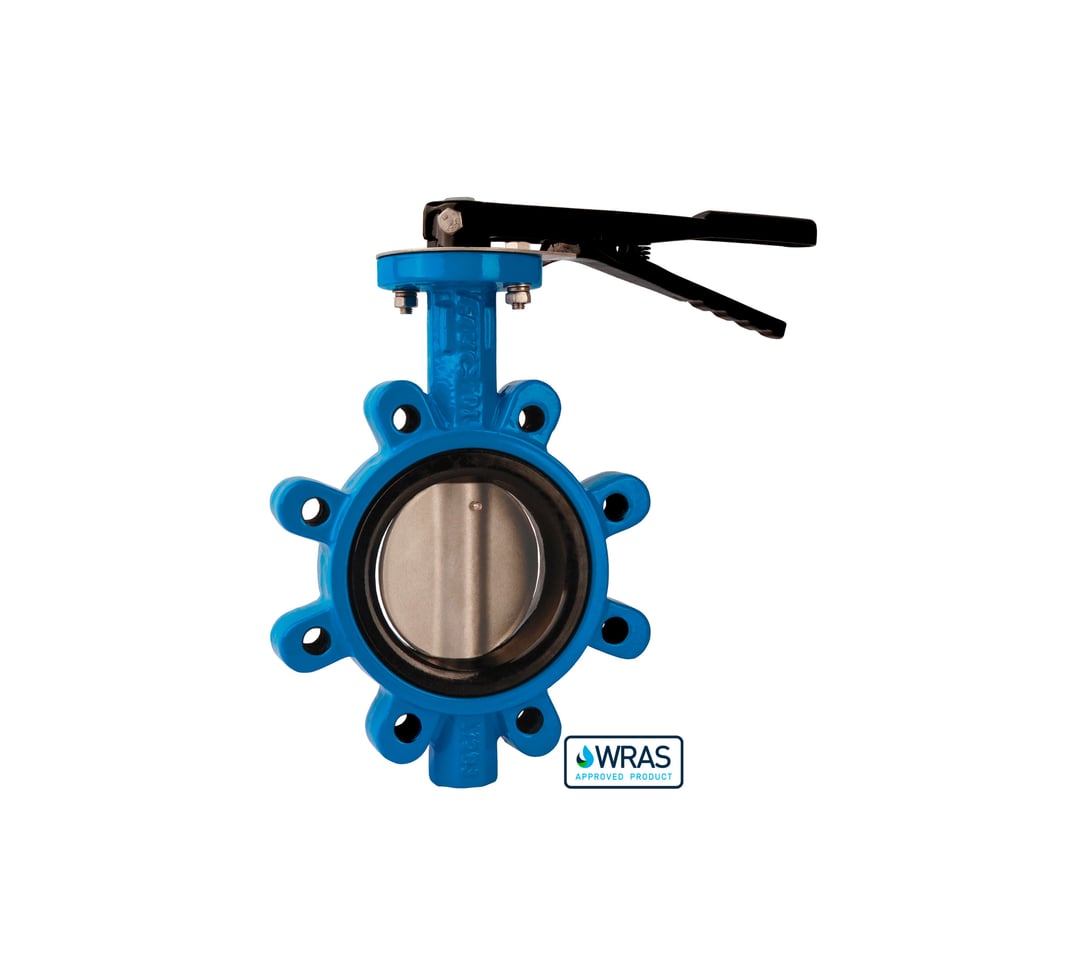

Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Hand lever – Replaceable – w/Pin – WRAS – EN 1092-2

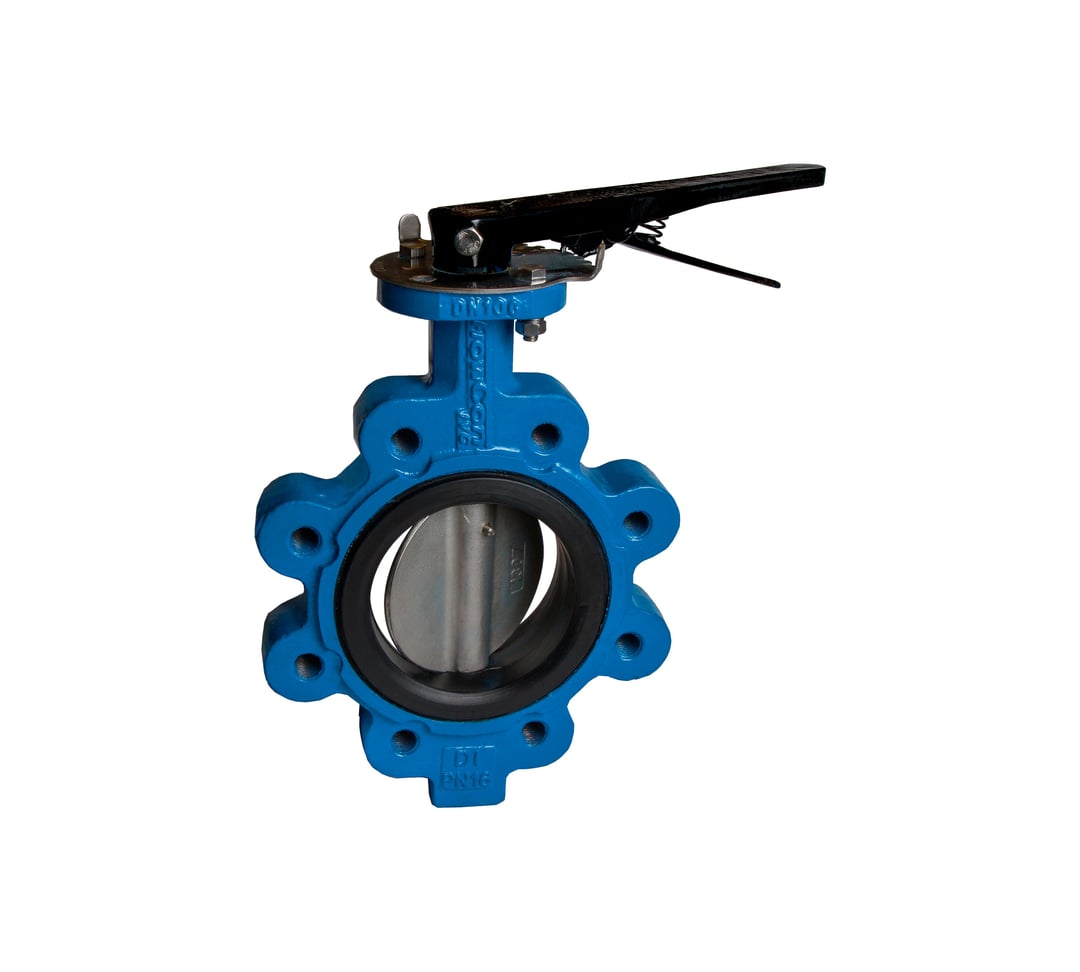

Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Hand lever – Vulcanized – w/Pin – EN 1092-2

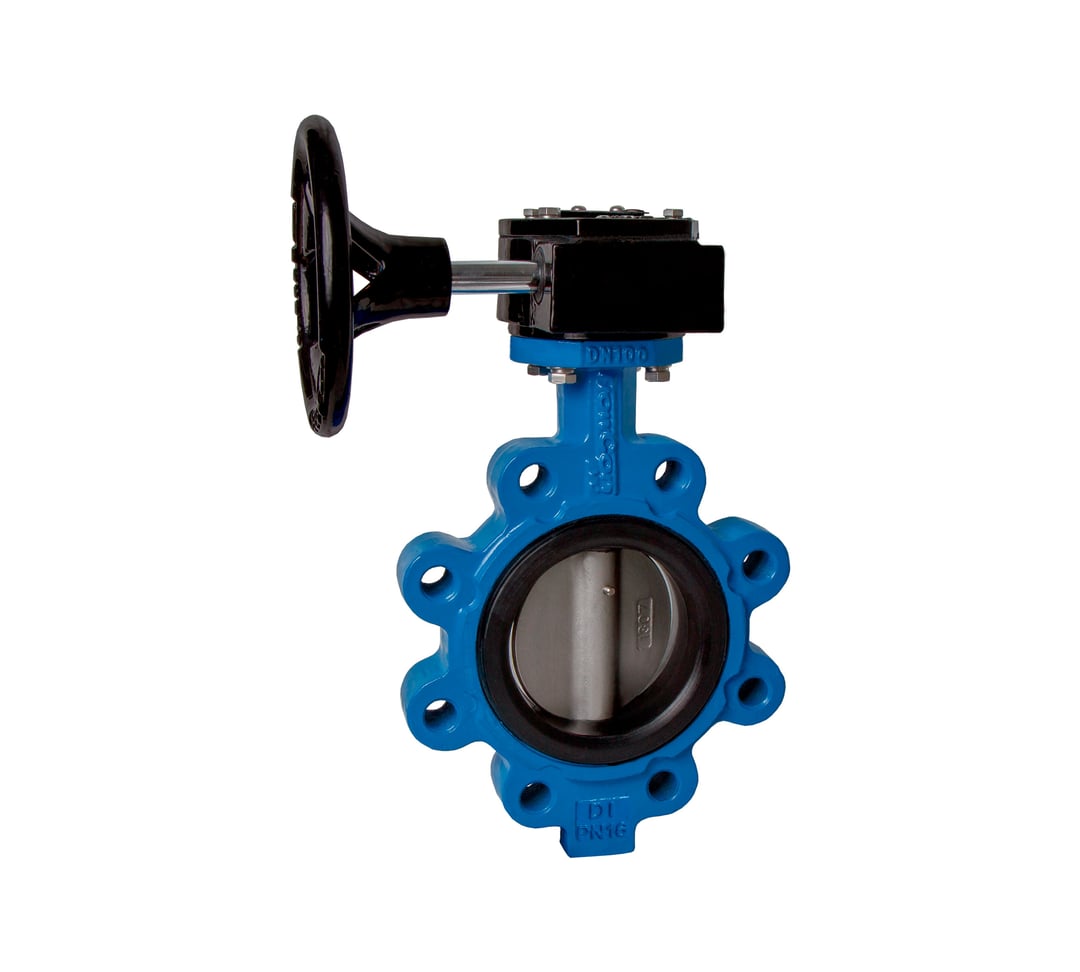

Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Gearbox – Vulcanized – w/Pin – EN 1092-2
