FIVC U-FLANGED BUTTERFLY VALVE
FLANU4_MDVENR_1604 – Ductile Iron body – Alu Bronze disc – PN 16 – U-Flanged – Gearbox – Replaceable – Pinless – EN 1092-2
It operates through its high-quality gearbox providing comfortable and smooth flow-regulating and isolating.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- Cost-efficient
- Small size and light in weight
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: U-Flanged
Drilling: ANSI 150
Shaft: SS AISI 420
Thread: UNC
Seat: Replaceable
Construction: Pinless
External operator: Gearbox
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20)
Top flange: ISO 5211/NFE 29-402
Tests: Hydraulic test acc. to 12266/ISO 5208
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Alu-Bronze
Stem: Stainless Steel
Seat: Replaceable EPDM
Gearbox: Ductile Iron
Coating: Epoxy 120 microns
FIELD OF APPLICATION
Temperature range: -20 to 110° C
Max. working pressure: 16 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products.
Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Hand lever – Replaceable – w/Pin – WRAS – EN 1092-2
Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Hand lever – Vulcanized – w/Pin – EN 1092-2

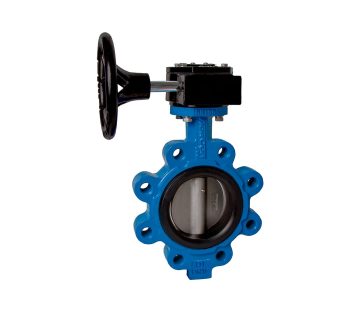

Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Gearbox – Vulcanized – w/Pin – EN 1092-2
