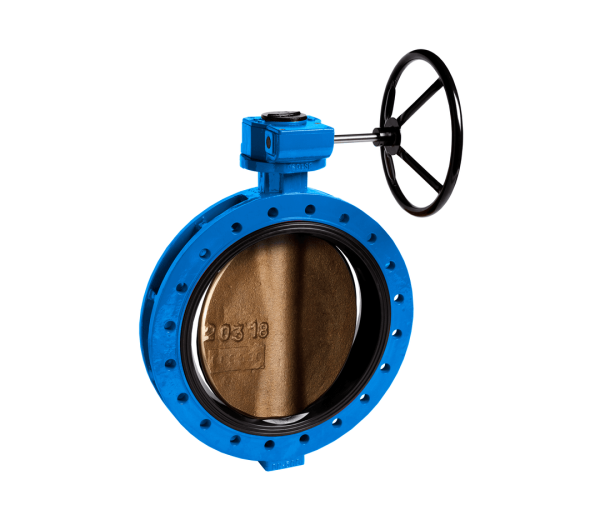

FIVC U-FLANGED BUTTERFLY VALVE
FLANU4_MDVEPV_1015 – Ductile Iron body – Alu Bronze disc – PN 10 – U-Flanged – Gearbox – Vulcanized – Pin – Metric – EN 1092-2
FIVC U-Flanged Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.
It operates through its high-quality gearbox providing comfortable and smooth flow-regulating and isolating.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- Cost-efficient
- Small size and light in weight
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: U-Flanged
Drilling: PN 10
Shaft: SS 431
Thread: Metric
Seat: Vulcanized
Construction: Pin
External operator: Gearbox
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20)
Tests: Hydraulic test acc. to 122661
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Alu-Bronze
Stem: Stainless Steel
Seat: EPDM Vulcanized
Gearbox: Ductile Iron
Coating: Epoxy
FIELD OF APPLICATION
Temperature range: -15 to 120° C
Max. working pressure: 10 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
