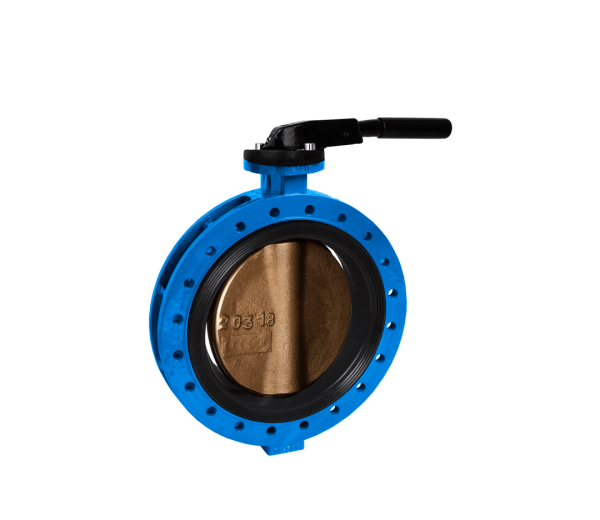

FIVC U-FLANGED BUTTERFLY VALVE
FLANU4_MNENG_2509 – Ductile Iron body – Alu Bronze disc – PN 25 – U-Flanged – Hand lever – Glued – EN 1092-2
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- Cost-efficient
- Small size and light in weight
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: U-Flanged
Drilling: PN 25
Shaft: SS AISI 420/1.4542
Thread: Metric
Seat: Glued
Construction: Pinless
External operator: Hand lever
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20)
Tests: Hydraulic test acc. to 12266-1
Resistance:
Open valve: 37.5 Kg/cm3
Closed valve: 27.5 kg/cm3
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Alu-Bronze
Stem: Stainless Steel
Seat: Glued EPDM
Gearbox: Ductile Iron
Coating: Epoxy 120 microns
FIELD OF APPLICATION
Temperature range: -20 to 110° C
Max. working pressure: 25 bar
Media: Water
DECLARATION
RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products.
