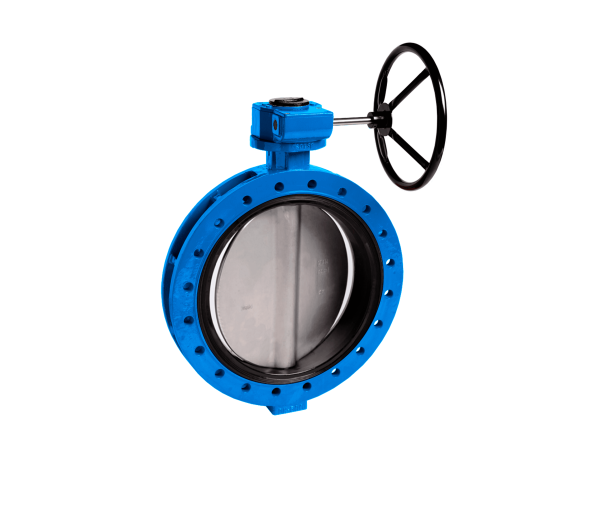

FIVC U-FLANGED BUTTERFLY VALVE
FLANU5_MDVEPV_1623 – Ductile Iron body – Stainless Steel disc – PN 16 – U-Flanged – Gearbox – Vulcanized – w/Pin – EN 1092-2
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- Cost-efficient
- Small size
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: U-Flanged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 431
Thread: Metric
Seat: Vulcanized
Construction: With pin
External operator: Gearbox
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558 (series 20)
Tests: Hydraulic test acc. to 12266-1
USP: Bubble-tight, cost-efficient, small size, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Stainless Steel
Stem: Stainless Steel
Seat: Vulcanized EPDM
Gearbox: Ductile Iron
Coating: Epoxy RAL 5015 250 microns
FIELD OF APPLICATION
Temperature range: -15 to 120° C
Max. working pressure: 16 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
