FIVC TRIPLE DUTY VALVE

FTDVS_C16_214 – Grey Cast Iron – PN 16 – Straight – EN 1092-2

The FIVC Triple Duty Valve is designed as a 3-in-1 valve to be installed in pipelines to provide multiple functionalities replacing a regulation valve, non-return valve, and an isolation valve.

This valve is suitable for Water, Oil, and Gas.
FTDVS065C16214-3
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

PDF-file-icon.svg-1-244x300
  • 3-in-1 valve
  • Ensure system protection
  • Excellent closing
  • Faster and simpler installation
  • Space- and economic savings
  • Integrated positioning indicator
Asset-7
CUSTOMIZED REQUEST?

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7
Feature: Regulating, isolating, and preventing the return of pressurized fluid.
Model: Straight
Drilling: EN 1092-2 PN 16
Pressure test standard: BS EN 12266-1
​USP: 3-in-1 valve: Functions as a silent check valve, regulating valve, and shut-off valve. Integrated positioning indicator. Cost-efficient, small in size, and easy operation.

MAIN MATERIALS

Asset-7

Body: Grey Cast Iron
Bonnet: Grey Cast Iron
Disc: Ductile Iron+EPDM
Stem: Stainless Steel ASTM 410
Handwheel:
DN 50-300: Carbon Steel
DN 350-500: Grey Cast Iron

FIELD OF APPLICATION

Asset-7

Temperature range: -20 to 120 °C
Max. working pressure: 16 bar
Media: Water, Oil, and Gas

DECLARATION

Asset-7
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014.
RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7
DATASHEET
OMI MANUAL
Industrial-water

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

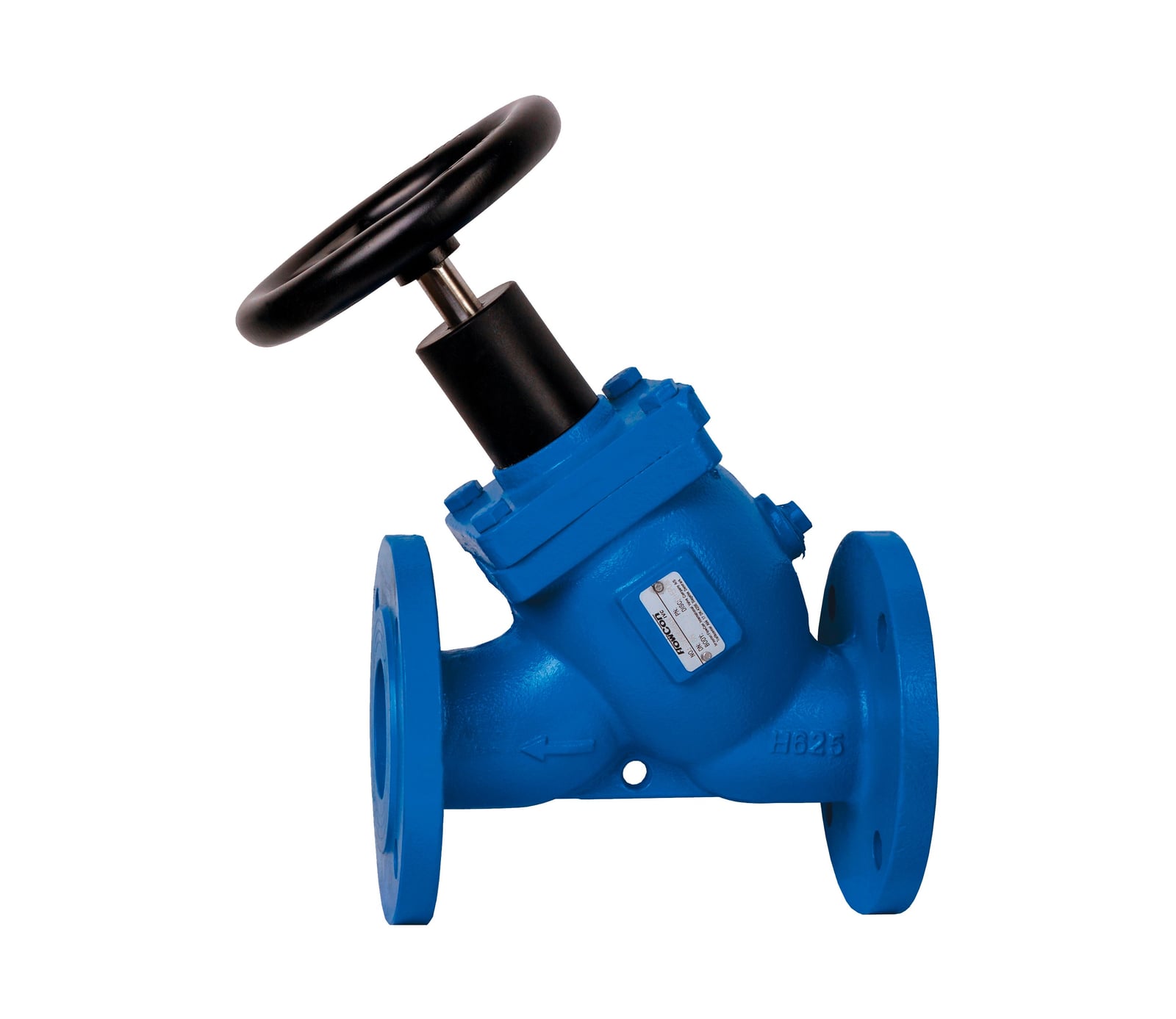

FTDVS_N25_214
Ductile Iron body – PN 25 – Straight – EN 1092-2
PDF

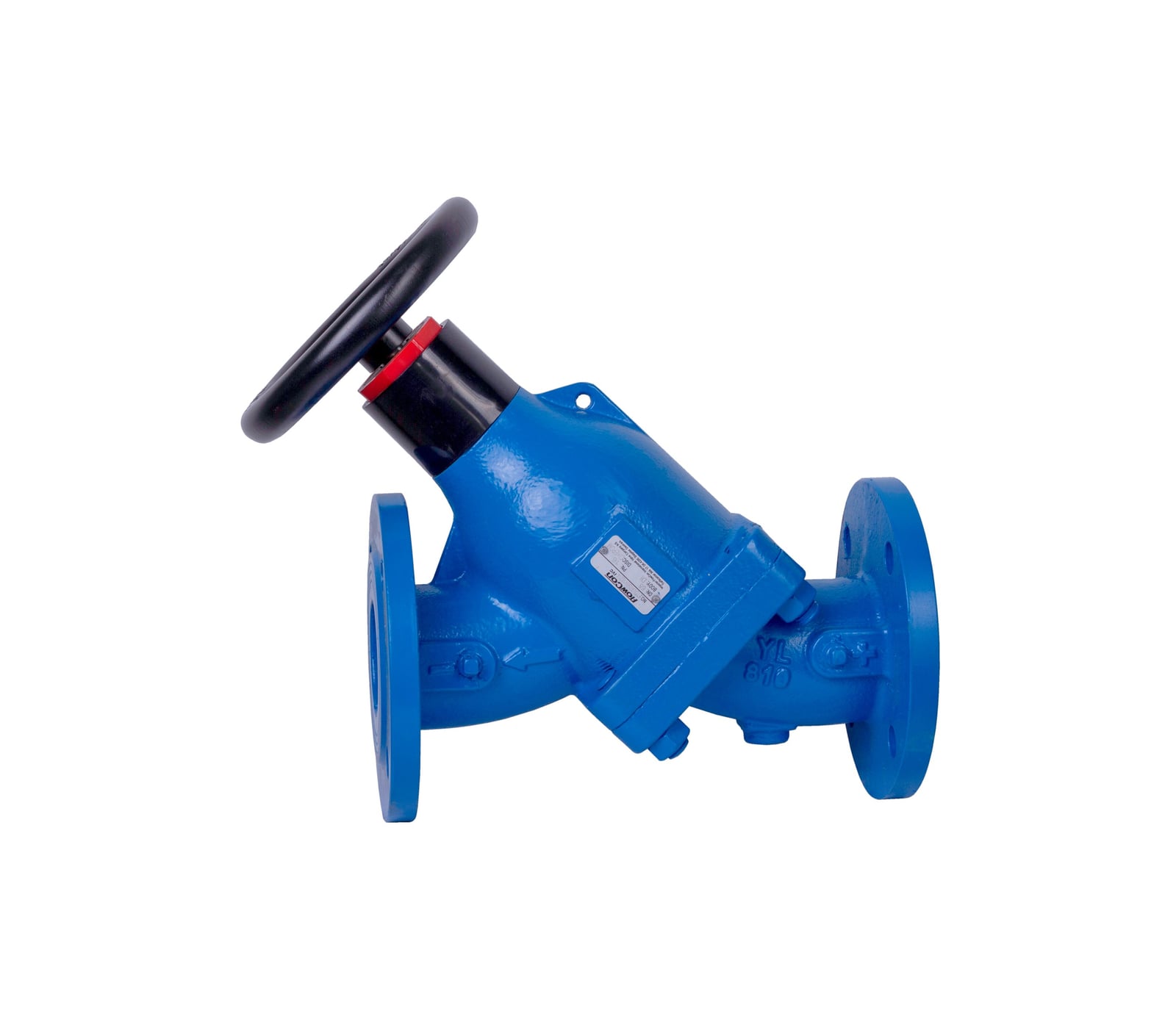

FTDVA_N16_214
Ductile Iron body – PN 16 – Angle – EN 1092-2
PDF
FTDVA_N25_214
Ductile Iron body – PN 25 – Angle – EN 1092-2
PDF
