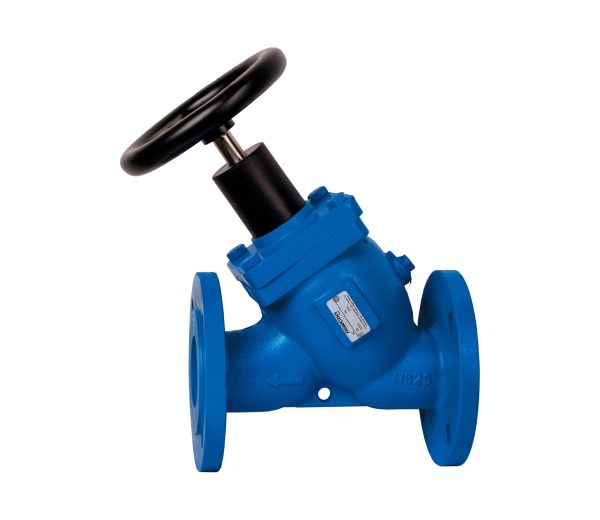

FIVC TRIPLE DUTY VALVE

FTDVS_N25_214 – Ductile Iron – PN 25 – Straight – EN 1092-2

The FIVC Triple Duty Valve is designed as a 3-in-1 valve to be installed in pipelines to provide multiple functionalities replacing a regulation valve, non-return valve, and an isolation valve.
This valve is suitable for Water, Oil, and Gas.
FTDVS065C16214-3
Asset-7

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

PDF
  • 3-in-1 valve
  • Ensure system protection
  • Excellent closing
  • Faster and simpler installation
  • Space- and economic savings
  • Integrated positioning indicator
Asset-7
CUSTOMIZED REQUEST?

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Asset-7

Feature: Regulating, isolating, and preventing the return of pressurized fluid.
Model: Straight
Drilling: EN 1092-2 PN 25
Pressure test standard: BS EN 12266-1
​USP: Three-in-one: Functions as a silent check valve, regulating valve, and shut-off valve. Integrated positioning indicator. Cost-efficient, small in size, and easy operation.

MAIN MATERIALS

Asset-7

Body: Ductile Iron
Bonnet: Ductile Iron
Disc: Ductile Iron+EPDM
Stem: Stainless Steel ASTM 410
Handwheel: Carbon Steel

FIELD OF APPLICATION

Asset-7

Temperature range: -20 to 120 °C
Max. working pressure: 25 bar
Media: Water, Oil, and Gas

DECLARATION

Asset-7
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014.
RELATED DOCUMENTS
Asset-7

DOWNLOADS

Asset-7
DATASHEET
OMI MANUAL

RELATED PRODUCTS

Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products

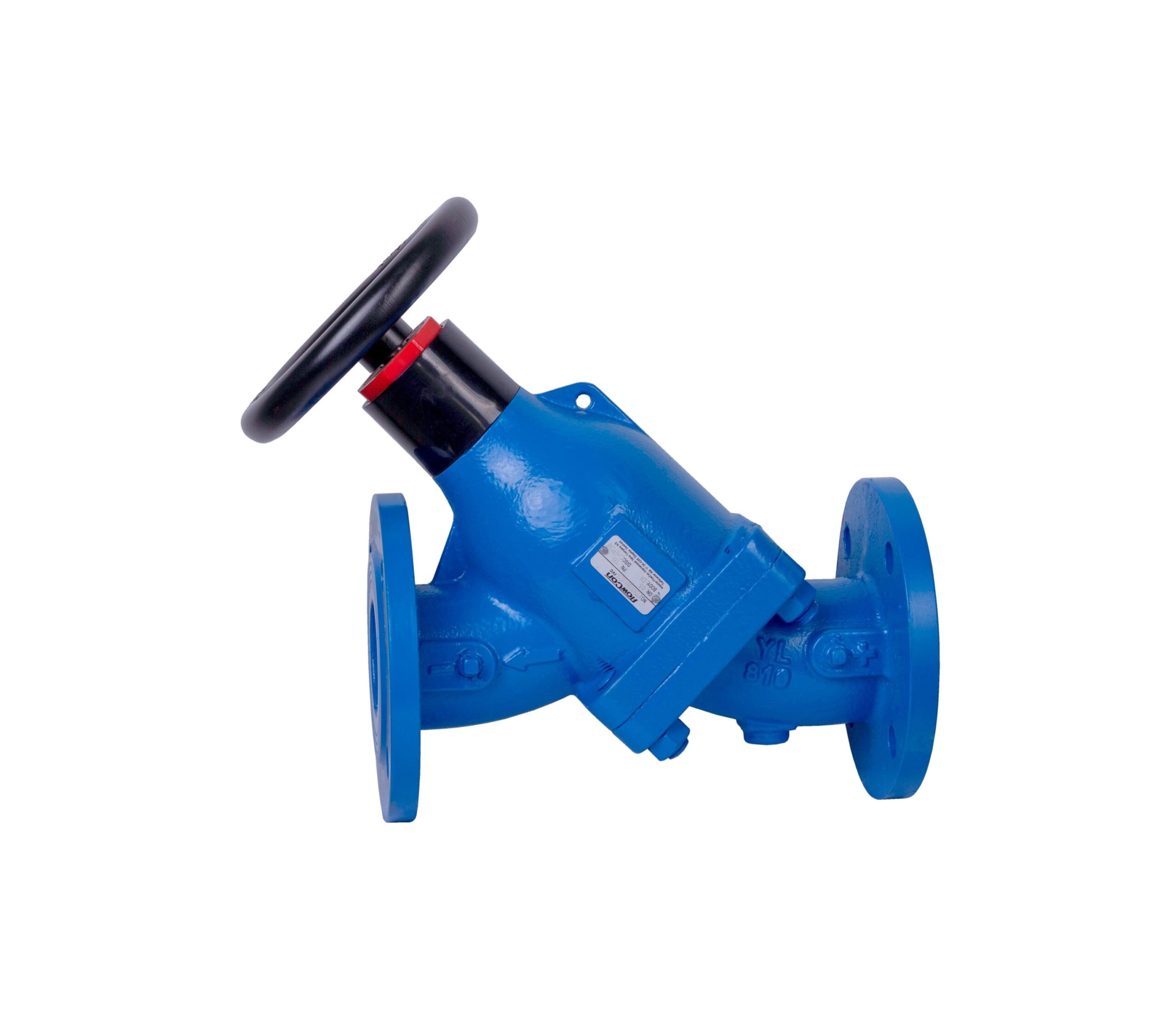

FTDVS_C16_214
Grey Cast Iron body – PN 16 – Straight – EN 1092-2
PDF
FTDVA_N16_214
Ductile Iron body – PN 16 – Angle – EN 1092-2
PDF
FTDVA_N25_214
Ductile Iron body – PN 25 – Angle – EN 1092-2
PDF
