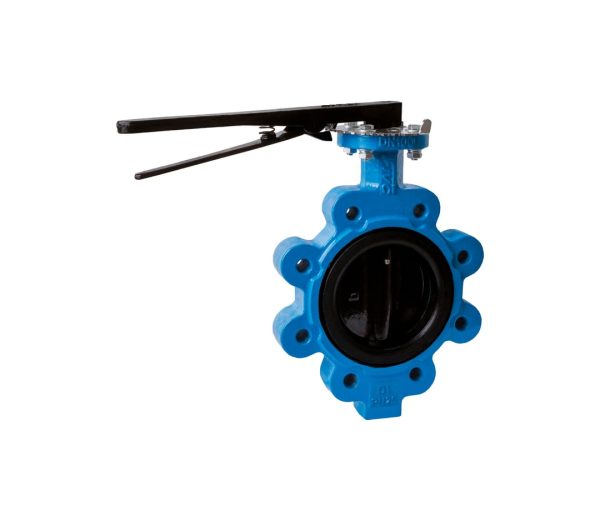

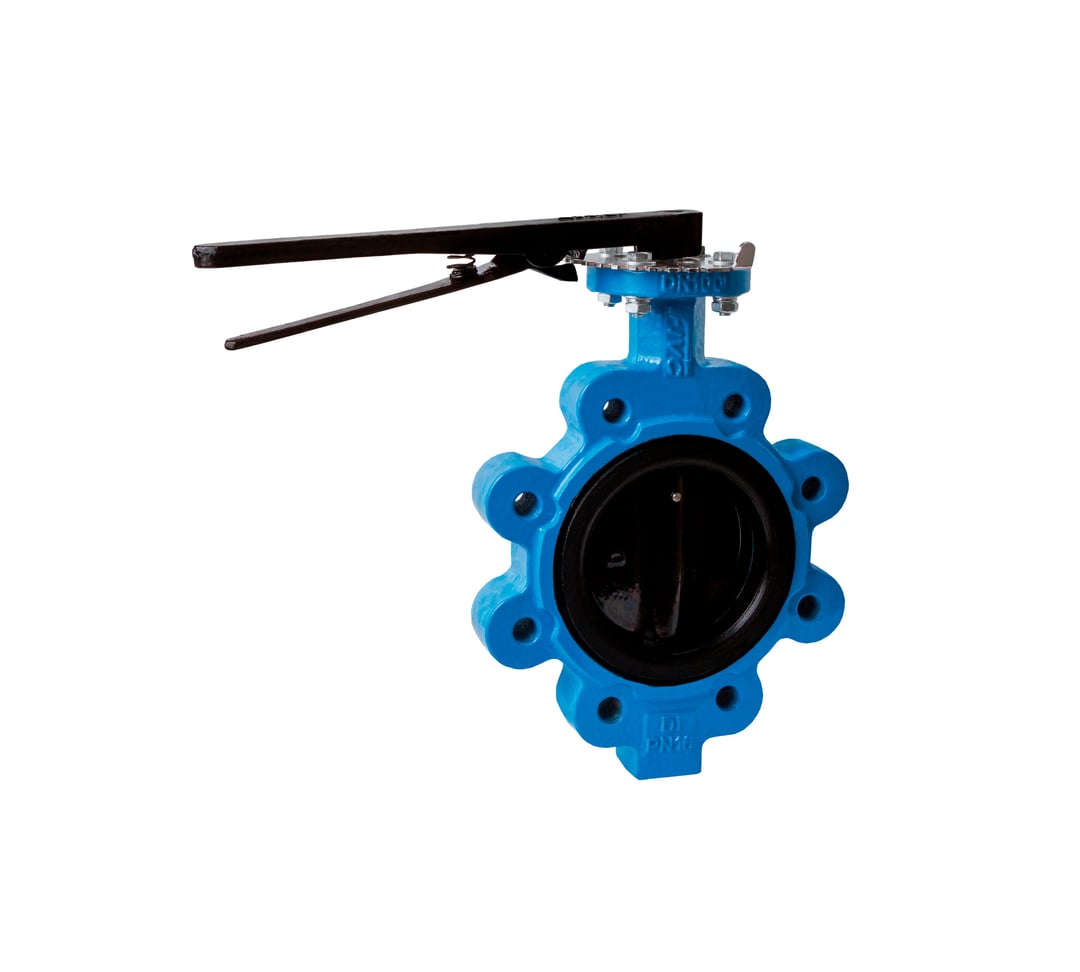

FIVC Lugged Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.
This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges. Butterfly valves with lug-style flanges and vulcanized seats can be used for end-of-line services as well as center-services.
It operates through its robust and comfortable 15° notch hand lever that provides 7 to 10 lock positions.
This valve is suitable for water.
Function and benefits
QUICK DATASHEET DOWNLOAD
Feature: Regulating and isolating. Up to 90° turn movement
Model: Lugged
Drilling: EN 1092-2 PN 25
Shaft: SS AISI 431
Thread: Metric
Seat: Vulcanized
Construction: With pin
External operator: 15° notch hand lever with 7-10 lock positions.
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558 (series 20)
Inspection test: BS EN 12266-1
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
Body: Ductile Iron
Disc: Ductile Iron
Pin: Stainless Steel
Stem: Stainless Steel
Seat: Vulcanized EPDM
Hand lever: Malleable Iron
Coating: RAL 5015 (thickness 250 microns)
Temperature range: -15 to 120° C
Max. working pressure: 25 bar
Media: Water
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products
