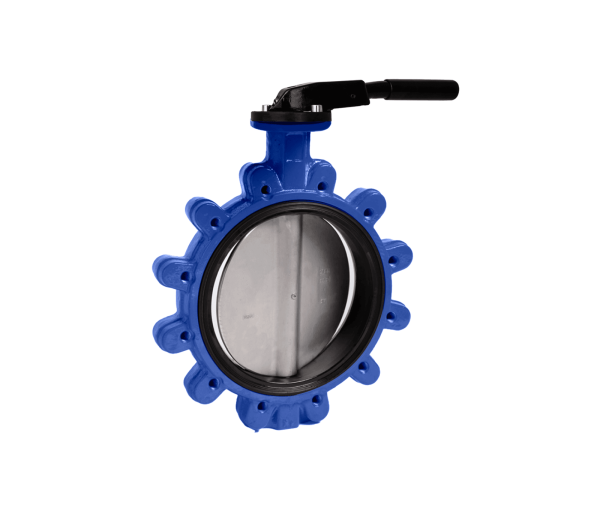

FIVC LUGGED BUTTERFLY VALVE

LUGN5_MNENG_2509 – Ductile Iron body – Stainless Steel disc – PN 25 – Lugged – Hand lever – Glued – Pinless – EN 1092-2

FIVC Lugged Butterfly Valve is designed as a quarter-turn valve to be installed in pipelines for excellent regulating and isolating purposes.

This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges.

It operates through its robust and comfortable 15° notch hand lever that provides 7 to 10 lock positions.

This valve is suitable for drinking water.

Function and benefits

In short terms

QUICK DATASHEET DOWNLOAD

LET'S TALK

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 25
Shaft: SS AISI 420/1.4542
Thread: Metric
Seat: Glued
Construction: Pinless
External operator: 15° notch hand lever with 7-10 lock positions.
Standard: BS EN 593
USP: Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.

MAIN MATERIALS

Body: Ductile Iron
Disc: Stainless Steel
Stem: Stainless Steel
Seat: Glued EPDM
Coating: Epoxy

FIELD OF APPLICATION

Temperature range: -20 to 110° C
Max. working pressure: 25 bar
Media: Water

DECLARATION

The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014.

FIVC LUGGED BUTTERFLY VALVE

LUGN5_MNENG_2509 – Ductile Iron body – Stainless Steel disc – PN 25 – Lugged – Hand lever – Glued – Pinless – EN 1092-2

In short terms

MAIN FEATURES AND MATERIALS

TECHNICAL SPECIFICATIONS

MAIN MATERIALS

FIELD OF APPLICATION

DECLARATION

DOWNLOADS

RELATED PRODUCTS

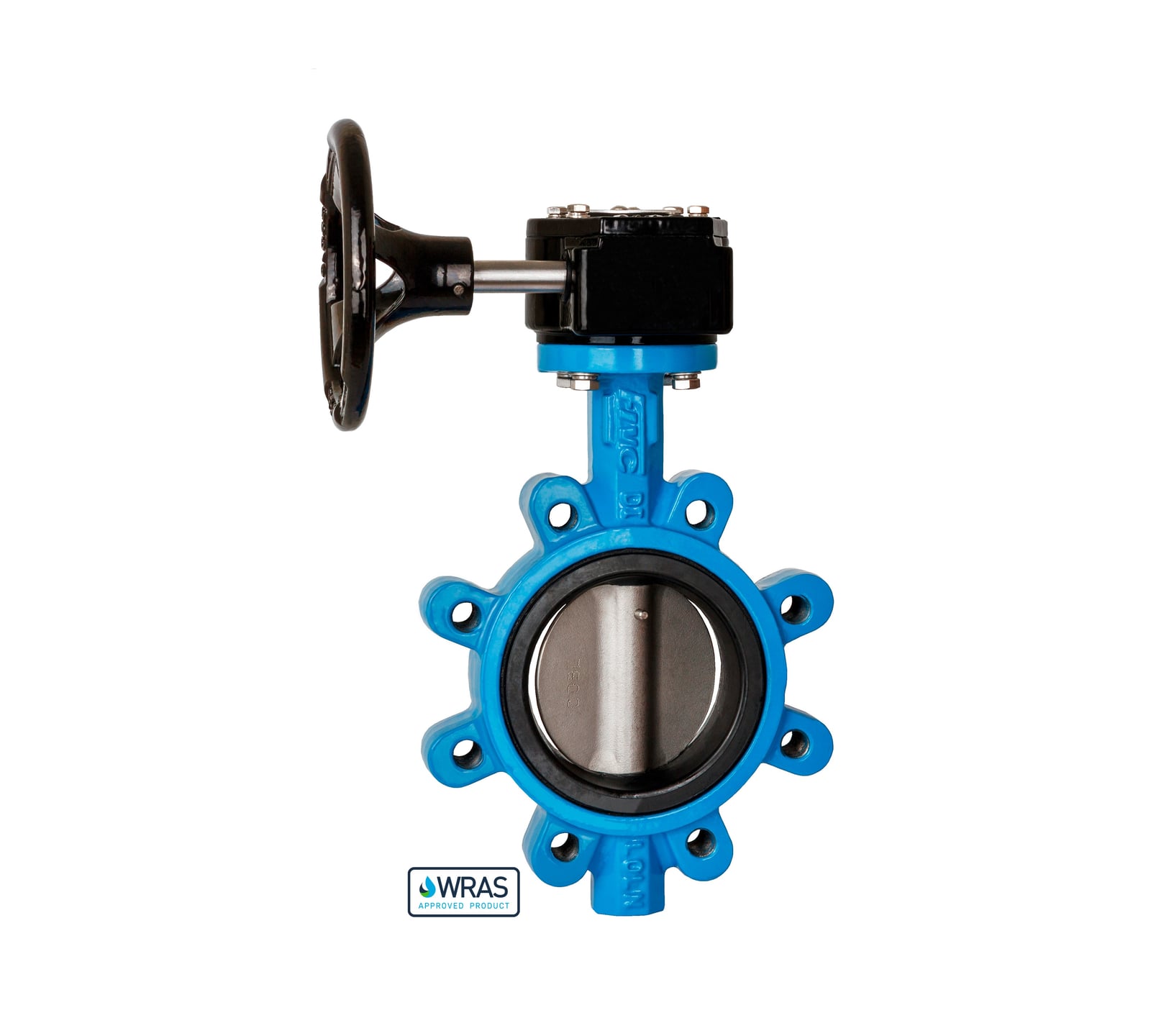

LUGN5_MDVEPR_1683

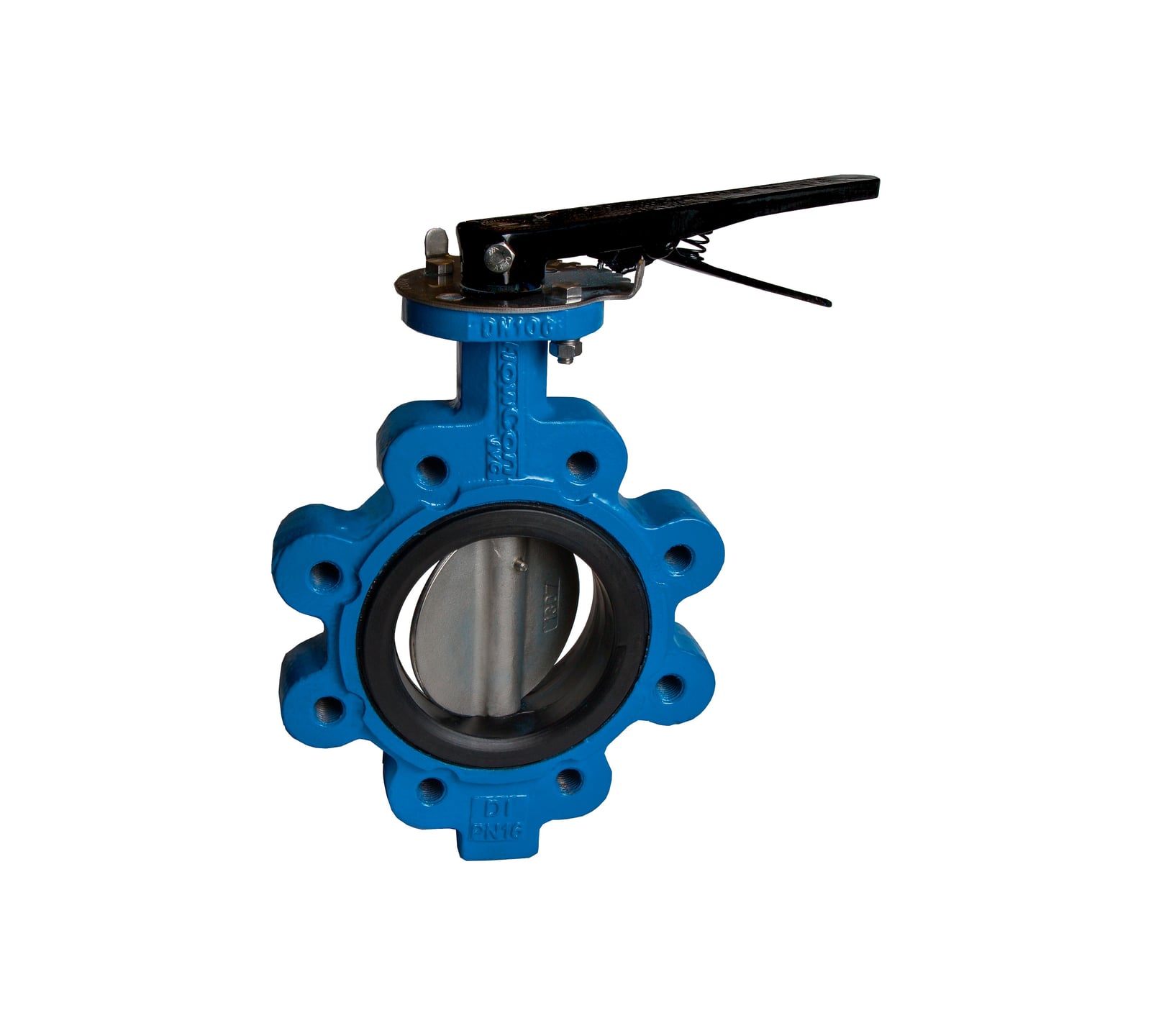

LUGN5_MNEPV_1623

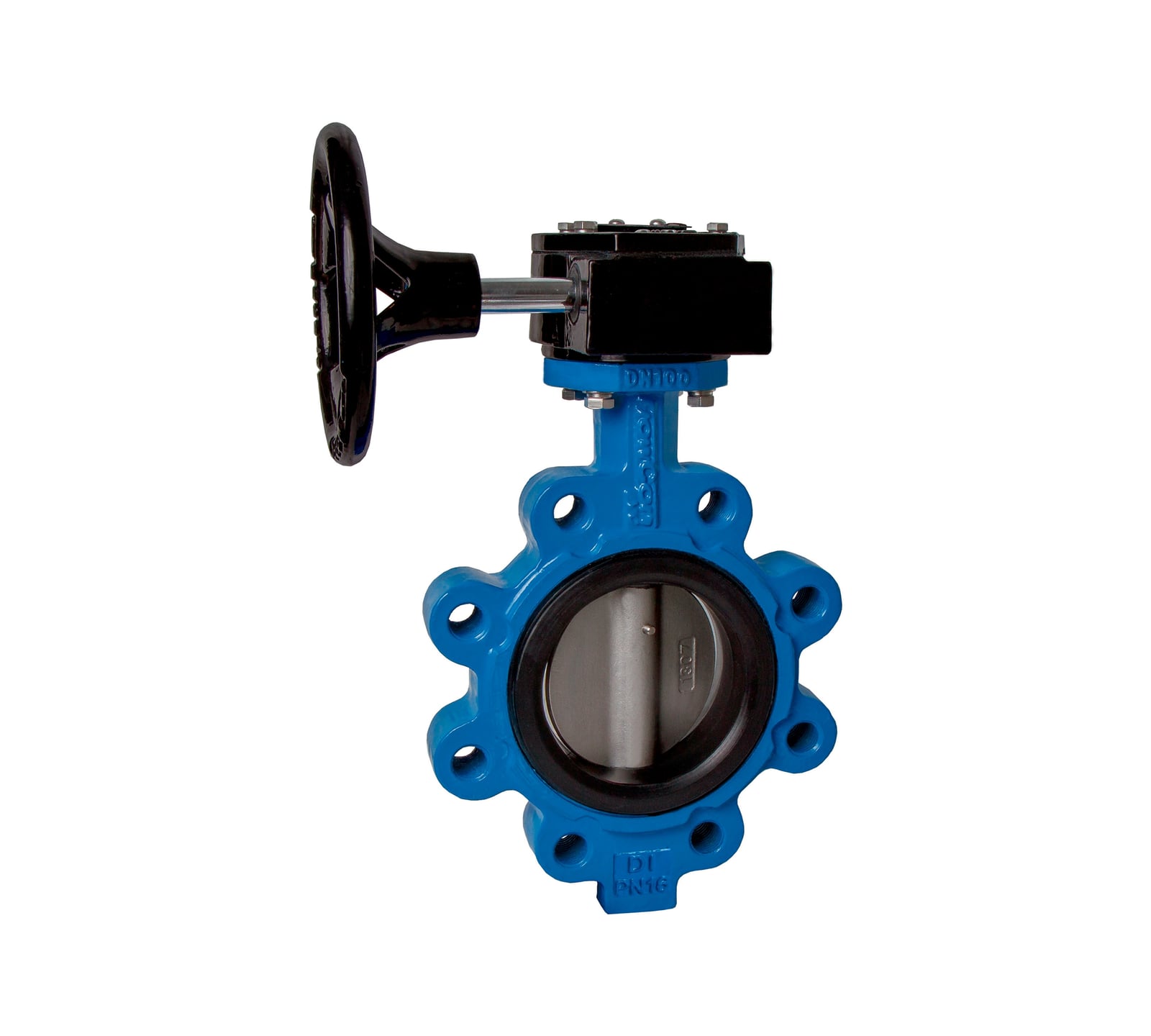

LUGN5_MDVEPV_1623
