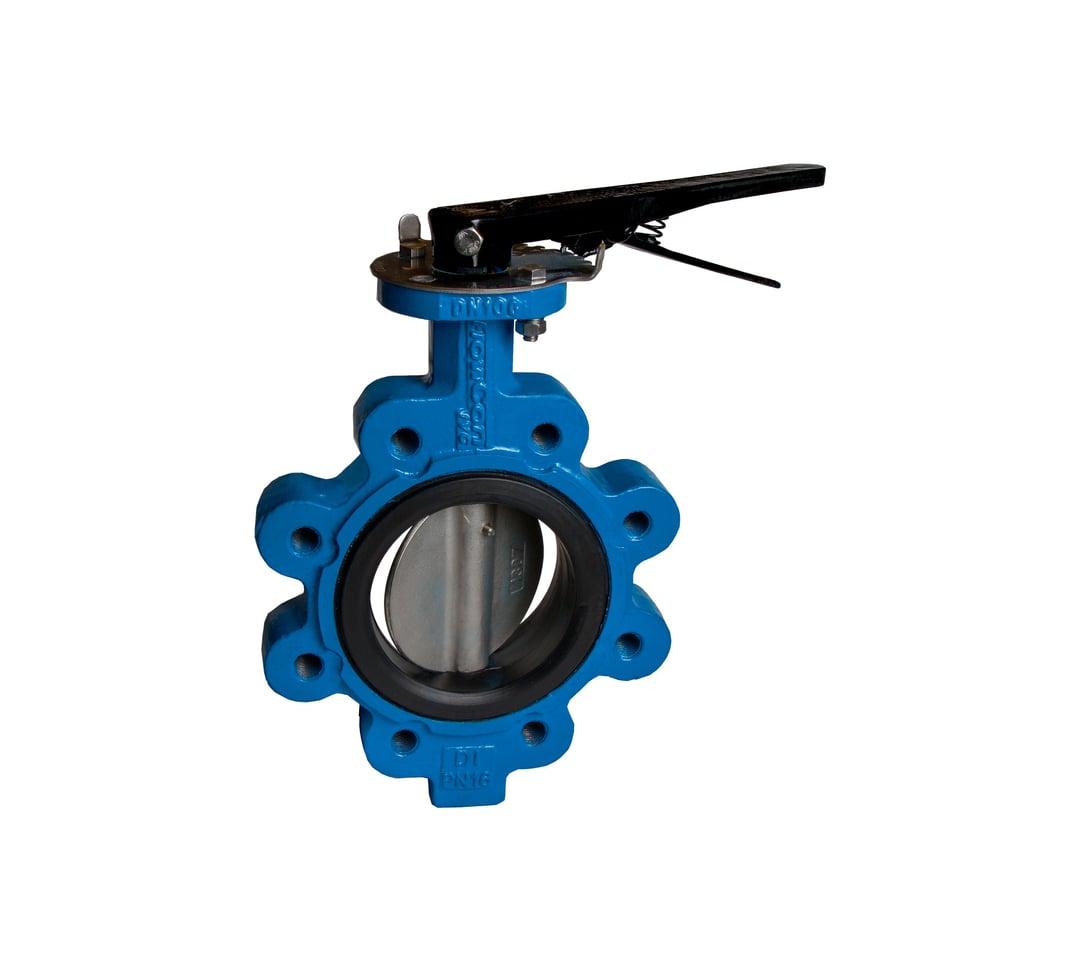

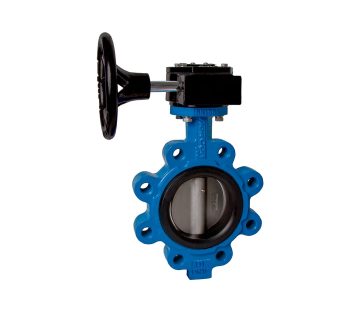

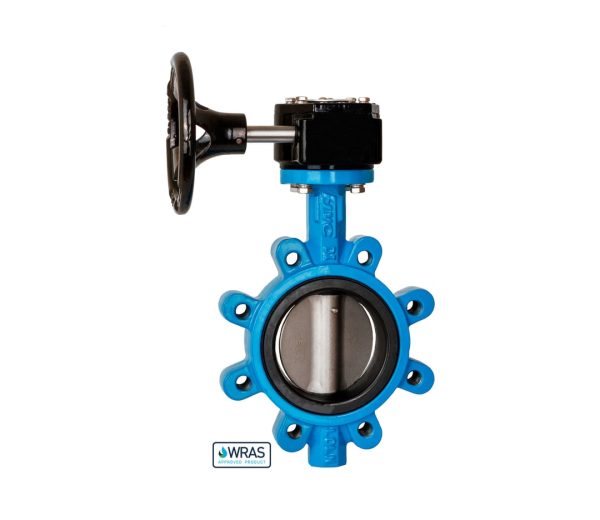

FIVC LUGGED BUTTERFLY VALVE
LUGN5_MDVEPR_1683 – Ductile Iron body – Stainless Steel disc – PN 16 – Lugged – Gearbox – Replaceable – w/Pin – WRAS – EN 1092-2
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- WRAS-approved
- Cost-efficient
- Small size and light in weight
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 410
Thread: Metric
Seat: Replaceable
Construction: With pin
External operator: Gearbox
Standard: BS EN 593
USP: WRAS-approval. Center service. Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Stainless Steel
Pin: Stainless Steel
Stem: Stainless Steel
Seat: Replaceable EPDM
Gearbox: Ductile Iron
Coating: Epoxy
FIELD OF APPLICATION
Temperature range: -15 to 85° C
Max. working pressure: 16 bar
Media: Drinking Water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
