FIVC LUGGED BUTTERFLY VALVE

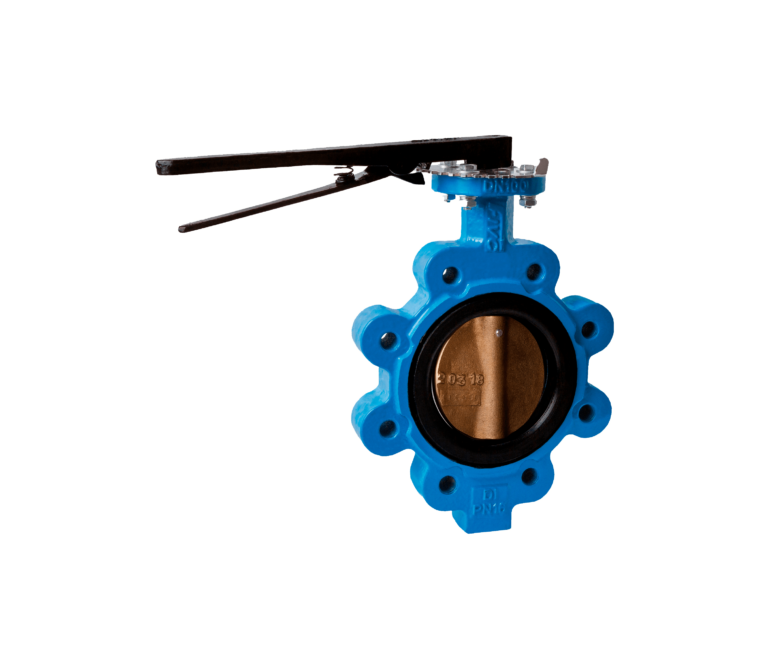

LUGN4_MNEPV_1623 – Ductile Iron body – Alu-Bronze disc – PN 16 – Lugged – Hand lever – Vulcanized – w/Pin – EN 1092-2
This valve is constructed with threaded lugs for the attachment of bolts to the pipeline flanges. Butterfly valves with lug-style flanges and vulcanized seats can be used for end-of-line services as well as center-services.
It operates through its robust and comfortable 15° notch hand lever that provides 7 to 10 lock positions.
This valve is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- Center-service
- Cost-efficient
- Small size and light in weight
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 16
Shaft: SS AISI 431
Thread: Metric
Seat: Vulcanized
Construction: With pin
External operator: 15o notch hand lever with 7-10 lock positions.
Standard: BS EN 593
Dimensions: Face-to-Face acc. to BS EN 558 (series 20)
Tests: Inspection test acc. to BS EN 12266-1
USP: Dead-end/center service. Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Alu-Bronze
Pin: Stainless Steel
Stem: Stainless Steel
Seat: Vulcanized EPDM
Hand lever: Malleable Iron
Coating: RAL 5015 (Thickness 250 microns)
FIELD OF APPLICATION
Temperature range: -15 to 120° C
Max. working pressure: 16 bar
Media: Water
