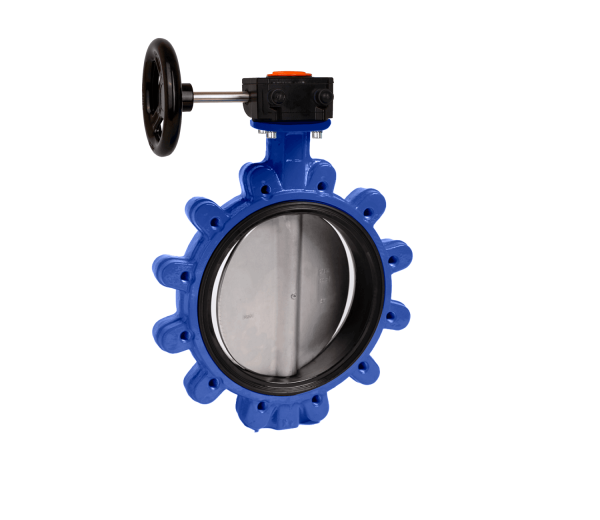

FIVC LUGGED BUTTERFLY VALVE
LUGN5_MDVENG_2509 – PN 25 – Lugged – Gearbox – Glued – Pinless – EN 1092-2
It operates through its high-quality gearbox providing comfortable and smooth flow-regulating and isolating.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent control performance with bubble-tightness
- Center-service
- Cost-efficient
- Small size and light in weight
- Small driving torque
- Easy operation, and fast-acting
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Regulating and isolating. Up to 90° turn movement.
Model: Lugged
Drilling: EN 1092-2 PN 25
Shaft: SS AISI 420/1.4542
Thread: Metric
Seat: Glued
Construction: Pinless
External operator: Gearbox
Standard: BS EN 593
Dimensions: Face-to-Face acc. to EN 558-1 (series 20)
Inspection test: BS EN 12266-1
USP: Dead-end service/Center service. Bubble-tight, cost-efficient, small size, light in weight, small driving torque, easy operation, and fast-acting.
MAIN MATERIALS
Body: Ductile Iron
Disc: Stainless Steel
Stem: Stainless Steel
Seat: Glued EPDM
Gearbox: Ductile Iron
Coating: Epoxy RAL 5015 (thickness 120 microns)
FIELD OF APPLICATION
Temperature range: -20 to 110° C
Max. working pressure: 25 bar
Media: Water
