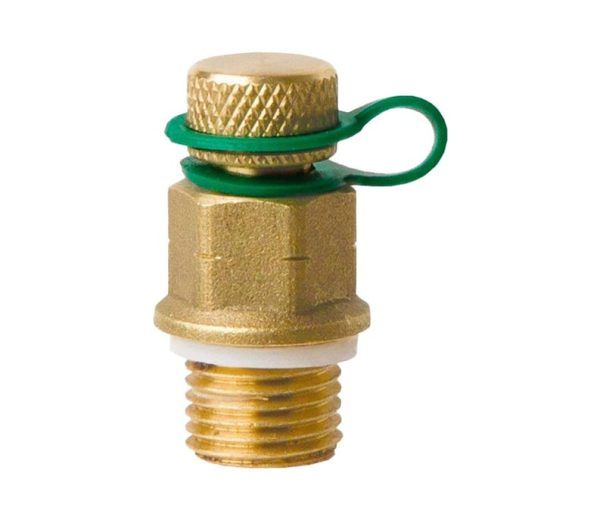

FIVC PT PLUG
FlowCon PT Plug – DZR Brass - 1/4”
The FIVC PT Plug is designed as a unit accessory for performing reliable and easy measurements of pressure and temperature heating and air conditioning systems.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Precision and reliability
- Data-driven Decision Making
- System integrity
- Ease of use
- Real-Time Monitoring
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Reliable and easy measurements of pressure and temperature.
Connection: Fixed male 1/4” ISO 228/1
USP: Valuable and essential tool for professionals in the HVAC industry.
MAIN MATERIALS
Body: DZR Brass
Cap: Brass EN 12164 CW617N
Internal gasket: EPDM
Body gasket; PTFE
Cap gasket: NBR
Ribbon: Polypropylene, green
FIELD OF APPLICATION
Pressure rating:
2500 kPa / 360 psi up to 100 °C (<212 °F)
2000 kPa / 290 psi above 100 °C (>212 °F)
Media temperature:
-10 °C to 130 °C/ 50 °F to 266 °F
DECLARATION
The product has been inspected and tested in accordance
with the Sound Engineering Practice SEP.
Acc. to the European PED Directive No 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
