FIVC BALL VALVE
FBA_O16_BC61 – Bronze – PN 16 – ISO 228
The FIVC Ball Valve is designed as a quarter-turn, full port valve for use in pipeline isolation.
This hose bibcock is suitable for water.
This hose bibcock is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent flow isolation
- Minimum friction loss
- Long lifespan
- Durable and reliable
- Cost- and maintenance efficient
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Manual operated ON/OFF by handle rotation
Threading: ISO 228
USP: Easy shut-off. Long lifetime.
MAIN MATERIALS
Body: Bronze
Stem: Brass Hpb57-3
Ball: Brass Hpb57-3
Seat: PTFE
Lever: Aluminium
Gland: NBR
FIELD OF APPLICATION
Max. temperature: -20 to 120° C
Max. working pressure: 10 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No.
2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).

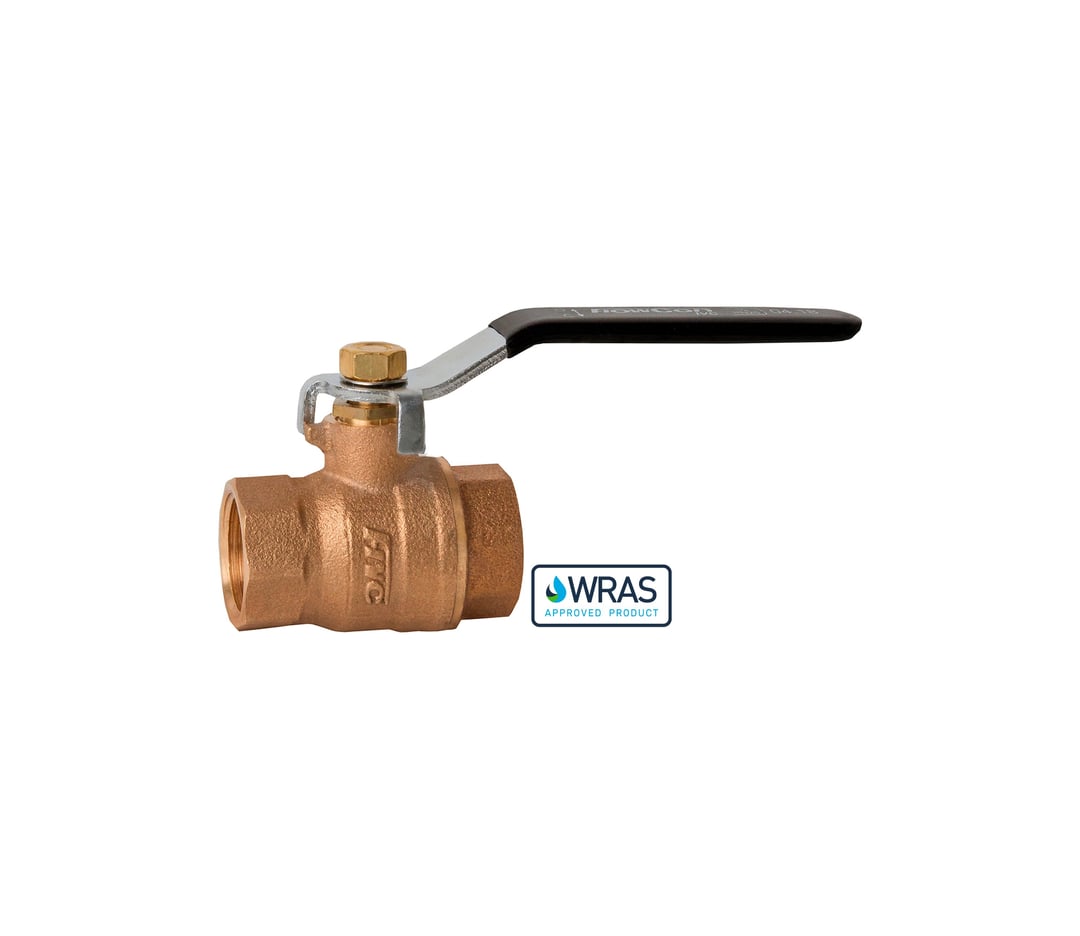

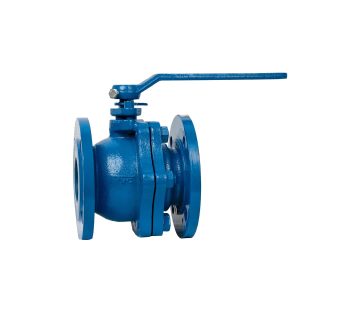

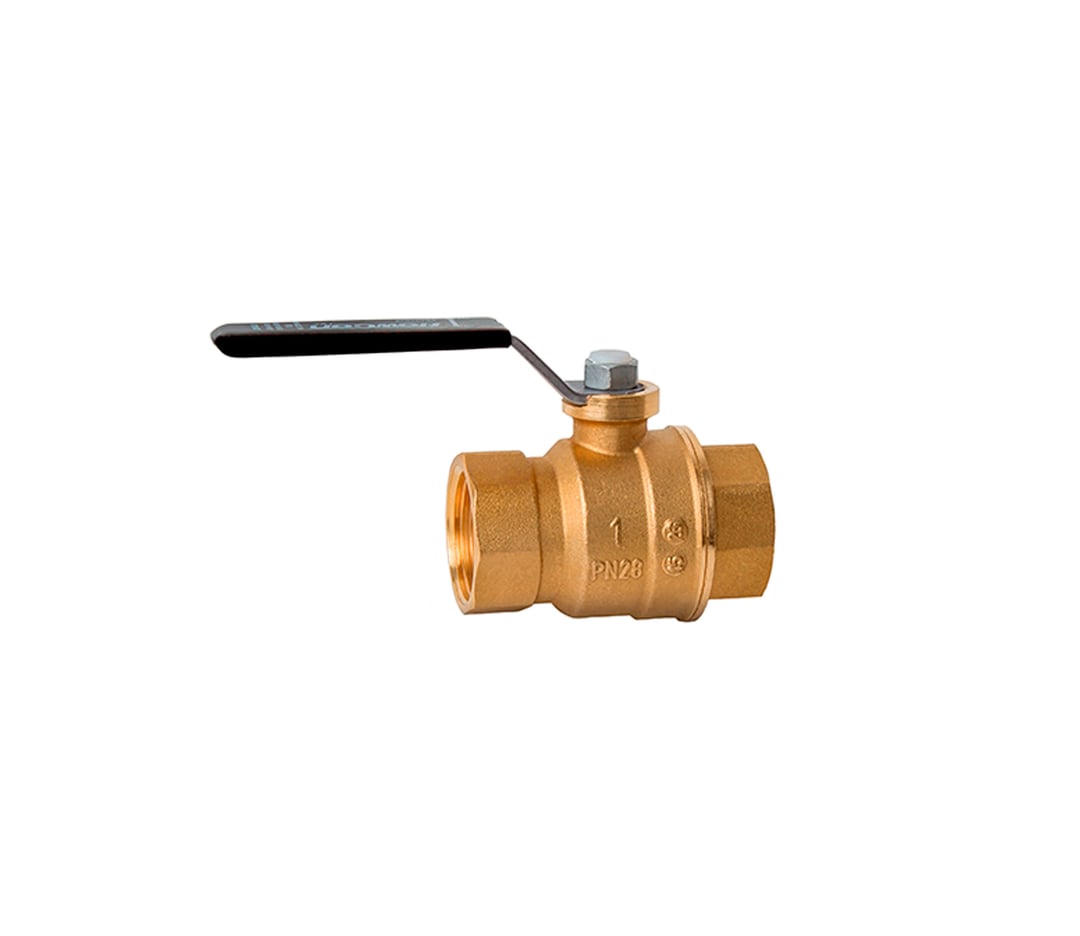

RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
For the complete product overview please refer to Products
