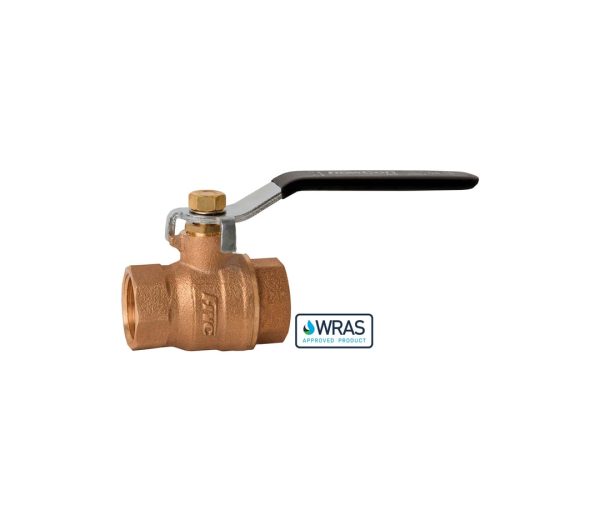

FIVC BALL VALVE
FBA_O25_F212012112 – Bronze – PN 25 – Full Port – WRAS – ISO 228
The FIVC Ball Valve is designed as a quarter-turn, full port valve for use in pipeline isolation.
This ball valve is suitable for Drinking Water, Oil, and Gas.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent flow isolation
- Minimum friction loss
- Long lifespan
- Durable and reliable
- Cost- and maintenance efficient
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Manual operated ON/OFF by handle rotation
Threading: ISO 228
USP: WRAS approved. Excellent and easy shut-off. Durable. Long lifetime.
MAIN MATERIALS
Body: Bronze CC491K
Gasket: Steel 65 Mn
Stem: Brass CW614N
Ball: Brass CuZn39Pb3
Lever handle: Mild Steel
Seat: PTFE
FIELD OF APPLICATION
Max. temperature: 170 °C
Max. working pressure: PN 25
Media: Drinking water, Oil, and Gas
DECLARATION
The product has been inspected and tested in accordance with the Sound Engineering Practice SEP. Acc. to the European PED Directive No 2014/68/EU, dated 15/05/2014, the product is exempted from CE marking (Cf. Art. 4.3).
RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request.
