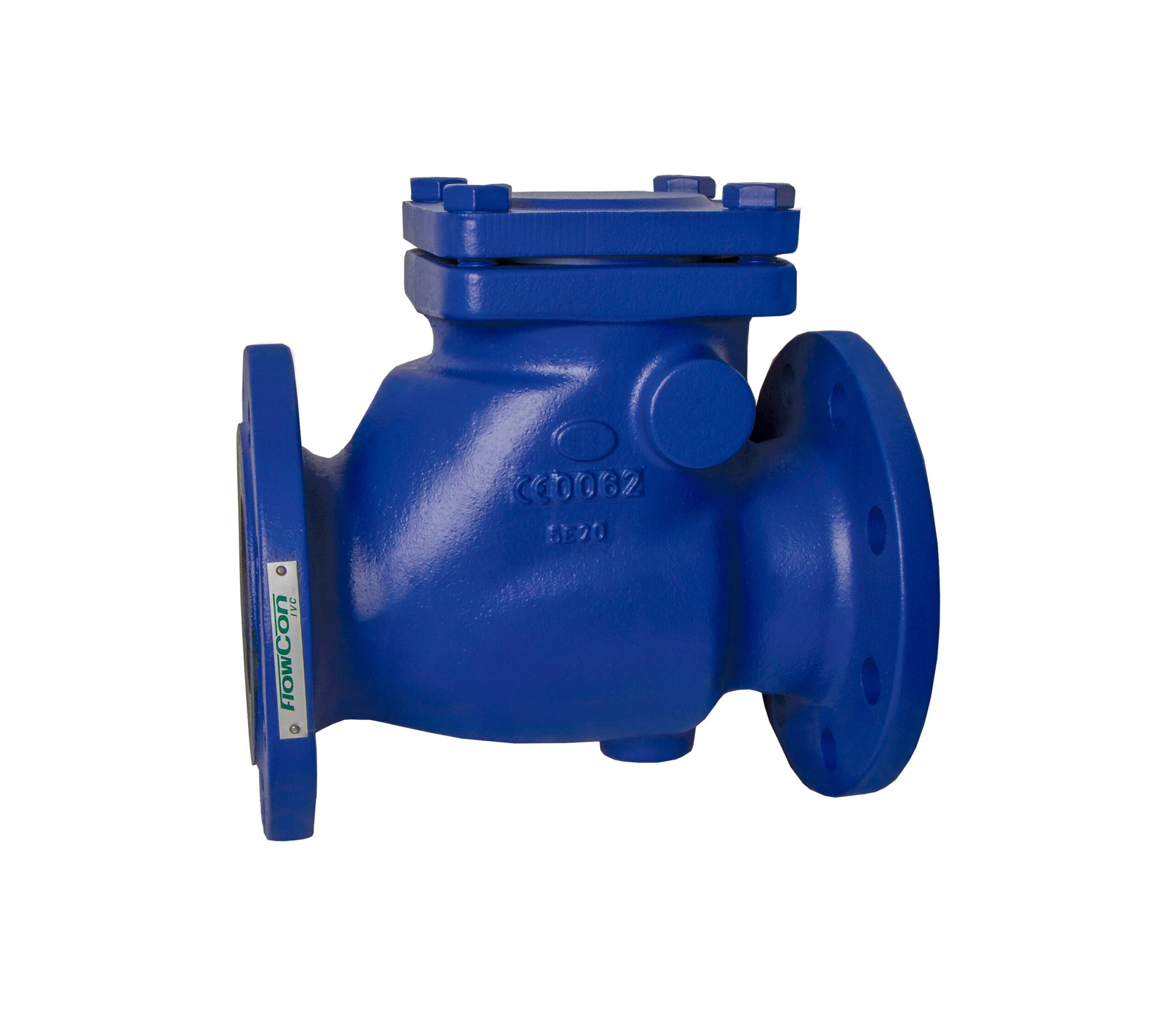

FIVC SWING CHECK VALVE
FCH_N16_CB221 – Ductile Iron – PN 16 – Swing – EN 1092-2
The FIVC Check Valve is designed to be installed in pipelines to eliminate the return of pressurized fluid.
The check valve is mainly used in heating/cooling or sanitary circuits.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent flow isolation
- WRAS-approved
- Minimum pressure loss
- Longer lifetime
- Slow operation; Prevents the water hammer phenomenon
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Self-actuating
Flange: EN 1092-2 PN 16. BS 4504
Dimensions: Face-to-Face acc. to BS 5153
(series 2), EN 558.1 (series 10)
Design: DIN 3356
Standard: BS EN 12334
Testing: EN 12266-1, Grade D
USP: Cost- and maintenance efficient
MAIN MATERIALS
Body: Ductile Iron GGG40
Bonnet: Ductile Iron GGG40
Disc: Ductile Iron GGG40
Hinge: Ductile Iron GGG40
Seat ring: Bronze ASTM B62
Gasket: PTFE Non Asbestos
FIELD OF APPLICATION
Temperature range: -10 to 230 °C
Max. working pressure: 16 bar
Media: Water, Oil, and Gas
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014, and is CE marked.
RELATED PRODUCTS
Size, material, approval, pressure rate, etc. are available upon request .
