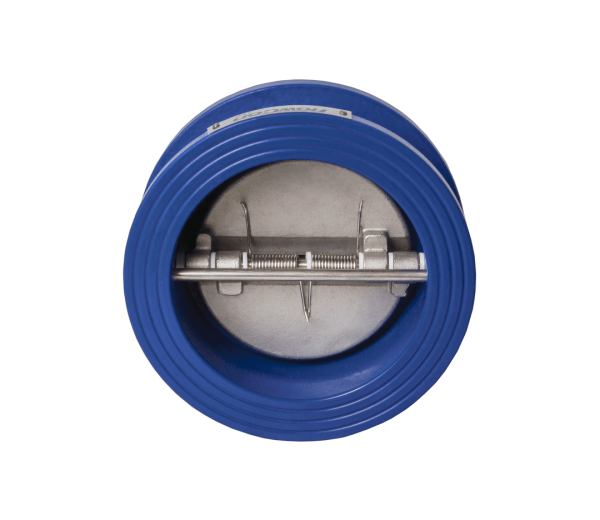

FIVC WAFER CHECK VALVE
FCH_C16_DP57 – Grey Cast Iron – PN 10/16 – Wafer –EN 1092-2
The FIVC Wafer or Dual Plate Check Valve is designed to be installed in pipelines to eliminate the return of pressurized fluid.
The check valve is mainly used in heating/cooling or sanitary circuits.
This check valve is suitable for water.
Function and benefits
In short terms
QUICK DATASHEET DOWNLOAD
- Excellent system protection
- Lower pressure losses
- Weight-lightness
- Cost-, maintenance-, and installation efficient
- Small space requirement
MAIN FEATURES AND MATERIALS
TECHNICAL SPECIFICATIONS
Feature: Self-actuating
Flange: EN 1092-2 PN 16
USP: Hygienic approval. Cost- and maintenance efficient
MAIN MATERIALS
Body: Grey Cast Iron
Disc: Stainless Steel
Spring: Stainless Steel
Seat: Stainless Steel
FIELD OF APPLICATION
Temperature range: -10 to 100 °C
Max. working pressure:
DN 50-200: 16 bar
DN 250-350: 10 bar
Media: Water
DECLARATION
The product has been inspected and tested in accordance with the European PED Directive No. 2014/68/EU, dated 15/05/2014.
WRAS-Approved.
